Riello (CSS CAM 3) 2.5kVA Central Power Supply - EN 50171 Compliant (1hr Runtime)
Riello CSS CAM 3 2.5kVA 230V Central Power Supply compliant with EN 50171 (1hr Runtime)
Call 0800 254 5655 for Lead Time
SKU:
CSSCAM3
MPN:
CSS CAM 3
£2,077.57£1,731.31

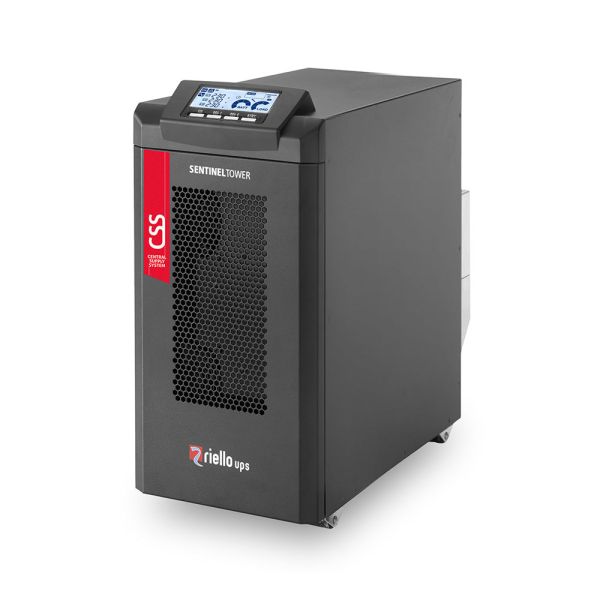

The CSS Sentinel Tower, available at UPSBuyer, epitomises resilience and compliance for UK businesses requiring dependable emergency power solutions. Meticulously crafted to support emergency lighting, security, and fire systems, it meets the rigorous EN 50171 standards for Central Power Supply Systems. Offering a streamlined tower design, the Sentinel Tower integrates seamlessly with your existing infrastructure, while its state-of-the-art battery management system ensures durable and long-lasting performance. Prioritise safety with the Sentinel Tower's advanced technology, promising unwavering operation and peace of mind during any power outage.
The CSS Sentinel Tower, available at UPSBuyer, epitomises resilience and compliance for UK businesses requiring dependable emergency power solutions. Meticulously crafted to support emergency lighting, security, and fire systems, it meets the rigorous EN 50171 standards for Central Power Supply Systems. Offering a streamlined tower design, the Sentinel Tower integrates seamlessly with your existing infrastructure, while its state-of-the-art battery management system ensures durable and long-lasting performance. Prioritise safety with the Sentinel Tower's advanced technology, promising unwavering operation and peace of mind during any power outage.
Features & Benefits
Model: CSS CAM 3
Unity power factor
Single-phase input, single-phase output
EN 50171 Compliant: Meets standards for emergency power systems.
Power Rating: 3kVA nominal, 2.5kVA for compliant runtime.
Design: Compact, ideal for emergency lighting and safety systems.
Efficiency: High charging current for fast recharge capabilities.
Dual Input: Ensures easy maintenance and testing procedures.
Dimensions: Space-efficient size, designed for easy integration.
230 V ±20% at full load (for wider tolerances additional conditions apply)
Frequency Tolerance
40 - 72 Hz
Power Factor
≥0.99
BY PASS
Rated Voltage
220 / 230 / 240 V single-phase + N
Voltage Tolerance
180 - 264 V (selectable)
Rated Frequency
50 / 60 Hz
Frequency Tolerance
±5% (selectable)
Number Phases
1 + N
OUTPUT & INVERTER OUTPUT
Rated Power
3000 VA
Active Power
3000 W
Power according with EN 50171
2500 VA / W
Output Voltage
220 / 230 / 240 V single-phase + N
Crest Factor (Ipeak/Irms)
3 : 1
Waveform
Sinusoidal
Frequency
50 / 60 Hz (selectable)
Voltage Distortion with Nonlinear Load
≤3%
Voltage Distortion with Linear Load
≤1%
BATTERIES
Type
VRLA - 10 YEARS expected lifespan
Built-in Batteries
No
Maximum Recharge Current
6 A
ENVIRONMENTAL
Color
Black RAL 9005
Communication
LCD display / slot for communication interface / USB / REPO / 1 programmable input / 4 output relays
Accessories Provided
USB cable
Surge Capability
1 VDR x 300 J
Protections
Overcurrent - short circuit - overvoltage - undervoltage - temperature - excessive low battery
Noise (at 1 m)
<48 dBA
Operating Temperature
0 °C - +40 °C
Relative Humidity
5-95% non-condensing
Output Sockets
Terminal block + 2 IEC 320 C13
Standards
EN50171 - European directives: LV 2014/35/EU, EMC 2014/30/EU; Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant. Classified in accordance with IEC 62040-3 VFI - SS - 111.
