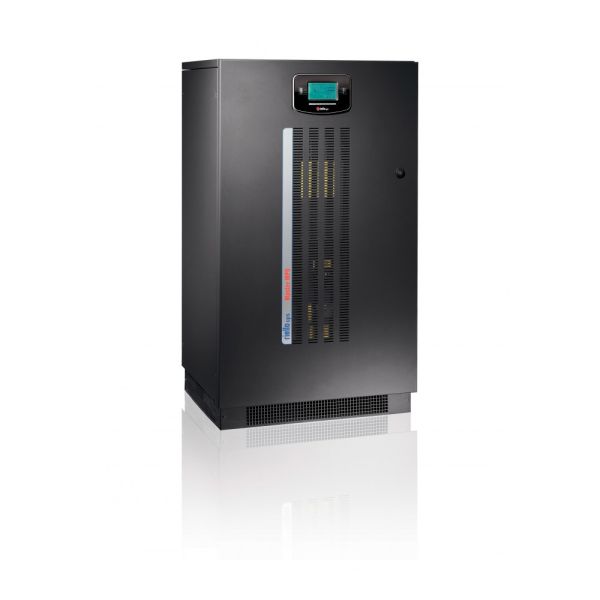

The Riello Master MPS series MPM UPS is designed to deliver top-tier power protection for critical applications where reliability is crucial. These three-phase input/single-phase output systems, ranging from 10-100kVA, are engineered to ensure continuous power supply and are highly adaptable to a wide range of needs. Their online double-conversion mode (VFI-SS-111 classification) offers robust voltage and frequency regulation, with advanced battery management systems that extend battery life and performance. Ideal for IT networks, telecommunications, and industrial applications, the MPM models are a testament to Riello's commitment to high-quality UPS solutions, offered through UPSBuyer with an assurance of performance and customer satisfaction.
| MPM 40 Specifications | ||
|---|---|---|
| INPUT | ||
| Voltage | 380 / 400 / 415 V three-phase | |
| Frequency | 45 - 65 Hz | |
| Frequency tolerance | ±2% (selectable from ±1% to ±5% from front panel) | |
| Soft start | 0 - 100% in 120 sec (selectable) | |
| Voltage Range | 400 V +20% -25% | |
| BY PASS | ||
| Rated voltage | 220 / 230 / 240 V single-phase + N | |
| Rated frequency | 50 or 60 Hz (selectable) | |
| OUTPUT and INVERTER OUTPUT | ||
| Rated power | 40000 VA | |
| Active power | 36000 W | |
| Output Voltage | 220 / 230 / 240 V single-phase + N (selectable) | |
| Crest factor (Ipeak/Irms) | 3 : 1 | |
| Static stability | ±1% | |
| Dynamic stability | ±5% in 10 ms | |
| Frequency | 50 or 60 Hz (selectable) | |
| Voltage distortion with non-linear load | <3% | |
| Voltage distortion with linear load | <1% | |
| Frequency stability | 0.05% | |
| Overload | 110% for 60 min.; 125% for 10 min.; 150% for 1 min. | |
| BATTERIES | ||
| Type | VRLA AGM / GEL; NiCd; Supercaps; Li-ion; Flywheels | |
| ENVIRONMENTAL | ||
| Color | Dark grey RAL 7016 | |
| Communication | Double RS232 + dry contacts + 2 slots for communications interface | |
| Protection rating | IP20 | |
| Line-Interactive/Smart Active efficiency | Up to 98% | |
| Noise (at 1 m) | 62 [dBA±2] (ECO Mode) | |
| Operating temperature | 0 °C - +40 °C | |
| Relative humidity | 5-95% non-condensing | |
| Standards | European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111 | |
| DATA | ||
| Weight | 302 kg | |
| Dimensions (h w d) | 1400x555x740 mm | |
Master MPS
10-200 kVA
Estimated delivery cost for Riello MPM 40 Master MPS 40kVA 400V Online UPS is £0.
