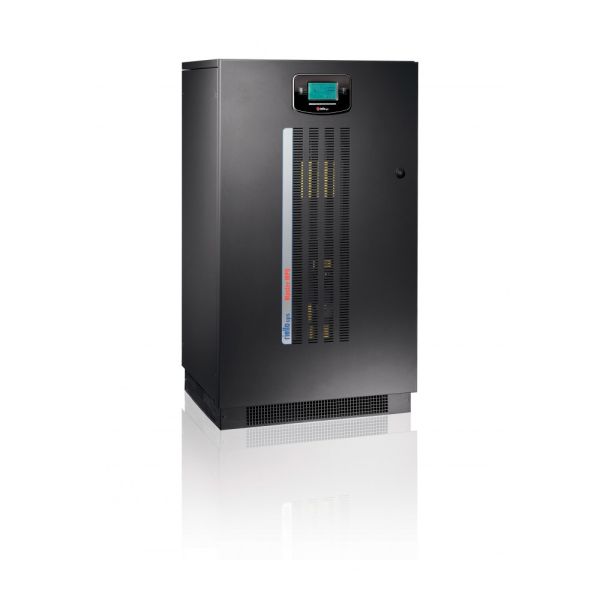

Riello MPT 20 HC Master MPS 20kVA 400V Online UPS with Harmonic Filter

Contact us for lead-time

Contact us for lead-time

SKU:
MPT20HC
MPN:
MPT 20 HC
Request Quote
The Riello Master MPS series MPT models are robust three-phase input/output UPS systems, covering a range of 10-200kVA, designed for larger and more demanding environments. These units offer outstanding power quality and protection for a wide array of applications, including data centres, industrial processes, and telecommunications. Each MPT UPS is built with scalability in mind, allowing for parallel systems that provide increased power or redundancy. Coupled with a high overload capability and flexible battery configuration, the Master MPS MPT models presented by UPSBuyer guarantee peace of mind with their exceptional reliability and advanced technology features.
Standard Delivery  (1 - 7 Days)

The Riello Master MPS series MPT models are robust three-phase input/output UPS systems, covering a range of 10-200kVA, designed for larger and more demanding environments. These units offer outstanding power quality and protection for a wide array of applications, including data centres, industrial processes, and telecommunications. Each MPT UPS is built with scalability in mind, allowing for parallel systems that provide increased power or redundancy. Coupled with a high overload capability and flexible battery configuration, the Master MPS MPT models presented by UPSBuyer guarantee peace of mind with their exceptional reliability and advanced technology features.

Features & Benefits

  • Optimised Energy Cleanliness: 20kVA / 18kW output paired with a harmonic filter to ensure clean power delivery and reduced electrical noise.
  • Designed for Peak Loads: Offers high overload capacity to maintain stability during sudden power spikes, protecting connected devices.
  • Scalable Power Solutions: Modular capabilities allow for future power expansion or extended battery runtimes as operational demands increase.
  • Reliable Cooling System: Incorporates a cooling system that ensures the UPS operates efficiently, even under heavy loads.
  • Straightforward Management Interface: An LCD display provides easy access to configurations, status, and alarms, keeping management simple and effective.

MPT 20 Specifications
INPUT
Voltage 380 / 400 / 415 V three-phase
Frequency 45 - 65 Hz
Frequency tolerance ±2% (selectable from ±1% to ±5% from front panel)
Soft start 0 - 100% in 120 sec. (selectable)
Voltage Range 400 V +20% - 25%
BY PASS
Rated voltage 380 / 400 / 415 V three-phase + N
Rated frequency 50 or 60 Hz (selectable)
OUTPUT and INVERTER OUTPUT
Rated power 20000 VA
Active power 18000 W
Output Voltage 380 / 400 / 415 V three-phase + N (selectable)
Crest factor (Ipeak/Irms) 3 : 1
Static stability ±1%
Dynamic stability ±5% in 10 ms
Frequency 50 or 60 Hz (selectable)
Voltage distortion with non-linear load <3%
Voltage distortion with linear load <1%
Frequency stability 0.05%
Overload 110% for 60 min.; 125% for 10 min.; 150% for 1 min.
BATTERIES
Type VRLA AGM / GEL; NiCd; Supercaps; Li-ion; Flywheels
ENVIRONMENTAL
Color Dark grey RAL 7016
Communication Double RS232 + dry contacts + 2 slots for communications interface
Protection rating IP20
Line-Interactive/Smart Active efficiency Up to 98%
Noise (at 1 m) 60 [dBA] (ECO Mode)
Operating temperature 0 °C - +40 °C
Relative humidity 5-95% non-condensing
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111
DATA
Weight 256 kg
Dimensions (h w d) 1400x555x740 mm

Master MPS
10-200 kVA
