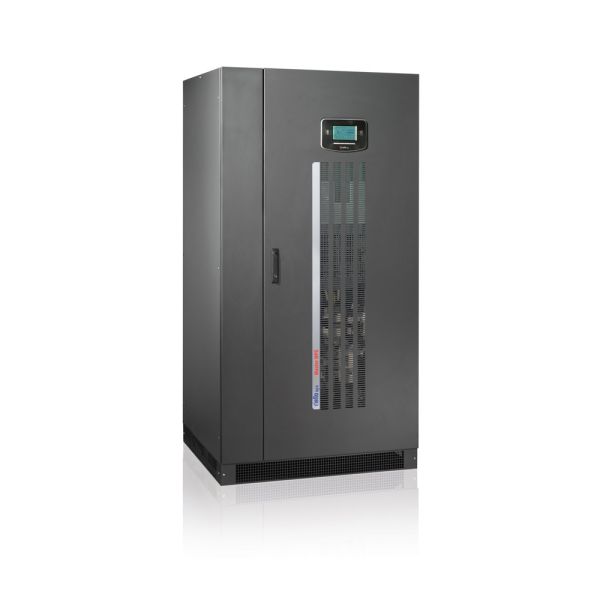

Riello MPT 160 Master MPS 160kVA 400V Online UPS

Available to Order

SKU:
MPT160
MPN:
MPT 160
Request Quote & Leadtime
The Riello Master MPS series MPT models are robust three-phase input/output UPS systems, covering a range of 10-200kVA, designed for larger and more demanding environments. These units offer outstanding power quality and protection for a wide array of applications, including data centres, industrial processes, and telecommunications. Each MPT UPS is built with scalability in mind, allowing for parallel systems that provide increased power or redundancy. Coupled with a high overload capability and flexible battery configuration, the Master MPS MPT models presented by UPSBuyer guarantee peace of mind with their exceptional reliability and advanced technology features.
Standard Delivery  (1 - 7 Days)

The Riello Master MPS series MPT models are robust three-phase input/output UPS systems, covering a range of 10-200kVA, designed for larger and more demanding environments. These units offer outstanding power quality and protection for a wide array of applications, including data centres, industrial processes, and telecommunications. Each MPT UPS is built with scalability in mind, allowing for parallel systems that provide increased power or redundancy. Coupled with a high overload capability and flexible battery configuration, the Master MPS MPT models presented by UPSBuyer guarantee peace of mind with their exceptional reliability and advanced technology features.

Features & Benefits

  • 160kVA / 144kW of Power Assurance: Serves extensive energy needs with high-capacity output, maintaining a 0.9 power factor for critical loads.
  • Uninterruptible Power Supply: Online double-conversion UPS offers the most reliable form of power protection available for critical applications.
  • Smart Space Utilisation: Offers significant power in a design that optimises space, suitable for varied working environments.
  • Full Remote Management: Outfitted with tools for remote supervision, ensuring easy control from anywhere.
  • Emergency Shutdown Function: Comes standard with an EPO interface, for when emergency situations necessitate an immediate power down.

MPT 160 Specifications
INPUT
Voltage 380 / 400 / 415 V three-phase
Frequency 45 - 65 Hz
Frequency tolerance ±2% (selectable from ±1% to ±5% from front panel)
Soft start 0 - 100% in 120 sec. (selectable)
Voltage Range 400 V +20% - 25%
BY PASS
Rated voltage 380 / 400 / 415 V three-phase + N
Rated frequency 50 or 60 Hz (selectable)
OUTPUT and INVERTER OUTPUT
Rated power 160000 VA
Active power 144000 W
Output Voltage 380 / 400 / 415 V three-phase + N (selectable)
Crest factor (Ipeak/Irms) 3 : 1
Static stability ±1%
Dynamic stability ±5% in 10 ms
Frequency 50 or 60 Hz (selectable)
Voltage distortion with non-linear load <3%
Voltage distortion with linear load <1%
Frequency stability 0.05%
Overload 110% for 60 min.; 125% for 10 min.; 150% for 1 min.
BATTERIES
Type VRLA AGM / GEL; NiCd; Supercaps; Li-ion; Flywheels
ENVIRONMENTAL
Color Dark grey RAL 7016
Communication Double RS232 + dry contacts + 2 slots for communications interface
Protection rating IP20
Line-Interactive/Smart Active efficiency Up to 98%
Noise (at 1 m) 68 [dBA] (ECO Mode)
Operating temperature 0 °C - +40 °C
Relative humidity 5-95% non-condensing
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111
DATA
Weight 700 kg
Dimensions (h w d) 1900x800x800 mm

Master MPS
10-200 kVA
