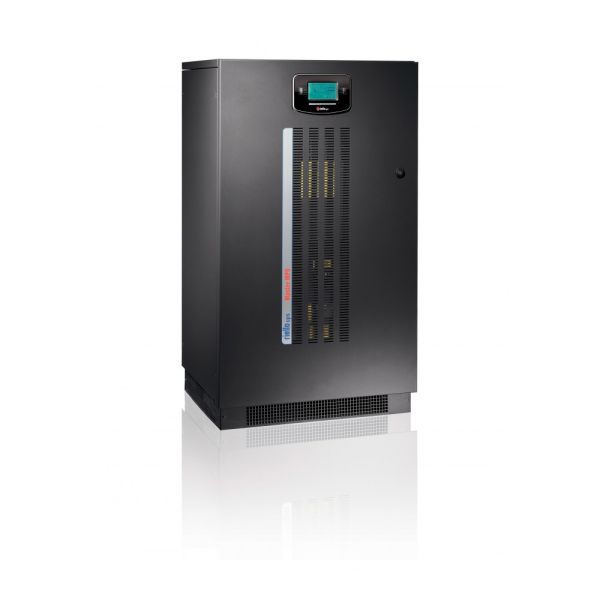

Riello MPT 15 Master MPS 15kVA 400V Online UPS

Available to Order

SKU:
MPT15
MPN:
MPT 15
Request Quote & Leadtime
The Riello Master MPS series MPT models are robust three-phase input/output UPS systems, covering a range of 10-200kVA, designed for larger and more demanding environments. These units offer outstanding power quality and protection for a wide array of applications, including data centres, industrial processes, and telecommunications. Each MPT UPS is built with scalability in mind, allowing for parallel systems that provide increased power or redundancy. Coupled with a high overload capability and flexible battery configuration, the Master MPS MPT models presented by UPSBuyer guarantee peace of mind with their exceptional reliability and advanced technology features.
Standard Delivery  (1 - 7 Days)

The Riello Master MPS series MPT models are robust three-phase input/output UPS systems, covering a range of 10-200kVA, designed for larger and more demanding environments. These units offer outstanding power quality and protection for a wide array of applications, including data centres, industrial processes, and telecommunications. Each MPT UPS is built with scalability in mind, allowing for parallel systems that provide increased power or redundancy. Coupled with a high overload capability and flexible battery configuration, the Master MPS MPT models presented by UPSBuyer guarantee peace of mind with their exceptional reliability and advanced technology features.

Features & Benefits

  • Reliable Power Supply: Boasts a 15kVA / 13.5kW capacity, making it a robust choice for medium-scale operational needs with a 0.9 power factor.
  • Double-Conversion Technology: Utilizes online double-conversion to provide the highest level of power quality and consistency.
  • Space-Conscious Design: Crafted to fit into diverse working environments, offering significant power without demanding a lot of room.
  • Remote Manageability: Features comprehensive network management for seamless remote supervision and control.
  • Emergency Readiness: Comes with an Emergency Power Off (EPO) function to instantly shut down the system when necessary.

MPT 15 Specifications
INPUT
Voltage 380 / 400 / 415 V three-phase
Frequency 45 - 65 Hz
Frequency tolerance ±2% (selectable from ±1% to ±5% from front panel)
Soft start 0 - 100% in 120 sec. (selectable)
Voltage Range 400 V +20% - 25%
BY PASS
Rated voltage 380 / 400 / 415 V three-phase + N
Rated frequency 50 or 60 Hz (selectable)
OUTPUT and INVERTER OUTPUT
Rated power 15000 VA
Active power 13500 W
Output Voltage 380 / 400 / 415 V three-phase + N (selectable)
Crest factor (Ipeak/Irms) 3 : 1
Static stability ±1%
Dynamic stability ±5% in 10 ms
Frequency 50 or 60 Hz (selectable)
Voltage distortion with non-linear load <3%
Voltage distortion with linear load <1%
Frequency stability 0.05%
Overload 110% for 60 min.; 125% for 10 min.; 150% for 1 min.
BATTERIES
Type VRLA AGM / GEL; NiCd; Supercaps; Li-ion; Flywheels
ENVIRONMENTAL
Color Dark grey RAL 7016
Communication Double RS232 + dry contacts + 2 slots for communications interface
EMC compliance European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111
Protection rating IP20
Line-Interactive/Smart Active efficiency Up to 98%
Noise (at 1 m) 60 [dBA] (ECO Mode)
Operating temperature 0 °C - +40 °C
Relative humidity 5-95% non-condensing
DATA
Weight 241 kg
Dimensions (h w d) 1400x555x740 mm

Master MPS
10-200 kVA
