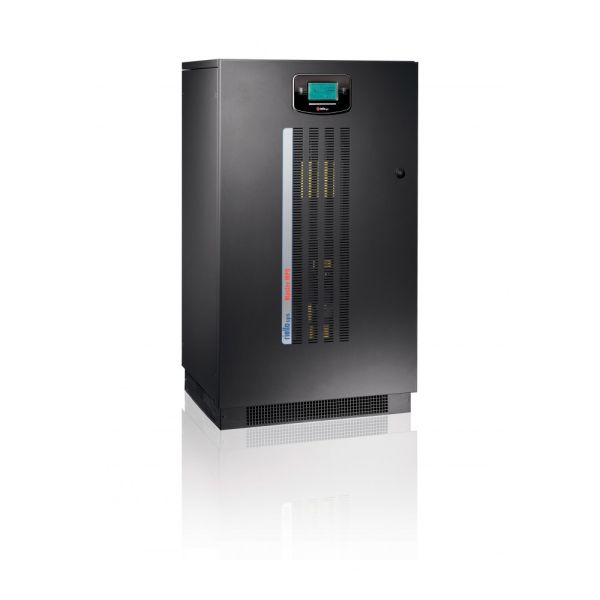

Riello MPM 15-M4 Master MPS 15kVA 400V Online UPS with 12 Minutes Runtime

Contact us for lead-time

Contact us for lead-time

SKU:
MPM15-M4
MPN:
MPM 15-M4
Request Quote
The Riello Master MPS series MPM UPS is designed to deliver top-tier power protection for critical applications where reliability is crucial. These three-phase input/single-phase output systems, ranging from 10-100kVA, are engineered to ensure continuous power supply and are highly adaptable to a wide range of needs. Their online double-conversion mode (VFI-SS-111 classification) offers robust voltage and frequency regulation, with advanced battery management systems that extend battery life and performance. Ideal for IT networks, telecommunications, and industrial applications, the MPM models are a testament to Riello's commitment to high-quality UPS solutions, offered through UPSBuyer with an assurance of performance and customer satisfaction.
Standard Delivery  (1 - 7 Days)

The Riello Master MPS series MPM UPS is designed to deliver top-tier power protection for critical applications where reliability is crucial. These three-phase input/single-phase output systems, ranging from 10-100kVA, are engineered to ensure continuous power supply and are highly adaptable to a wide range of needs. Their online double-conversion mode (VFI-SS-111 classification) offers robust voltage and frequency regulation, with advanced battery management systems that extend battery life and performance. Ideal for IT networks, telecommunications, and industrial applications, the MPM models are a testament to Riello's commitment to high-quality UPS solutions, offered through UPSBuyer with an assurance of performance and customer satisfaction.

Features & Benefits

  • Sustained Power Assurance: Offers 15kVA / 13.5kW rating at a 0.9 power factor with 12 minutes of runtime at full load for extended support.
  • Eco Mode for Reduced Costs: Energy-efficient operation with an Eco Mode that enhances savings without compromising on power quality.
  • Dual Input Convenience: Allows for dual input feeds, adding an extra layer of redundancy to keep essential systems running without interruption.
  • Customisable Load Segments: Programmable outlet segments enable priority setting for critical loads and manage power distribution effectively.
  • Parallel Ready Configuration: Prepared for parallel operation to increase total capacity or redundancy, fortifying power reliability for business-critical operations.

MPM 15 Specifications
INPUT
Voltage 380 / 400 / 415 V three-phase
Frequency 45 - 65 Hz
Frequency tolerance ±2% (selectable from ±1% to ±5% from front panel)
Soft start 0 - 100% in 120 sec (selectable)
Voltage Range 400 V +20% -25%
BY PASS
Rated voltage 220 / 230 / 240 V single-phase + N
Rated frequency 50 or 60 Hz (selectable)
OUTPUT and INVERTER OUTPUT
Rated power 15000 VA
Active power 13500 W
Output Voltage 220 / 230 / 240 V single-phase + N (selectable)
Crest factor (Ipeak/Irms) 3 : 1
Static stability ±1%
Dynamic stability ±5% in 10 ms
Frequency 50 or 60 Hz (selectable)
Voltage distortion with non-linear load <3%
Voltage distortion with linear load <1%
Frequency stability 0.05%
Overload 110% for 60 min.; 125% for 10 min.; 150% for 1 min.
BATTERIES
Type VRLA AGM / GEL; NiCd; Supercaps; Li-ion; Flywheels
ENVIRONMENTAL
Color Dark grey RAL 7016
Communication Double RS232 + dry contacts + 2 slots for communications interface
Protection rating IP20
Line-Interactive/Smart Active efficiency Up to 98%
Noise (at 1 m) 60 [dBA±2] (ECO Mode)
Operating temperature 0 °C - +40 °C
Relative humidity 5-95% non-condensing
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111
DATA
Weight 220 kg
Dimensions (h w d) 1400x555x740 mm

Master MPS
10-200 kVA
