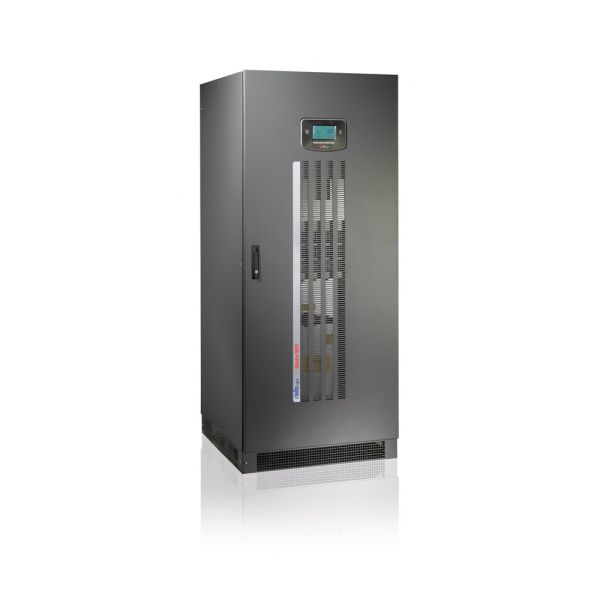

The Riello Master MPS series MPT models are robust three-phase input/output UPS systems, covering a range of 10-200kVA, designed for larger and more demanding environments. These units offer outstanding power quality and protection for a wide array of applications, including data centres, industrial processes, and telecommunications. Each MPT UPS is built with scalability in mind, allowing for parallel systems that provide increased power or redundancy. Coupled with a high overload capability and flexible battery configuration, the Master MPS MPT models presented by UPSBuyer guarantee peace of mind with their exceptional reliability and advanced technology features.
| MPT 120 Specifications | ||
|---|---|---|
| INPUT | ||
| Voltage | 380 / 400 / 415 V three-phase | |
| Frequency | 45 - 65 Hz | |
| Frequency tolerance | ±2% (selectable from ±1% to ±5% from front panel) | |
| Soft start | 0 - 100% in 120 sec. (selectable) | |
| Voltage Range | 400 V +20% - 25% | |
| BY PASS | ||
| Rated voltage | 380 / 400 / 415 V three-phase + N | |
| Rated frequency | 50 or 60 Hz (selectable) | |
| OUTPUT and INVERTER OUTPUT | ||
| Rated power | 120000 VA | |
| Active power | 108000 W | |
| Output Voltage | 380 / 400 / 415 V three-phase + N (selectable) | |
| Crest factor (Ipeak/Irms) | 3 : 1 | |
| Static stability | ±1% | |
| Dynamic stability | ±5% in 10 ms | |
| Frequency | 50 or 60 Hz (selectable) | |
| Voltage distortion with non-linear load | <3% | |
| Voltage distortion with linear load | <1% | |
| Frequency stability | 0.05% | |
| Overload | 110% for 60 min.; 125% for 10 min.; 150% for 1 min. | |
| BATTERIES | ||
| Type | VRLA AGM / GEL; NiCd; Supercaps; Li-ion; Flywheels | |
| ENVIRONMENTAL | ||
| Color | Dark grey RAL 7016 | |
| Communication | Double RS232 + dry contacts + 2 slots for communications interface | |
| Protection rating | IP20 | |
| Line-Interactive/Smart Active efficiency | Up to 98% | |
| Noise (at 1 m) | 68 [dBA] (ECO Mode) | |
| Operating temperature | 0 °C - +40 °C | |
| Relative humidity | 5-95% non-condensing | |
| Standards | European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111 | |
| DATA | ||
| Weight | 640 kg | |
| Dimensions (h w d) | 1900x800x800 mm | |
Master MPS
10-200 kVA
