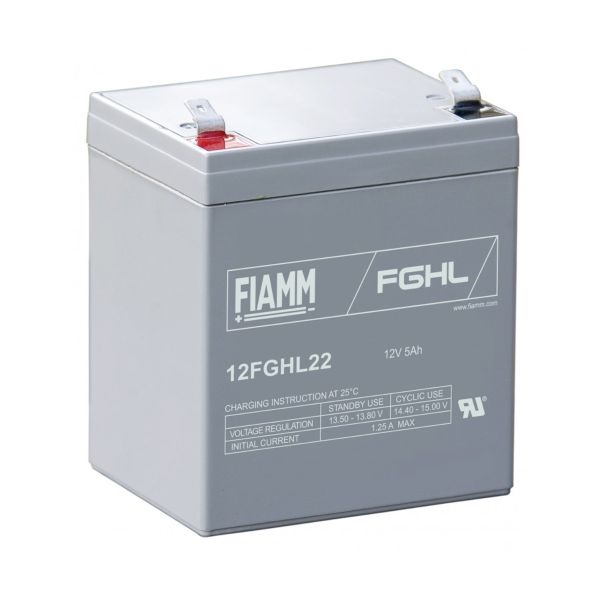

FIAMM 12FGHL22 Long-Life High-Rate Performance (10-Year) VRLA Battery (12V 5Ah)

The FIAMM 12FGHL22 is a 12 V, 5 Ah long‑life high‑rate VRLA AGM battery engineered for up to 10 years float service life per Eurobat standards. Designed for UK B2B critical power systems—UPS, emergency lighting, alarm panels, telecom and data centres—it delivers maintenance‑free, non‑spillable power with 99 % gas recombination and low self‑discharge (<2 % per month). With Faston 6.3 mm terminals supporting high discharge currents (up to 75 A for 5 secs) and robust ABS UL94 V‑0 case, manufacturers can rely on consistent performance. UPSBuyer stocks FGHL22 across the UK, offering full warranty and expert technical support.

Features & Benefits

• 10‑year float design: Extended service life with reduced replacement frequency.
• High‑rate performance: Handles peak discharge up to 75 A (5 s).
• Sealed VRLA AGM: Maintenance‑free and safe for any orientation.
• 99 % gas recombination: Preserves electrolyte and extends lifespan.
• Low self‑discharge: Retains capacity (<2 %/month), ensuring readiness.
• Faston 6.3 mm terminals: Ideal for secure, high-current connections.
• Robust flame-retardant case: ABS UL94 V‑0 housing adds safety and durability.
• UPSBuyer UK support: Nationwide delivery, full warranty, and technical assistance.

Technical Specifications

• Model: 12FGHL22
• Voltage: 12 V
• Capacity: 5 Ah (20 h rate to 1.75 Vpc at 25 °C)
• Design Life: 10 years float operation
• Dimensions (L×W×H): 90x70x101mm
• Terminal Height: 107mm
• Weight: 1.9kg
• Terminal Type: Faston 6.3
• Internal Resistance: 37 mΩ (fully charged)
• Max Discharge: 75 A for 5 s
• Float Charge Voltage: 13.50–13.80 V/block at 25 °C
• Boost Charge Voltage: 14.40–15.00 V/block at 25 °C
• Operating Temp Range: –20 °C to +50 °C
• Self‑discharge: <2 % per month
• Certifications: IEC 60896‑21/22, BS 6290‑4, UL recognised
