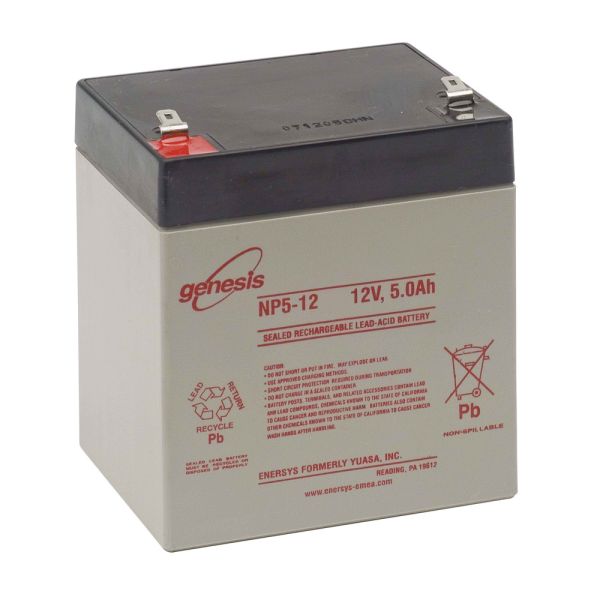

EnerSys Genesis NP5-12FR (12V 5Ah) General Use AGM VRLA Battery

Introducing the EnerSys Genesis NP battery range - the reliable, virtually maintenance-free power solution for standby (float) applications. These rechargeable sealed lead-acid batteries feature heavy-duty, thick lead calcium grids for dependable performance that lasts for years.

Ensuring maximum dependability and leak-proof functioning, Genesis NP batteries are totally sealed, eliminating the need for any watering. The high-energy-density construction, with its built-in low-pressure relief valve, guarantees that any pressure build-up is vented within the case, giving it an internal recombination rate that's unrivalled.

Operating over a broad range of ambient temperatures, Genesis NP batteries can recover after repeated deep discharges. And with a life expectancy of three to five years in float service applications, you can trust these batteries will provide reliable power when most required.

Other features and benefits of the EnerSys Genesis NP battery range include its wide capacity range, heavy-duty grids that maximise life, and a sealed design that requires minimal maintenance. You can vary the positioning of these batteries other than inverted, providing them with a high level of versatility for multiple purposes.

Experience reliable, virtually maintenance-free standby power with the EnerSys Genesis NP battery range. Order yours today and enjoy a dependable, long-lasting performance for years to come.

Features & Benefits

• Voltage: 12V
• Capacity: 5Ah
• Dimensions LxWxH: 90x70x107mm
• Layout: 1 (See Diagram)
• Terminals A/C (See Diagrams): Faston Tab: 187 (F1) / “T” Faston Tab: 250 (F2)
• Flame retardant
• High energy density
• Wide capacity range
• Sealed design; low maintenance and no watering required
• Heavy duty grids maximize life
• 3 to 5 year life expectancy
• Suitable for a wide range of applications

Construction

• Heavy duty thick lead-calcium grids
• Sealed case for leak-proof operation
• Designed to promote internal recombination for longer life
• Integral pressure relief valve which is self-resealing
• Flame retardant UL94-V0 case and cover available

Installation & Operation

• Space efficient footprint
• Compact, quick and simple installation process
• Three to five year life expectancy in float applications at 25°C ambient temperature
• Low maintenance - no watering required
• Wide operating temperature range: -15°C to 50°C.
• Recommended temperature: 20°C to 30°C

Standards

• UL Recognised component (UL File No. MH16464 & MH15740)
• Classified as non-spillable battery and approved as non-hazardous cargo for land, sea and air transportation in accordance with the requirements of ADR / RID, IMDG and IATA respectively
• Designed to be compliant with IEC 61056-1 and 60896-21/22
• The management systems governing the manufacture of Genesis NP products are ISO 9001:2008 and ISO 14001:2004 certified

Please Note: Images are for illustrative purposes only.
