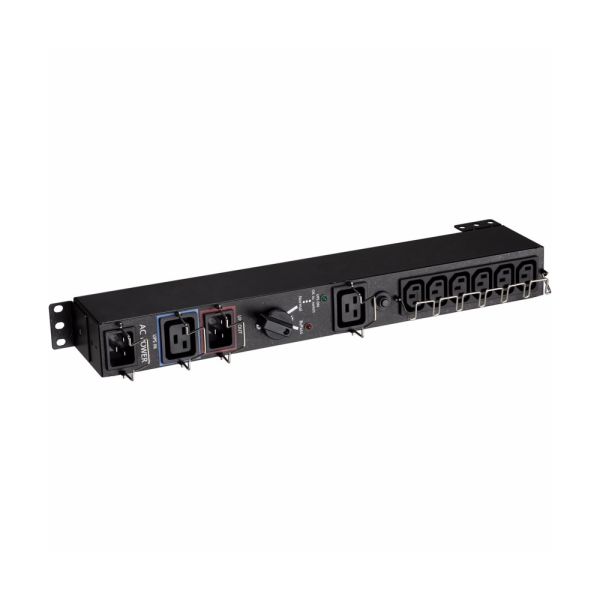

The Eaton HotSwap MBP series is made up of modular, adaptable PDUs that increase the availability of UPSs up to 3000VA.
The Eaton HotSwap MBP series is made up of modular, adaptable PDUs that increase the availability of UPSs up to 3000VA. Any UPS connected to a HotSwap MBP can be swapped for maintenance or upgrades without disrupting power to the protected devices. They can be screwed on at the back of a UPS, either front-facing or rear-facing, on the left or right-hand side, for maximum adaptability.
Features & Benefits:
| General Specifications | |
|---|---|
| Product Name | Eaton HotSwap MBP maintenance bypass |
| Catalog Number | MBP3KI |
| EAN | 3553340684227 |
| Product Length/Depth | 76.5 mm |
| Product Height | 50 mm |
| Product Width | 439 mm |
| Product Weight | 1.9 kg |
| Warranty | 2 year |
| Compliances | CE Marked |
| Certifications | CE |
| Model Code | Eaton HotSwap MBP IEC |
| Product Specifications | |
| Number of Outputs C13 | 6 |
| Phase | Single-phase |
| Electrical connection | Socket outlet |
| Mounting dimension (standardized) | 482.6 mm (19 inch) |
| Form factor | 1U |
| Mounting direction | Horizontal/vertical |
| Package contents | Maintenance Bypass, Cable locking system, Connection cable to the UPS, Rack-mounting kit, User manual |
| Input connection | C20 |
| Fitted with: | LED indication, Mounting material |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Ethernet interface | No |
| Number of outlets with earth pin | 7 |
| Mass configuration | No |
| Communication | No |
| Number of Outputs C19 | 1 |
| Outlet control | No |
| Switchable | No |
| Input voltage | 200-240V |
| Color | Black |
| SNMP | No |
| Over voltage category | 2 |
| Outlets | (6) C13, (1) C19 |
| Type | Hotswap MBP |
| VA rating | 3000 VA |
| Serial interface | No |
| Mounting Dimension (metrical) | 50 |
