The Eaton HotSwap Maintenance Bypass improves availability by making sure that service keeps going no matter what. The HotSwap MBP makes it easy to replace the batteries without taking the UPS out of the rack. This makes it great for maintenance and upgrades. Get the utmost peace of mind knowing that high availability and critical operations will never be put at risk when batteries are changed or other upgrades are made.
Features & Benefits:
General specifications |
|
|---|---|

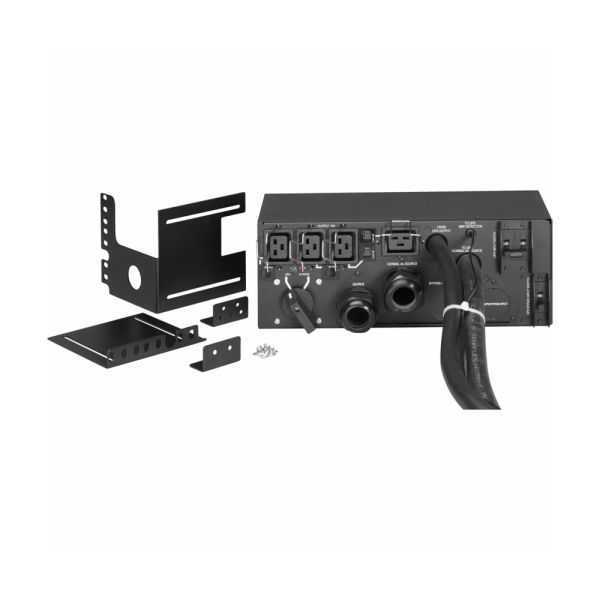

| Product Name | Eaton HotSwap MBP maintenance bypass |
| Catalog Number | MBP11KI31 |
| Model Code | Eaton HotSwap MBP 11000i 3:1 |
| UPC | 743172040169 |
| Product Length/Depth | 185 mm |
| Product Height | 270 mm |
| Product Width | 410 mm |
| Product Weight | 5.96 kg |
| Compliances | CE Marked |
| Certifications | CE |
| Model Code | Eaton HotSwap MBP 11000i 3:1 |
Product specifications |
|
| Phase | Three-phase |
| Electrical connection | Screwed terminal |
| Mounting dimension (standardized) | 482.6 mm (19 inch) |
| Form factor | 3U |
| Mounting direction | Horizontal |
| Package contents | Maintenance Bypass Cable locking system Rack-mounting kit User manual |
| Input connection | Other |
| Number of outputs hardwired | 1 |
| Fitted with: | Mounting material LED indication |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Ethernet interface | No |
| Number of outlets with earth pin | 4 |
| Mass configuration | No |
| Communication | No |
| Number of Outputs C19 | 4 |
| Outlet control | No |
| Switchable | No |
| Input voltage | 346-415V |
| Color | Black |
| SNMP | No |
| Over voltage category | 2 |
| Outlets | (4) C19, Hardwired |
| Type | Hotswap MBP |
| VA rating | 11000 VA |
| Serial interface | No |
| Mounting Dimension (metrical) | 270 |
Estimated delivery cost for Eaton MBP11KI31 HotSwap 11kVA 3:1 MBP Maintenance Bypass is £0.
