Discontinued
Eaton has a wide range of power distribution units, or PDUs. These range from simple rack mount models for IT networks that are spread out to complex models that can be used in enterprise and co-location data centres for a lot of monitoring and control.
Features & Benefits:
General specifications |
|
|---|---|

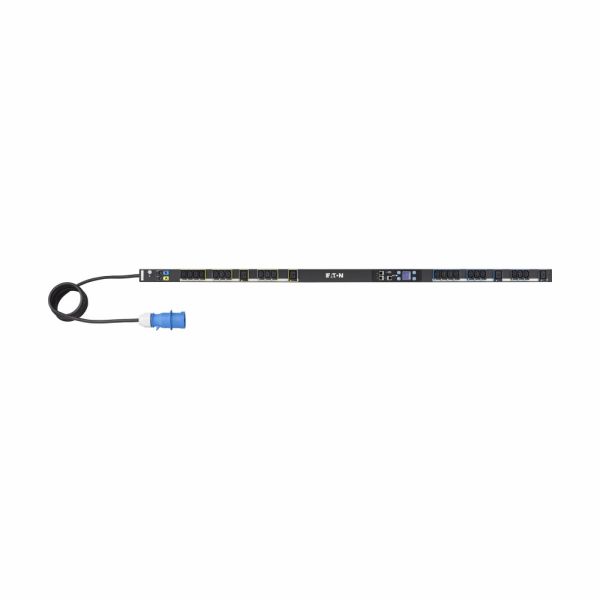

| Product Name | Eaton Metered Outlet Rack PDU |
| Catalog Number | EMOB05 |
| Model Code | EPDU MO 0U (309 32A 1P)20XC13:4XC19 |
| EAN | 3553340698033 |
| Product Length/Depth | 1604 mm |
| Product Height | 52 mm |
| Product Width | 53 mm |
| Product Weight | 4.8 kg |
| Warranty | 2 year |
| Compliances | RoHS Compliant EAC CE Marked |
| Certifications | IEC 60950-1 IEC 61000-6-2 IEC 61000-6-4 |
| Model Code | EPDU MO 0U (309 32A 1P)20XC13:4XC19 |
Product specifications |
|
| Number of Outputs C13 | 20 |
| Phase | Single-phase |
| Electrical connection | Connecting cord with plug |
| Mounting dimension (standardized) | Metric |
| Wattage | 7.4 kW max |
| Form factor | 0U (Vertical) |
| Mounting direction | Vertical |
| Amperage Rating | 32AA |
| Package contents | Rack PDU Mounting accessories Network cable Configuration cable Splitter for daisy-chaining Quickstart guide Safety Instructions |
| Input connection | IEC-60309 32A 1Ph |
| Fitted with: | Mounting material Ampere Meter Display |
| Frequency rating | 50/60 Hz |
| Evaluation | At distance |
| Operating Temperature | 0° to 60°C (32° to 140°F) |
| Ethernet interface | Yes |
| Number of outlets with earth pin | 24 |
| Circuit breaker | (2) single-pole |
| Mass configuration | Yes |
| Communication | HTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS |
| Special features | Phase Metering, Circuit Breaker Current Metering and Input Metering Circuit Breaker Status Monitoring Level 3 PUE measurements Hot-Swap Control module with advanced LCD Optional Temperature/Humidity sensor Built-in IEC outlet eGrip retention, retains all standard IEC plugs Built-in outlet P-lock system, locking mechanism with P-lock power cords Daisy-Chain up to 8 PDUs, reduce network infratsructure costs Outlet and IT Equipment Metering across A and B feed (Daisy-Chain) Power chain monitoring & Real time Intelligence on your Data Center, via Eaton Intelligent Power Manager 60°C Operating temperature |
| Number of Outputs C19 | 4 |
| Outlet control | No |
| Switchable | No |
| Cord length | 3m |
| Input voltage | 200-240V |
| Color | Black |
| SNMP | Yes |
| Material | Aluminium |
| Over voltage category | 2 |
| Outlets | (20) C13, (4) C19 |
| Type | Rack PDU |
| Serial interface | Yes |
| Mounting Dimension (metrical) | 52 |
