Eaton has a wide range of power distribution units, or PDUs. These range from simple rack mount models for IT networks that are spread out to complex models that can be used in enterprise and co-location data centres for a lot of monitoring and control.
Features & Benefits:
General specifications |
|
|---|---|

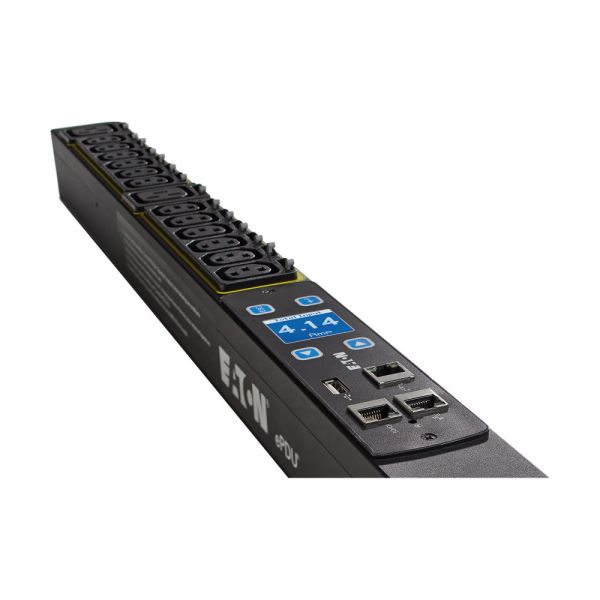

| Product Name | Eaton metered input rack PDU |
| Catalog Number | EMIB20 |
| Model Code | EPDU MI 0U (309 16A 3P)21XC13:3XC19 |
| EAN | 3553340696299 |
| Product Length/Depth | 1066 mm |
| Product Height | 52 mm |
| Product Width | 53 mm |
| Product Weight | 3 kg |
| Warranty | 2 year |
| Compliances | CE Marked RoHS Compliant EAC |
| Certifications | CE IEC 60950-1 EN 55024:2010 |
| Model Code | EPDU MI 0U (309 16A 3P)21XC13:3XC19 |
Product specifications |
|
| Number of Outputs C13 | 21 |
| Phase | Three-phase |
| Electrical connection | Connecting cord with plug |
| Mounting dimension (standardized) | Metric |
| Wattage | 11 kW max |
| Form factor | 0U (Vertical) |
| Mounting direction | Vertical |
| Amperage Rating | 16A |
| Package contents | Rack PDU Mounting accessories Network cable Configuration cable Splitter for daisy-chaining Quickstart guide Safety Instructions |
| Input connection | IEC-60309 16A 3ph |
| Fitted with: | Display Ampere Meter Mounting material |
| Frequency rating | 50/60 Hz |
| Operating Temperature | 0° to 60°C (32° to 140°F) |
| Ethernet interface | Yes |
| Number of outlets with earth pin | 24 |
| Mass configuration | Yes |
| Communication | HTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS |
| Special features | Phase Metering, Circuit Breaker Current Metering and Input Metering Hot-Swap Control module with advanced LCD Optional Temperature/Humidity sensor Built-in IEC outlet eGrip retention, retains all standard IEC plugs Built-in outlet P-lock system, locking mechanism with P-lock power cords Daisy-Chain up to 8 PDUs, reduce network infratsructure costs Power chain monitoring & Real time Intelligence on your Data Center, via Eaton Intelligent Power Manager 60°C Operating temperature Colour-coded outlet and branch circuits for simple load balancing Hydraulic–Magnetic Circuit Breakers with accidental trip protection |
| Number of Outputs C19 | 3 |
| Outlet control | No |
| Switchable | No |
| Cord length | 3m |
| Input voltage | 346-415V |
| Color | Black |
| SNMP | Yes |
| Material | Aluminium |
| Over voltage category | 2 |
| Outlets | (21) C13, (3) C19 |
| Type | Rack PDU |
| Serial interface | Yes |
| Mounting Dimension (metrical) | 52 |
