9 in stock for 1-2 Day Delivery
Eaton has a wide range of power distribution units, or PDUs. These range from simple rack mount models for IT networks that are spread out to complex models that can be used in enterprise and co-location data centres for a lot of monitoring and control.
Features & Benefits:
General specifications |
|
|---|---|

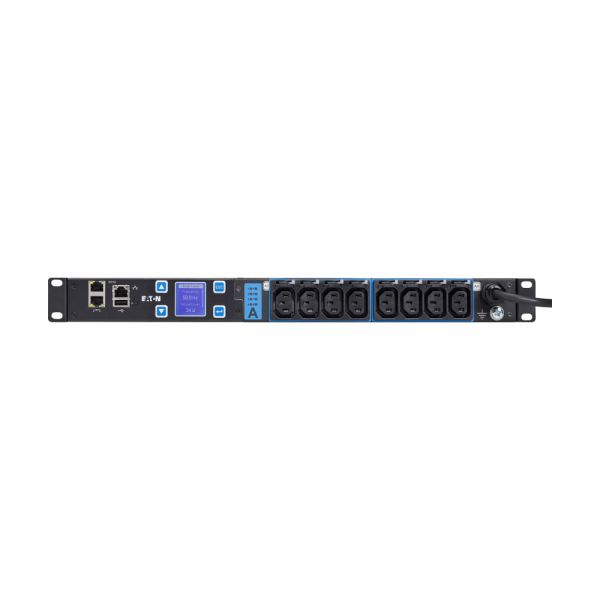

| Product Name | Eaton Managed Rack PDU |
| Catalog Number | EMAH28 |
| Model Code | EPDU MA 1U (C20 16A 1P)8XC13 |
| EAN | 3553340696206 |
| Product Length/Depth | 445 mm |
| Product Height | 203 mm |
| Product Width | 44 mm |
| Product Weight | 5 kg |
| Warranty | 2 year |
| Compliances | CE Marked RoHS Compliant EAC |
| Certifications | IEC 60950-1 IEC 61000-6-2 IEC 61000-6-4 |
| Model Code | EPDU MA 1U (C20 16A 1P)8XC13 |
Product specifications |
|
| Number of Outputs C13 | 8 |
| Phase | Single-phase |
| Electrical connection | Connecting cord with plug |
| Mounting dimension (standardized) | 482.6 mm (19 inch) |
| Wattage | 3.84 kW max |
| Form factor | 1U |
| Mounting direction | Horizontal |
| Amperage Rating | 16A |
| Package contents | Rack PDU Mounting accessories Network cable Configuration cable Splitter for daisy-chaining Quickstart guide Safety Instructions |
| Input connection | C20 |
| Fitted with: | Ampere Meter Display Mounting material |
| Frequency rating | 50/60 Hz |
| Evaluation | At distance |
| Operating Temperature | 0° to 60°C (32° to 140°F) |
| Ethernet interface | Yes |
| Number of outlets with earth pin | 8 |
| Mass configuration | Yes |
| Communication | HTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS |
| Special features | Remote Site Management Turn off unused outlets to control commissioning Phase Metering, Circuit Breaker Current Metering and Input Metering Circuit Breaker Status Monitoring Level 3 PUE measurements Outlet and IT Equipment Switching/reboot /sequencing across A and B feed in Daisy-Chain Sequence Outlets to avoid in-rush current, to ensure equipment starts in correct order Highly secure with user access control, password protection and SSL configurable to 1024 or 2048 bit Hot-Swap Control module with advanced LCD Optional Temperature/Humidity sensor Built-in IEC outlet eGrip retention, retains all standard IEC plugs Built-in outlet P-lock system, locking mechanism with P-lock power cords |
| Outlet control | Yes |
| Switchable | Yes |
| Cord length | 3m |
| Input voltage | 200-240V |
| Color | Black |
| SNMP | Yes |
| Material | Aluminium |
| Over voltage category | 2 |
| Outlets | (8) C13 |
| Type | Rack PDU |
| Serial interface | Yes |
| Mounting Dimension (metrical) | 203 |
