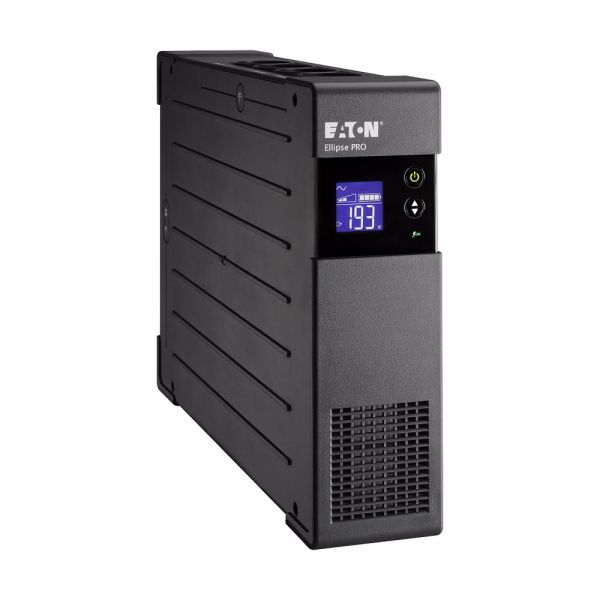

Eaton ELP1600IEC Ellipse PRO 1600VA/1000W 230V Line Interactive UPS

1-2 Day Delivery

1-2 Day Delivery

£372.48 £310.40

The Eaton Ellipse PRO is a line-interactive uninterruptible power supply (UPS) that was made to protect workstations that run very demanding programmes.

Free Express Delivery Over £99*  (1 - 2 Days)

The Eaton Ellipse PRO is a line-interactive uninterruptible power supply (UPS) that was made to protect workstations that run very demanding programmes. The Ellipse PRO has an LCD screen that shows real-time status and measurements. It also has EcoControl power outlets that can save up to 20% on energy and Advanced Surge Reduction (ASR) that meets all of the requirements of the IEC 616431-1 standard. It will also protect data connections such as Ethernet, the internet, and telephone lines.

The Automatic Voltage Regulation (AVR) feature corrects voltage fluctuations right away, so you can keep working through brownouts and overvoltages without having to use your batteries. The extra-flat design makes for a simple installation in any working environment. Depending on where you want to put the box, you can put it vertically, horizontally under a monitor, 19" rack-mounted, or on the wall (2U rack-mount kit and wall-mount kit sold separately).

Features & Benefits:

  • Output power capacity: 1000 Watts / 1600VA
  • 5-minute battery runtime at 70% load
  • The extra-flat design makes it easy to install in any office environment
  • Automatic Voltage Regulation (AVR)
  • A high-performance surge-protection device that meets the IEC 61643-11 standard
  • Data line protection makes sure that the internet line (including xDSL) is safe from surges
  • LCD screen for real-time information and measurements
  • 4 outlets to connect your PC + peripherals
  • The EcoControl feature helps you save up to 20% more energy than with older UPSs
  • HID-compliant USB port, with a cable included, for easy integration with major operating systems (Windows, Mac OS, and Linux).
  • Easy to replace battery helps to extend UPS service life
  • Periodic battery self-test ensures early detection of a battery that needs to be replaced
  • Three-year warranty
  • Output Connections - (4) C13, (4) C13 surge only
  • Input Connections - IEC C14
  • Tower

General Specifications
Product NameEaton Ellipse PRO UPS
Catalog NumberELP1600IEC
Product Length/Depth82 mm
Product Height275 mm
Product Width390 mm
Product Weight11.3 kg
CompliancesCE Marked
CertificationsIEC/EN 62040-1, IEC/EN 62040-2, CE, EAC
Product Specifications
Secondary frequency - max60 Hz
Wattage1000 W
Output power factor0.6
Form factorTower
Includes network cardNo
Input connectionC14
Input voltage - min150 V
Output voltage - max284 V
Secondary frequency - min50 Hz
Software compatibilityEaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
Battery replacementUser replaceable
Battery typeSealed, lead-acid
Construction typeFree standing model
Output voltage - min176 V
Extended battery capabilityNo
Output voltage range176-284 V
Surge protectionYes
Back-up time9 min
Input nominal voltage230V default (220/230/240V)
Input frequency range46-70 Hz
Input voltage - max285 V
Voltage typeAC
Phase (output)1
Battery managementReplaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
Auto shutdown functionYes
Number of Outputs C138
Operating temperature - min0 °C
VA rating1600 VA
Potential free switch contactNo
Receptacle(4) C13, (4) C13 surge only
Phase (input)1
Package contents(2) IEC-IEC cables, USB cable, User manual, Safety instructions
Noise level<27 dB at 1 meter
Feed type1
Runtime graphView runtime graph
User interfaceLCD (UPS status and measurements, configuration of UPS settings)
Battery quantity2
Operating temperature - max35 °C
Temperature range0° to 35°C (32° to 95°F)
Ethernet interfaceNo
CommunicationUSB port (HID compliant)
Relative humidity0-85% non-condensing
Output apparent power1600 VA
Rack mounting kitNo
Output frequency50/60 Hz
Runtime at full load2 min
Type of interfaceUSB
Primary frequency - min46 Hz
Battery rating12 V / 9 Ah
Output nominal voltage230V default (220/230/240V)
Expansion slotsNo
Input voltage range165-285 V (adjustable to 150-285 V)
Nominal frequency50/60 Hz
Primary frequency - max70 Hz
Altitude2000 m
