The Ellipse ECO series by Eaton is a compact power protection system with an integrated high-performance surge protector (compliant with the IEC 61643-11 standard). You can save up to 20% on energy costs when you use this device instead of older UPSs because it has an energy-efficient electrical architecture.
The Ellipse ECO series by Eaton is a compact power protection system with an integrated high-performance surge protector (compliant with the IEC 61643-11 standard). You can save up to 20% on energy costs when you use this device instead of older UPSs because it has an energy-efficient electrical architecture. It will also protect data connections such as Ethernet, the internet, and telephone lines.
The extra-flat design makes for a simple installation in any working environment. Depending on where you want to put the box, you can put it vertically, horizontally under a monitor, 19" rack-mounted, or on the wall (2U rack-mount kit and wall-mount kit sold separately).
Features & Benefits:
| General Specifications | |
|---|---|

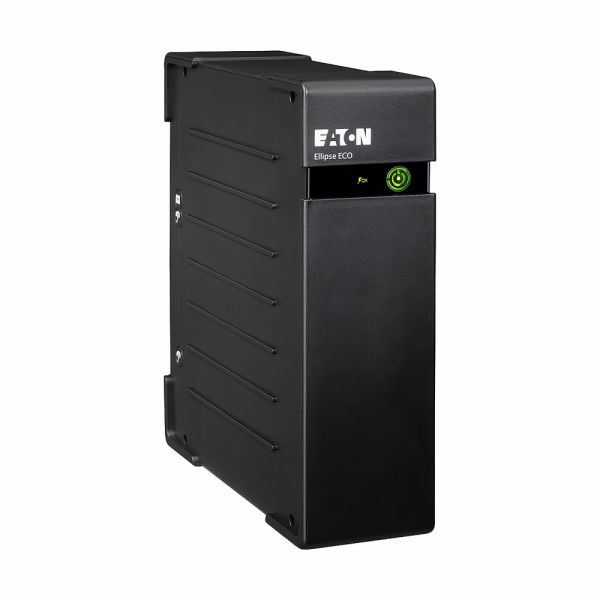

| Product Name | Eaton Ellipse ECO UPS |
| Catalog Number | EL650IEC |
| EAN | 3553340620638 |
| Product Length/Depth | 81 mm |
| Product Height | 263 mm |
| Product Width | 235 mm |
| Product Weight | 3.6 kg |
| Compliances | CE Marked |
| Certifications | IEC/EN 62040-1 , IEC/EN 62040-2 , CE , EAC |
| Product Specifications | |
| Secondary frequency - max | 60 Hz |
| Wattage | 400W |
| Output power factor | 0.6 |
| Form factor | Tower |
| Includes network card | No |
| Input connection | C14 |
| Input voltage - min | 161 V |
| Output voltage - max | 284 V |
| Secondary frequency - min | 50 Hz |
| Battery replacement | User replaceable |
| Battery type | Sealed, lead-acid |
| Efficiency | 98 |
| Construction type | Free standing model |
| Output voltage - min | 161 V |
| Color | Black |
| Extended battery capability | No |
| Output voltage range | 184-264 V (adjustable to 161-284 V) |
| Topology | Offline |
| Surge protection | Yes |
| Back-up time | 9 min |
| Input nominal voltage | 230V default (220/230/240V) |
| Input frequency range | 46-70 Hz |
| Input voltage - max | 284 V |
| Voltage type | AC |
| Phase (output) | 1 |
| Battery management | Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable |
| Auto shutdown function | No |
| Number of Outputs C13 | 4 |
| Operating temperature - min | 0 °C |
| VA rating | 650 VA |
| Potential free switch contact | No |
| Receptacle | (3) C13, (1) C13 surge only |
| Phase (input) | 1 |
| Package contents | (2) IEC-IEC cables, User manual, Safety instructions |
| Noise level | <25 dB at 1 meter |
| Feed type | 1 |
| Runtime graph | View runtime graph |
| User interface | LEDs |
| Battery quantity | 1 |
| Operating temperature - max | 35 °C |
| Voltage | 230V |
| Temperature range | 0° to 35°C (32° to 95°F) |
| Ethernet interface | No |
| Relative humidity | 0-85% non-condensing |
| Output apparent power | 650 VA |
| Rack mounting kit | No |
| Output frequency | 50/60 Hz |
| Runtime at full load | 2 min |
| Type of interface | None |
| Primary frequency - min | 46 Hz |
| Battery rating | 12 V / 7 Ah |
| Type | UPS |
| Output nominal voltage | 230V default (220/230/240V) |
| Expansion slots | No |
| Input voltage range | 184-264 V (adjustable to 161-284 V) |
| Nominal frequency | 50/60 Hz |
| Primary frequency - max | 70 Hz |
| Altitude | 2000 m |
