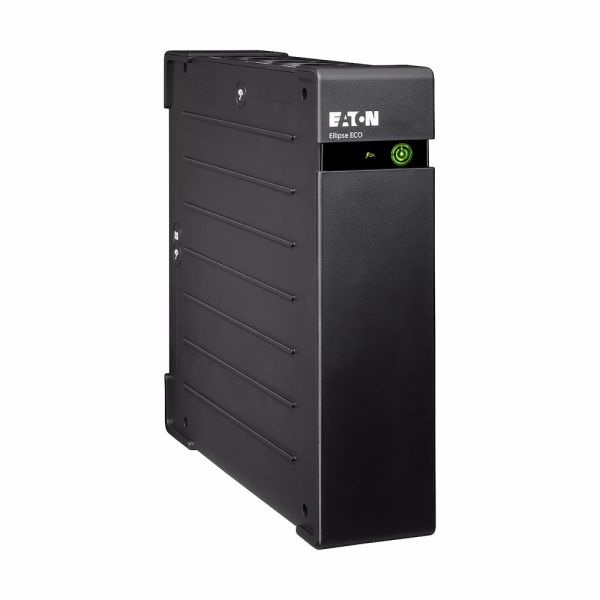

Eaton EL1600USBIEC Ellipse ECO 1600VA/1000W 230V Offline UPS, USB

9 in stock for 1-2 Day Delivery

9 in stock for 1-2 Day Delivery

SKU:
EL1600USBIEC
MPN:
EL1600USBIEC
£317.54 £264.62
The Ellipse ECO series by Eaton is a compact power protection system with an integrated high-performance surge protector (compliant with the IEC 61643-11 standard). You can save up to 20% on energy costs when you use this device instead of older UPSs because it has an energy-efficient electrical architecture.
Free Express Delivery Over £99*  (1 - 2 Days)

The Ellipse ECO series by Eaton is a compact power protection system with an integrated high-performance surge protector (compliant with the IEC 61643-11 standard). You can save up to 20% on energy costs when you use this device instead of older UPSs because it has an energy-efficient electrical architecture. It will also protect data connections such as Ethernet, the internet, and telephone lines.

The extra-flat design makes for a simple installation in any working environment. Depending on where you want to put the box, you can put it vertically, horizontally under a monitor, 19" rack-mounted, or on the wall (2U rack-mount kit and wall-mount kit sold separately).

Features & Benefits:

  • Output power capacity: 1000 Watts / 1600VA
  • 6-minute battery runtime at 70% load
  • The extra-flat design makes it easy to install in any office environment
  • A high-performance surge-protection device that meets the IEC 61643-11 standard
  • Data line protection makes sure that the internet line (including xDSL) is safe from surges
  • 8 outlets to connect your PC + peripherals
  • The EcoControl feature helps you save up to 20% more energy than with older UPSs
  • HID-compliant USB port, with a cable included, for easy integration with major operating systems (Windows, Mac OS, and Linux).
  • Easy to replace battery helps to extend UPS service life
  • Periodic battery self-test ensures early detection of a battery that needs to be replaced
  • A push-button circuit breaker makes it easy to get back to normal after an overload or short circuit
  • Two-year warranty
  • Output Connections - (4) C13, (4) C13 surge only
  • Input Connections - IEC C14
  • Tower

General Specifications
Product NameEaton Ellipse ECO UPS
Catalog NumberEL1600USBIEC
EAN3553340621635
Product Length/Depth81 mm
Product Height305 mm
Product Width312 mm
Product Weight7.8 kg
CompliancesCE Marked
CertificationsIEC/EN 62040-1, IEC/EN 62040-2, CE, EAC
Product Specifications
Secondary frequency - max60 Hz
Wattage1000 W
Output power factor0.6
Form factorTower
Includes network cardNo
Input connectionC14
Input voltage - min161 V
Output voltage - max284 V
Secondary frequency - min50 Hz
Software compatibilityEaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
Battery replacementUser replaceable
Battery typeSealed, lead-acid
Efficiency98
Construction typeFree standing model
Output voltage - min161 V
ColorBlack
Extended battery capabilityNo
Output voltage range184-264 V (adjustable to 161-284 V)
TopologyOffline
Surge protectionYes
Back-up time10.5 min
Input nominal voltage230V default (220/230/240V)
Input frequency range46-70 Hz
Input voltage - max284 V
Voltage typeAC
Phase (output)1
Battery managementReplaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
Auto shutdown functionYes
Number of Outputs C138
Operating temperature - min0 °C
VA rating1600 VA
Potential free switch contactNo
Receptacle(4) C13, (4) C13 surge only
Phase (input)1
Package contents(2) IEC-IEC cables, USB cable, User manual, Safety instructions
Noise level<25 dB at 1 meter
Feed type1
Runtime graphView runtime graph
User interfaceLEDs
Battery quantity2
Operating temperature - max35 °C
Voltage230V
Temperature range0° to 35°C (32° to 95°F)
Ethernet interfaceNo
CommunicationUSB port (HID compliant)
Relative humidity0-85% non-condensing
Output apparent power1600 VA
Rack mounting kitNo
Output frequency50/60 Hz
Runtime at full load1 min
Type of interfaceUSB
Primary frequency - min46 Hz
Battery rating12 V / 9 Ah
TypeUPS
Output nominal voltage230V default (220/230/240V)
Expansion slotsNo
Input voltage range184-264 V (adjustable to 161-284 V)
Nominal frequency50/60 Hz
Primary frequency - max70 Hz
Altitude2000 m
