Eaton has a wide range of power distribution units, or PDUs. These range from simple rack mount models for IT networks that are spread out to complex models that can be used in enterprise and co-location data centres for a lot of monitoring and control.
Features & Benefits:
General specifications |
|
|---|---|

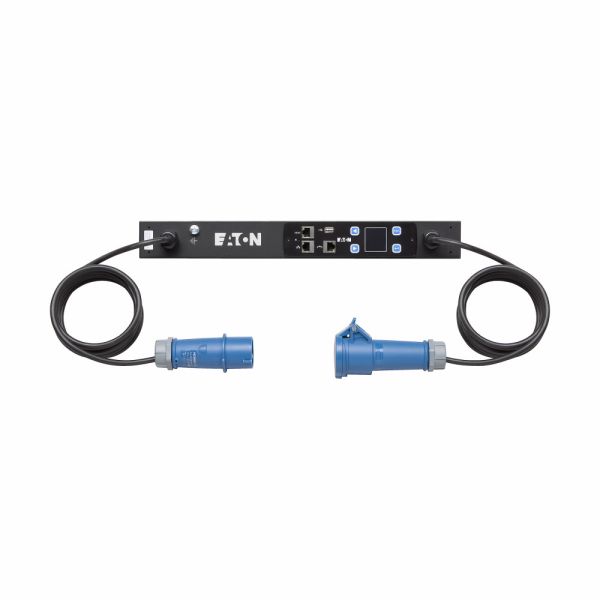

| Product Name | Eaton In-line Metered Rack PDU |
| Catalog Number | EILB13 |
| Model Code | EPDU IL 0U (309 16A 1P)1X309 |
| UPC | 743172065841 |
| Product Length/Depth | 439 mm |
| Product Height | 52 mm |
| Product Width | 53 mm |
| Product Weight | 1.82 kg |
| Warranty | 2 year |
| Compliances | CE Marked RoHS Compliant EAC |
| Certifications | CE IEC 60950-1 EN 55024:2010 |
| Model Code | EPDU IL 0U (309 16A 1P)1X309 |
Product specifications |
|
| Phase | Single-phase |
| Electrical connection | Connecting cord with plug |
| Mounting dimension (standardized) | Metric |
| Wattage | 3.84 kW max |
| Form factor | 0U (Vertical) |
| Mounting direction | Vertical |
| Amperage Rating | 16A |
| Package contents | Rack PDU Mounting accessories Network cable Configuration cable Splitter for daisy-chaining Quickstart guide Safety Instructions |
| Input connection | IEC-60309 16A 1Ph |
| Fitted with: | Ampere Meter Mounting material Display |
| Number of outputs (other) | 1 |
| Frequency rating | 50/60 Hz |
| Operating Temperature | 0° to 60°C (32° to 140°F) |
| Ethernet interface | Yes |
| Number of outlets with earth pin | 1 |
| Mass configuration | Yes |
| Communication | HTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS |
| Special features | Phase Metering, Circuit Breaker Current Metering and Input Metering Hot-Swap Control module with advanced LCD Optional Temperature/Humidity sensor Daisy-Chain up to 8 PDUs, reduce network infratsructure costs Power chain monitoring & Real time Intelligence on your Data Center, via Eaton Intelligent Power Manager Trigger advanced actions including Vmware SRM and VM migration via Intelligent Power Manager IT software 60°C Operating temperature Low-profile form factor: 52 mm wide x 53 mm deep on most models Mass configuration and update available via Intelligent Power Manager IT software |
| Outlet control | No |
| Switchable | No |
| Cord length | 3m |
| Input voltage | 200-240V |
| Color | Black |
| SNMP | Yes |
| Material | Aluminium |
| Over voltage category | 2 |
| Outlets | (1) IEC60309 16A |
| Type | Rack PDU |
| Serial interface | Yes |
| Mounting Dimension (metrical) | 52 |
Estimated delivery cost for Eaton EILB13 In-line Metered Rack PDU - 0U - In: IEC309 16A 1P - Out: IEC309 16A is £0.
