ETA confirmed after ordering or call: 0800 254 5655
Eaton has a wide range of power distribution units, or PDUs. These range from simple rack mount models for IT networks that are spread out to complex models that can be used in enterprise and co-location data centres for a lot of monitoring and control.
Features & Benefits:
General specifications |
|
|---|---|

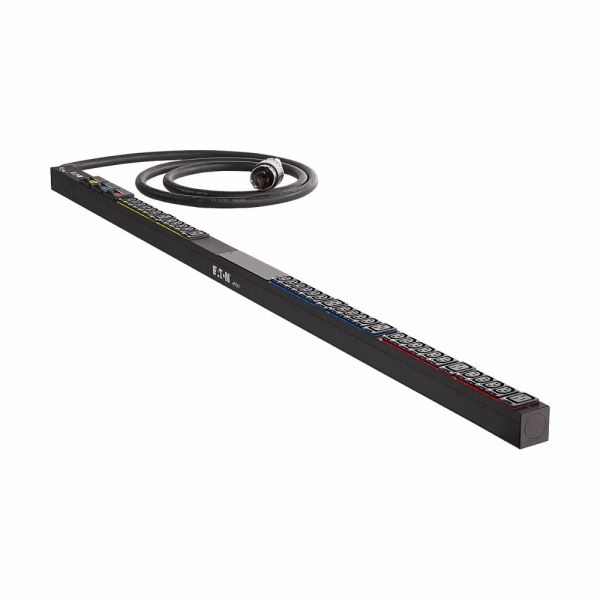

| Product Name | Eaton basic rack PDU |
| Catalog Number | EBAB32 |
| Model Code | EPDU BA 0U (309 32A 3P)24XC13:6XC19 |
| EAN | 3553340696312 |
| Product Length/Depth | 1150 mm |
| Product Height | 52 mm |
| Product Width | 53 mm |
| Product Weight | 5.2 kg |
| Warranty | 2 year |
| Compliances | CE Marked RoHS Compliant EAC |
| Certifications | CE IEC 60950-1 EN 55024:2010 |
| Model Code | EPDU BA 0U (309 32A 3P)24XC13:6XC19 |
Product specifications |
|
| Number of Outputs C13 | 24 |
| Phase | Three-phase |
| Electrical connection | Connecting cord with plug |
| Mounting dimension (standardized) | Metric |
| Wattage | 22 kW max |
| Form factor | 0U (Vertical) |
| Mounting direction | Vertical |
| Amperage Rating | 32 A |
| Package contents | Rack PDU Mounting accessories Quickstart guide Safety Instructions |
| Input connection | IEC-60309 32A 3Ph |
| Fitted with: | Mounting material |
| Frequency rating | 50/60 Hz |
| Operating Temperature | 0° to 60°C (32° to 140°F) |
| Ethernet interface | No |
| Number of outlets with earth pin | 30 |
| Circuit breaker | (6) single-pole |
| Mass configuration | No Special features Built-in IEC outlet eGrip retention, retains all standard IEC plugs Built-in outlet P-lock system, locking mechanism with P-lock power cords 60°C Operating temperature Colour-coded outlet and branch circuits for simple load balancing Hydraulic–Magnetic Circuit Breakers with accidental trip protection Low-profile form factor: 52 mm wide x 53 mm deep on most models Universal mounting system: Button mounting on rear and side + variable mounting system |
| Number of Outputs C19 | 6 |
| Outlet control | No |
| Switchable | No |
| Cord length | 3m |
| Input voltage | 346-415V |
| Color | Black |
| SNMP | No |
| Material | Aluminium |
| Over voltage category | 2 |
| Outlets | (24) C13, (6) C19 |
| Type | Rack PDU |
| Serial interface | No |
| Mounting Dimension (metrical) | 52 |
Estimated delivery cost for Eaton EBAB32 Basic Rack PDU - 0U - In: IEC309 32A 3P - Out: 24 C13 + 6 C19 is £0.
