The Eaton ATS series is made to provide backup power supplies for equipment that only has one connection. IT equipment that only has one power source can get power from two different sources with an ATS.
Dual power supplies are something that only the most advanced servers have. Most network devices and low-end servers only have one connection and one way to plug in power. Using an Eaton ATS, you can connect important equipment to a backup power supply. Both sources, the main and the secondary, are connected to the ATS in a simple way at the base of the rack. The Eaton ATS then controls the redundancy of this electric power supply. If the first source fails, the switch to the second source happens automatically and right away.
Features & Benefits:
General specifications |
|
|---|---|

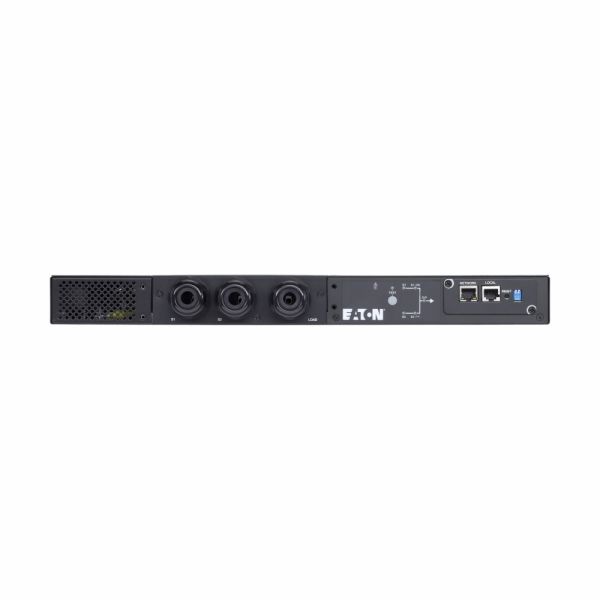

| Product Name | Eaton ATS rack PDU |
| Catalog Number | EATS30N |
| Model Code | Eaton ATS 30A Netpack |
| UPC | 743172069528 |
| Product Length/Depth | 440 mm |
| Product Height | 43 mm |
| Product Width | 390 mm |
| Product Weight | 5 kg |
| Warranty | 2 year |
| Compliances | CE Marked |
| Certifications | CE |
| Model Code | Eaton ATS 30A Netpack |
Product specifications |
|
| Phase | Single-phase |
| Electrical connection | Screwed terminal |
| Mounting dimension (standardized) | 482.6 mm (19 inch) |
| Wattage | 7.4 kW max |
| Form factor | 1U |
| Mounting direction | Horizontal |
| Amperage Rating | 30A |
| Package contents | ATS Quickstart guide Safety instructions Accessories for rack installation |
| Input connection | Hardwired |
| Number of outputs hardwired | 1 |
| Fitted with: | LED indication Mounting material Ampere Meter |
| Frequency rating | 50/60 Hz |
| Evaluation | At distance |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Ethernet interface | Yes |
| Mass configuration | Yes |
| Communication | HTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS |
| Special features | Provides power redundancy to IT equipment Alternative to expensive redundant power supplies available from networking equipment vendors Compact, 1U rack form factor Seamlessly switches from one power source to the other Network management |
| Outlet control | No |
| Switchable | No |
| Input voltage | 200-240V |
| Color | Black |
| SNMP | Yes |
| Over voltage category | 2 |
| Outlets | Hardwired |
| Type | ATS |
| Serial interface | No |
| Mounting Dimension (metrical) | 43 |
