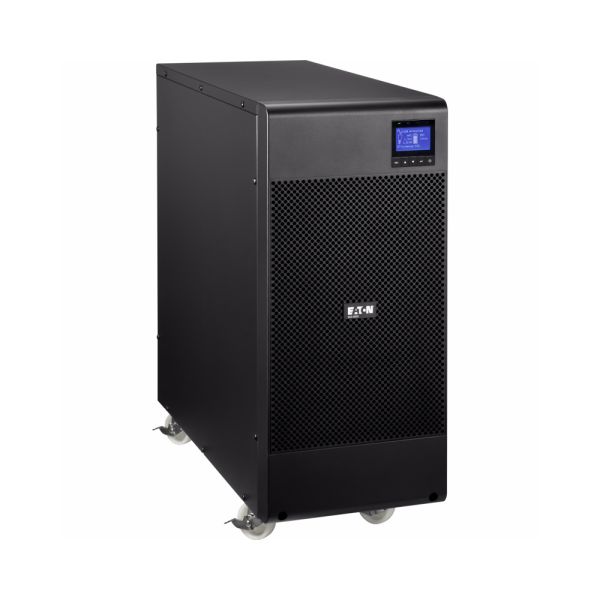

Eaton 9SX5KI 9SX 5kVA/4.5kW 230V Online UPS, Hardwired

Call for availability 0800 2545655

Call for availability 0800 2545655

SKU:
9SX5KI
MPN:
9SX5KI
£2,982.20 £2,485.17

The 9SX UPS by Eaton ensures high availability, flexibility, and sophisticated protection for infrastructure, industrial, medical, information technology, networking, storage, and telecommunications. It delivers double-conversion protection convenient tower format.

Free Express Delivery Over £99*  (1 - 2 Days)

The 9SX UPS by Eaton ensures high availability, flexibility, and sophisticated protection for infrastructure, industrial, medical, information technology, networking, storage, and telecommunications. It delivers double-conversion protection convenient tower format. With a power factor of 0.9, the 9SX offers 28% more power than other UPSs in its class. It delivers more power to servers than other UPSs with the same amount of power and a lower power factor.

A maintenance bypass is available (as an option) allowing quick replacement of the UPS without powering down important systems. Stronger, longer-lasting batteries: Eaton ABM battery management technology uses a three-stage charging method that doubles battery life. 9SX additionally includes battery replacement dates.

On a single panel, the new graphical LCD displays the UPS's status and measurements. Additional setup options are available. The 9SX can track energy usage. The LCD or Eaton's Intelligent Power Software can display kWh values. This software works with leading virtualization and cloud orchestration platforms. Load segment control prioritises non-essential equipment shutdowns to extend battery life for key devices. 9SX has serial, USB, and an additional slot for a communication card.

Features & Benefits:

  • Output power capacity: 4500 Watts / 5kVA
  • 19-minute typical backup time at 3150 Watts
  • Double conversion topology
  • Monitors and controls voltage and frequency
  • With a 0.9 power factor, it protects more devices
  • Internal bypass allows service continuity in case of UPS fault
  • Next-generation graphical LCD display
  • Meter energy consumption (at the UPS level)
  • Hot-swappable batteries
  • Advanced Battery Management (ABM) technology extends battery life
  • Compact tower format
  • 1 optional communication card slot (network management card, relay card or network and industrial card)
  • 1 USB port and 1 serial port
  • Up to 4 external hot-swappable battery modules can be added to extend runtime
  • Remote ON/OFF, Remote power OFF and Relay output
  • Two-year warranty
  • Output Connections - Terminal block
  • Input Connections - Terminal block (up to 10 mm²)

General Specifications
Product NameEaton 9SX UPS
Catalog Number9SX5KI
UPC743172091000
Product Length/Depth54.2 cm
Product Height57.5 cm
Product Width24.4 cm
Product Weight65.5 kg
CompliancesCE Marked, TUV
CertificationsIEC/EN 62040-1, IEC/EN 62040-2, CE, EAC
Product Specifications
Secondary frequency - max60 Hz
Output waveformSine wave
Max number of battery packs4
Wattage4500 W
Output power factor0.9
Form factorTower
Voltage distortion output (linear load) - max3
Includes network cardNo
Input connectionHardwired/fixed connection
Input voltage - min120 V
Output voltage - max240 V
Secondary frequency - min50 Hz
Software compatibilityEaton Intelligent Power Manager, Eaton Intelligent Power Protector
Battery replacementReplacable batteries & Hot-swappable extended battery modules (EBMs)
Battery typeSealed, lead-acid
Efficiency94.2
Number of outputs hardwired1
Construction typeFree standing model
Output voltage - min200 V
ColorBlack
Extended battery capabilityYes
Output voltage range200/208/220/230/240 V +/- 2%
TopologyOnline/Double-conversion
BTU RatingOnline: 922
Efficiency (eco-mode)98
Back-up time21 min
Input nominal voltage230V default (200/208/220/230/240V)
Input power factor>.99
Input frequency range40-70 Hz
Internal bypassYes
Input voltage - max276 V
Voltage typeAC
Phase (output)1
Battery managementABM & Temperature compensated charging method (user selectable), Automatic battery test, Deep discharge protection, Automatic recognition of external battery units
Auto shutdown functionYes
VA rating5000 VA
Potential free switch contactYes
Phase (input)1
Package contentsUPS, Quickstart guide, Serial cable, USB cable
Noise level<46 dB at 1 meter
Feed type1
Runtime graphView runtime graph
User interfaceMultilingual graphical LCD display
Battery quantity20
Voltage230V
Hot swap powerNo
Temperature range0° to 40°C (32° to 104°F)
Ethernet interfaceNo
CommunicationUSB port (HID compliant), Serial port (RS232), Mini-terminal block for remote power off, Mini-terminal block for output relay, Dry contacts (2 outputs, 1 input, optocoupler, DB9)
Relative humidity0-96% non-condensing
Rack mounting kitNo
Output frequency50/60 Hz
Runtime at full load8 min
Primary frequency - min40 Hz
Battery rating12 V / 7 Ah
TypeUPS
Output nominal voltage230V default (200/208/220/230/240V)
Expansion slotsOne slot for optional communication card
Input voltage range176-276 V (120-276 V with derating)
Nominal frequency50/60 Hz
Primary frequency - max70 Hz
Altitude3000 m
Primary frequency - max70 Hz
Altitude3000 m
