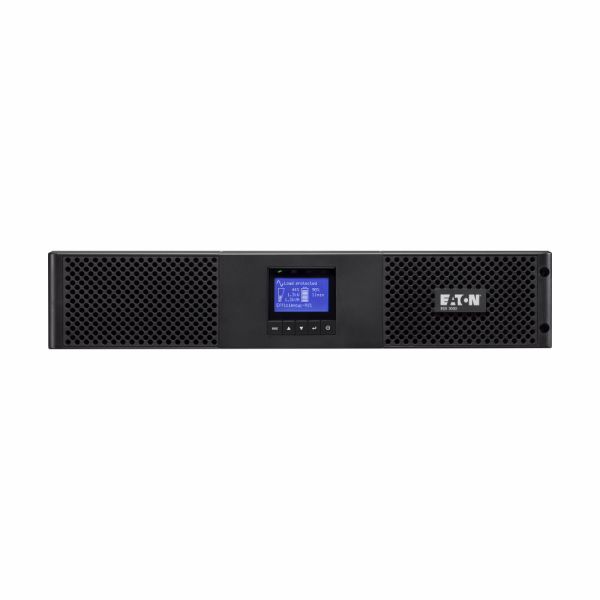

The 9SX UPS by Eaton ensures high availability, flexibility, and sophisticated protection for infrastructure, industrial, medical, information technology, networking, storage, and telecommunications. It delivers double-conversion protection convenient rack-mount format.
Recommended replacement for 9SX3000IR
The 9SX UPS by Eaton ensures high availability, flexibility, and sophisticated protection for infrastructure, industrial, medical, information technology, networking, storage, and telecommunications. It delivers double-conversion protection convenient rack-mount format. With a power factor of 0.9, the 9SX offers 28% more power than other UPSs in its class. It delivers more power to servers than other UPSs with the same amount of power and a lower power factor.
A maintenance bypass is available (as an option) allowing quick replacement of the UPS without powering down important systems. Stronger, longer-lasting batteries: Eaton ABM battery management technology uses a three-stage charging method that doubles battery life. 9SX additionally includes battery replacement dates.
On a single panel, the new graphical LCD displays the UPS's status and measurements. Additional setup options are available. The 9SX can track energy usage. The LCD or Eaton's Intelligent Power Software can display kWh values. This software works with leading virtualization and cloud orchestration platforms. Load segment control prioritises non-essential equipment shutdowns to extend battery life for key devices. 9SX has serial, USB, and an additional slot for a communication card.
Recommended replacement for 9SX3000IR
Features & Benefits:
General specifications | |
|---|---|
| Product Name | Eaton 9SX UPS |
| Catalog Number | 9SX3000IRBS |
| EAN | 3553340620492 |
| Product Length/Depth | 780 mm |
| Product Height | 240 mm |
| Product Width | 580 mm |
| Product Weight | 26.9 kg |
| Warranty | 2 year |
| Compliances | CE Marked, TUV, cULus Listed, CSA 22.2, FCC part 15 Class B, CISPR22 Class B |
| Certifications | IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, cULus Listed, EAC |
Battery | |
| Battery type | Sealed, lead-acid |
| Runtime graph | View runtime graph |
| Battery replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Battery quantity | 6 |
| Battery management | ABM & Temperature compensated charging method (user selectable), Automatic battery test, Deep discharge protection, Automatic recognition of external battery units |
| Battery rating | 12 V / 9 Ah |
| Extended battery capability | Yes |
Electrical output | |
| Receptacle | (8) C13, (1) C19 |
| Voltage | 230V |
| Wattage | 2700 W |
| Output power factor | 0.9 |
| Output voltage range | 200/208/220/230/240 V +/- 2% |
| Output waveform | Sine wave |
| Output nominal voltage | 230V default (200/208/220/230/240V) |
| Voltage distortion output (linear load) - max | 3 |
| Feed type | 1 |
| Topology | Online/Double-conversion |
| VA rating | 3000 VA |
Electrical input | |
| Input connection | C14 |
| Input nominal voltage | 230V default (200/208/220/230/240/250V) |
| Nominal frequency | 50/60 Hz |
| Input power factor | >.99 |
| Input cord length | 1.8m |
| Input voltage range | 200-276 Vac without derating (up to 140-276 Vac with derating) |
| Input frequency range | 40-70 Hz |
Communications | |
| Includes network card | No |
| Communication | USB port (HID compliant), Serial port (RS232), Mini-terminal block for remote power off, Mini-terminal block for output relay, Dry contacts (2 outputs, 1 input, optocoupler, DB9) |
| Ethernet interface | No |
| User interface | Multilingual graphical LCD display |
| Potential free switch contact | Yes |
| Expansion slots | One slot for optional communication card |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Type of interface | Other |
Environmental | |
| Altitude | 3000 m |
| Noise level | <45 dB at 1 meter |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Relative humidity | 0-96% non-condensing |
Additional specifications | |
| Construction type | 482.6 mm (19 inch) device |
| Package contents | UPS, Input cable, (2) IEC-IEC output cables, USB cable, Serial cable, (2) brackets for 19’ mounting, (2) Rack-mounting kit, Safety instructions, Quickstart guide, BS input cord |
| Phase (output) | 1 |
| Internal bypass | Yes |
| Auto shutdown function | Yes |
| Colour | Black |
| Efficiency | 92 |
| Rack mounting kit | Yes |
| Phase (input) | 1 |
| Hot swap power | No |
