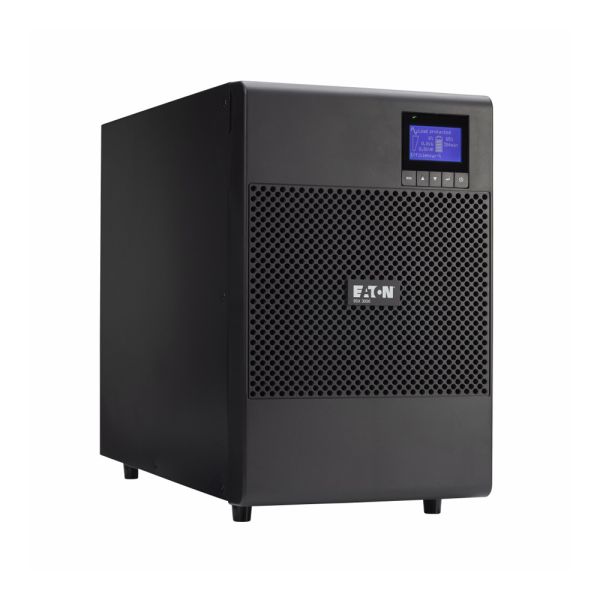

The 9SX UPS by Eaton ensures high availability, flexibility, and sophisticated protection for infrastructure, industrial, medical, information technology, networking, storage, and telecommunications. It delivers double-conversion protection convenient tower format.
The 9SX UPS by Eaton ensures high availability, flexibility, and sophisticated protection for infrastructure, industrial, medical, information technology, networking, storage, and telecommunications. It delivers double-conversion protection convenient tower format. With a power factor of 0.9, the 9SX offers 28% more power than other UPSs in its class. It delivers more power to servers than other UPSs with the same amount of power and a lower power factor.
A maintenance bypass is available (as an option) allowing quick replacement of the UPS without powering down important systems. Stronger, longer-lasting batteries: Eaton ABM battery management technology uses a three-stage charging method that doubles battery life. 9SX additionally includes battery replacement dates.
On a single panel, the new graphical LCD displays the UPS's status and measurements. Additional setup options are available. The 9SX can track energy usage. The LCD or Eaton's Intelligent Power Software can display kWh values. This software works with leading virtualization and cloud orchestration platforms. Load segment control prioritises non-essential equipment shutdowns to extend battery life for key devices. 9SX has serial, USB, and an additional slot for a communication card.
Features & Benefits:
| General Specifications | |
|---|---|
| Product Name | Eaton 9SX UPS |
| Catalog Number | 9SX3000 |
| UPC | 743172091260 |
| Product Length/Depth | 16.2 in |
| Product Height | 13.6 in |
| Product Width | 8.4 in |
| Product Weight | 77.2 lb |
| Compliances | FCC Compliant,CE Marked |
| Certifications | cULus Listed |
| Battery | |
| Runtime graph | View runtime graph |
| Battery management | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
| Battery replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Extended battery capability | Yes |
| Electrical Output | |
| Receptacle | (4) 5-20R, (1) L5-30R |
| Topology | Online/Double-conversion |
| Wattage | 2700 W |
| VA rating | 3000 VA |
| Output waveform | True sine wave |
| Voltage | 120V |
| Output power factor | 0.9 |
| Output nominal voltage | 120V default (100/110/120/125V) |
| Output frequency | 50/60 Hz |
| Feed type | 1 |
| Electrical Input | |
| Input connection | L5-30P |
| Input cord length | 8 ft |
| Input frequency range | 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz |
| Input power factor | >.99 |
| Communications | |
| Communication | (1) MiniSlot,(1) USB port,(1) Serial RS-232 port,(1) RPO/ROO/Signal input terminal,(1) mini-terminal block for output relay |
| Expansion slots | (1) Mini-Slot (MS) expansion port. Optional connectivity cards may be ordered separately.,- Gigabit Web/SNMP card part number: NETWORK-M2,- Modbus card part number: MODBUS-MS,- Relay card part number: RELAY-MS |
| User interface | 5-button graphical user interface |
| Potential free switch contact | Yes |
| Environmental | |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Additional Specifications | |
| Form factor | Tower |
| Construction type | Free standing model |
| Package contents | 9SX 3000 VA UPS,Quick start guide,RS-232 serial cable,USB cable |
| Internal bypass | Yes |
| Warranty And Support | |
| Standard factory warranty | 2-YEAR FACTORY WARRANTY |
9SX1000 UPS 3D technical drawing
9SX1000 UPS 2D technical drawing
Eaton 9SX UPS technical specifications
