The 9SX UPS by Eaton ensures high availability, flexibility, and sophisticated protection for infrastructure, industrial, medical, information technology, networking, storage, and telecommunications. It delivers double-conversion protection convenient rack-mount format.
Recommended replacement for 9SX2000IR
The 9SX UPS by Eaton ensures high availability, flexibility, and sophisticated protection for infrastructure, industrial, medical, information technology, networking, storage, and telecommunications. It delivers double-conversion protection convenient rack-mount format. With a power factor of 0.9, the 9SX offers 28% more power than other UPSs in its class. It delivers more power to servers than other UPSs with the same amount of power and a lower power factor.
A maintenance bypass is available (as an option) allowing quick replacement of the UPS without powering down important systems. Stronger, longer-lasting batteries: Eaton ABM battery management technology uses a three-stage charging method that doubles battery life. 9SX additionally includes battery replacement dates.

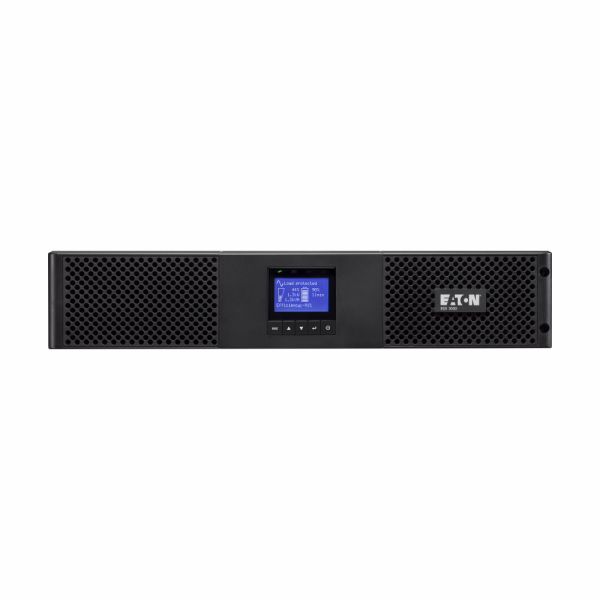

On a single panel, the new graphical LCD displays the UPS's status and measurements. Additional setup options are available. The 9SX can track energy usage. The LCD or Eaton's Intelligent Power Software can display kWh values. This software works with leading virtualization and cloud orchestration platforms. Load segment control prioritises non-essential equipment shutdowns to extend battery life for key devices. 9SX has serial, USB, and an additional slot for a communication card.
Recommended replacement for 9SX2000IR
Features & Benefits:
| General Specifications | |
|---|---|
| Product Name | Eaton 9SX UPS |
| Catalog Number | 9SX2000IRBS |
| EAN | 3553340620478 |
| Product Length/Depth | 780 mm |
| Product Height | 240 mm |
| Product Width | 580 mm |
| Product Weight | 26.9 kg |
| Warranty | 2 year |
| Compliances | CE Marked,TUV,cULus Listed,CSA 22.2,FCC part 15 Class B,CISPR22 Class B |
| Certifications | IEC/EN 62040-1,UL 1778,IEC/EN 62040-2,CE,cULus Listed,EAC |
| Product Specifications | |
| Secondary frequency - max | 60 Hz |
| Output waveform | Sine wave |
| Max number of battery packs | 4 |
| Wattage | 1800 W |
| Output power factor | 0.9 |
| Form factor | Rack |
| Voltage distortion output (linear load) - max | 3 |
| Includes network card | No |
| Input connection | C14 |
| Input voltage - min | 140 V |
| Output voltage - max | 240 V |
| Secondary frequency - min | 50 Hz |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Battery replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Battery type | Sealed, lead-acid |
| Efficiency | 92 |
| Construction type | 482.6 mm (19 inch) device |
| Output voltage - min | 200 V |
| Color | Black |
| Extended battery capability | Yes |
| Output voltage range | 200/208/220/230/240 V +/- 2% |
| Topology | Online/Double-conversion |
| BTU Rating | Online: 546 |
| Efficiency (eco-mode) | 98 |
| Back-up time | 12 min |
| Input nominal voltage | 230V default (200/208/220/230/240/250V) |
| Input power factor | >.99 |
| Input frequency range | 40-70 Hz |
| Internal bypass | Yes |
| Input voltage - max | 276 V |
| Voltage type | AC |
| Phase (output) | 1 |
| Battery management | ABM & Temperature compensated charging method (user selectable),Automatic battery test,Deep discharge protection,Automatic recognition of external battery units |
| Auto shutdown function | Yes |
| Number of Outputs C13 | 8 |
| VA rating | 2000 VA |
| Potential free switch contact | Yes |
| Receptacle | (8) C13 |
| Phase (input) | 1 |
| Package contents | UPS,(2) IEC-IEC output cables,USB cable,Serial cable,(2) brackets for 19in mounting,(2) Rack-mounting kit,Safety instructions,Quickstart guide,BS input cord |
| Noise level | <45 dB at 1 meter |
| Feed type | 1 |
| Runtime graph | View runtime graph |
| User interface | Multilingual graphical LCD display |
| Battery quantity | 6 |
| Rack size | 2U |
| Voltage | 230V |
| Hot swap power | No |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Ethernet interface | No |
| Communication | USB port (HID compliant),Serial port (RS232),Mini-terminal block for remote power off,Mini-terminal block for output relay,Dry contacts (2 outputs, 1 input, optocoupler, DB9) |
| Relative humidity | 0-96% non-condensing |
| Rack mounting kit | Yes |
| Output frequency | 50/60 Hz |
| Runtime at full load | 4.5 min |
| Type of interface | Other |
| Primary frequency - min | 40 Hz |
| Battery rating | 12 V / 7 Ah |
| Type | UPS |
| Output nominal voltage | 230V default (200/208/220/230/240V) |
| Expansion slots | One slot for optional communication card |
| Input voltage range | 200-276 Vac without derating (up to 140-276 Vac with derating) |
| Nominal frequency | 50/60 Hz |
| Primary frequency - max | 70 Hz |
| Altitude | 3000 m |
Eaton 9SX UPS 700/1000/1500/2000/3000 VA - Datasheet
Eaton UPS and battery services
Eaton UPS Services Quick Guide 2021
