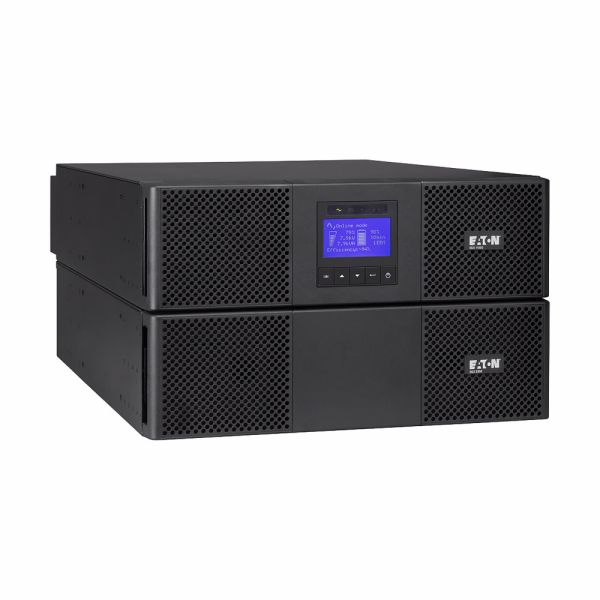

The 9SX UPS by Eaton ensures high availability, flexibility, and sophisticated protection for infrastructure, industrial, medical, information technology, networking, storage, and telecommunications. It delivers double-conversion protection in a convenient 6U rack/tower format.
The 9SX UPS by Eaton ensures high availability, flexibility, and sophisticated protection for infrastructure, industrial, medical, information technology, networking, storage, and telecommunications. It delivers double-conversion protection in a convenient 3U rack/tower format.
With a power factor of 0.9, the 9SX offers 28% more power than other UPSs in its class. It delivers more power to servers than other UPSs with the same amount of power and a lower power factor.
A maintenance bypass is available (as an option) allowing quick replacement of the UPS without powering down important systems. Stronger, longer-lasting batteries: Eaton ABM battery management technology uses a three-stage charging method that doubles battery life. 9SX additionally includes battery replacement dates.
On a single panel, the new graphical LCD displays the UPS's status and measurements. Additional setup options are available. The 9SX can track energy usage. The LCD or Eaton's Intelligent Power Software can display kWh values. This software works with leading virtualization and cloud orchestration platforms. Load segment control prioritises non-essential equipment shutdowns to extend battery life for key devices. 9SX has serial, USB, and an additional slot for a communication card.
Features & Benefits:
| General Specifications | |
|---|---|
| Product Name | Eaton 9SX UPS |
| Catalog Number | 9SX11KIRT |
| Model Code | Eaton 9SX 11000i RT6U |
| UPC | 743172040237 |
| Product Length/Depth | 70 cm |
| Product Height | 26 cm |
| Product Width | 44 cm |
| Product Weight | 79 kg |
| Warranty | 2 year |
| Compliances | CE Marked, TUV |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC |
| Model Code | Eaton 9SX 11000i RT6U |
| Product Specifications | |
| Secondary frequency - max | 60 Hz |
| Output waveform | Sine wave |
| Max number of battery packs | 12 (supercharger required for more than 6 EBM) |
| Wattage | 10 kW |
| Output power factor | 0.9 |
| Form factor | Rack/tower |
| Voltage distortion output (linear load) - max | 2 |
| Includes network card | No |
| Input connection | Hardwired/fixed connection |
| Input voltage - min | 100 V |
| Output voltage - max | 250 V |
| Secondary frequency - min | 50 Hz |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Battery replacement | Hot-swappable battery modules |
| Battery type | Sealed, lead-acid |
| Efficiency | 95 |
| Number of outputs hardwired | 1 |
| Construction type | 482.6 mm (19 inch) device |
| Output voltage - min | 200 V |
| Color | Black |
| Extended battery capability | Yes |
| Output voltage range | 200/208/220/230/240/250 V +/- 1% |
| Topology | Online/Double-conversion |
| BTU Rating | Online: 2047 |
| Efficiency (eco-mode) | 98 |
| Back-up time | 5.5 min |
| Input nominal voltage | 230V default (200/208/220/230/240/250V) |
| Input power factor | >.99 |
| Input frequency range | 40-70 Hz |
| Internal bypass | Yes |
| Input voltage - max | 276 V |
| Voltage type | AC |
| Phase (output) | 1 |
| Battery management | ABM & Temperature compensated charging method (user selectable), Automatic battery test, Deep discharge protection, Automatic recognition of external battery units |
| Auto shutdown function | Yes |
| VA rating | 11 kVA |
| Potential free switch contact | Yes |
| Receptacle | Hardwired |
| Phase (input) | 1 |
| Package contents | Power Module, Extended battery module (EBM), (2) brackets for 19in mounting, (2) Rack-mounting kit, USB cable, Serial cable, Battery cable with comms for automatic battery cabinet recognition, (2) Supports for tower mounting, Link plate, Safety instructions, Quickstart guide |
| Noise level | <50 dB at 1 meter |
| Feed type | 1 |
| Runtime graph | View runtime graph |
| User interface | Multilingual graphical LCD display |
| Battery quantity | 20 |
| Rack size | 6U |
| Voltage | 230V |
| Hot swap power | No |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Ethernet interface | No |
| Communication | USB port (HID compliant), Serial port (RS232), Mini terminal block for remote On/Off, Mini-terminal block for remote power off, Dry contacts (4 outputs, relay, DB9) |
| Relative humidity | 0-95% non-condensing |
| Rack mounting kit | Yes |
| Output frequency | 50/60 Hz |
| Runtime at full load | 2 min |
| Type of interface | Other |
| Primary frequency - min | 40 Hz |
| Battery rating | 12 V / 7 Ah |
| Type | UPS |
| Output nominal voltage | 230V default (200/208/220/230/240/250V) |
| Expansion slots | One slot for optional communication card |
| Input voltage range | 176-276 V (100-276 V with derating) |
| Nominal frequency | 50/60 Hz |
| Primary frequency - max | 70 Hz |
| Altitude | 3000 m |
