Eaton 9SX1000IMBS 9SX 1000VA/900W 230V Online UPS, Marine

9SX Marine is ideal for marine and offshore settings because of its coated boards and compatibility with high-temperature situations. 9SX Marine is a UPS type recognised by DNV-GL. It provides advanced double-conversion protection for bridge systems, navigation systems, communication systems and small computer and automation systems.

On a single panel, the new graphical LCD displays concise information about the UPS's status and measurements. Additionally, advanced configuration features are accessible. The 9SX Marine is capable of monitoring energy use. The LCD or Eaton's Intelligent Power Software can be used to monitor kWh numbers. This software interfaces smoothly with the industry's leading virtualisation platforms and cloud orchestration tools. Load segment control permits the prioritisation of non-essential equipment shutdowns in order to maximise battery runtime for vital devices. The 9SX Marine features serial and USB connectivity, as well as an optional communication card slot.

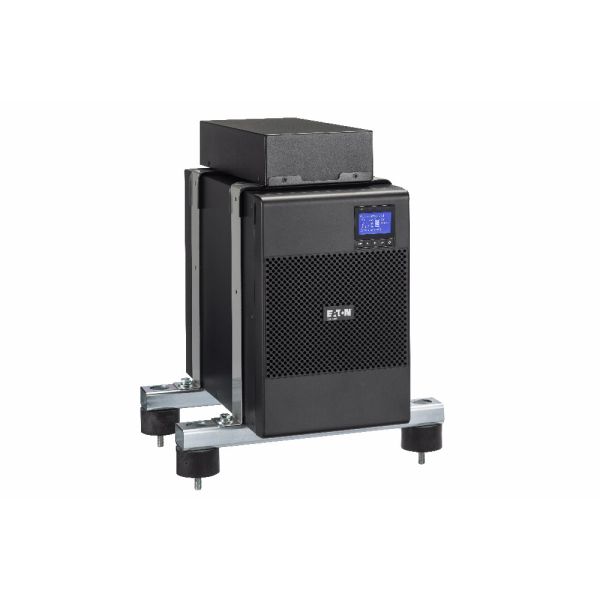

The device can be set up to work as a frequency converter (50 Hz to 60 Hz and 60 Hz to 50 Hz) or as a marine frequency converter (output frequency is the same as input frequency). rails are simple and can be bolted or welded to the deck, bulkhead, or shelf. Vibration absorbers are included in the installation kit and are mounted beneath the UPS cabinet. Additional runtime can be provided with the addition of up to four external hot-swappable battery modules, which are capable of powering systems for hours if necessary. The UPS recognises the additional battery modules automatically.

Recommended replacement for 9SX1000IM

Features & Benefits:

• Output power capacity: 900 Watts / 1000VA
• 7-minute typical backup time at 800W
• DNV-GL approved
• Double conversion topology
• Monitors and controls voltage and frequency
• With a 0.9 power factor, it protects more devices
• Reduces energy and cooling costs
• The internal bypass allows service continuity in case of UPS fault
• Next-generation graphical LCD display
• Meter energy consumption (at the UPS level)
• Hot-swappable batteries
• Advanced Battery Management (ABM) technology extends battery life
• Up to 4 external hot-swappable battery modules can be added to extend runtime
• Compact tower design
• 1 optional communication card slot (network management card, relay card or network and industrial card)
• 1 USB port and 1 serial port
• Two-year warranty (2 years on battery)
• Output Connections - 6 IEC C13 (10A) sockets
• Input Connections - 1 IEC C14 (10A)
