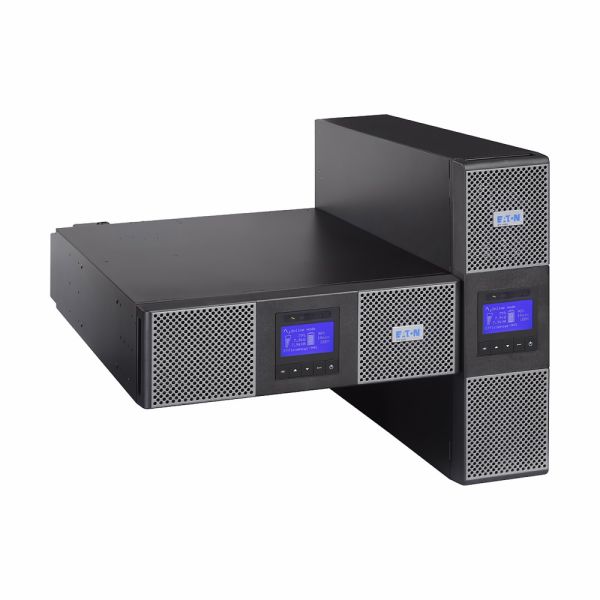

The Eaton 9PX UPS offers energy-efficient power protection for small and medium-sized data centres, IT rooms, and infrastructure. For IT and building managers concerned about rising energy expenses, the 9PX is the ideal UPS. It provides double-conversion protection while consuming 40% less energy than a standard UPS.
Compared to any other UPS in its class, the 9PX has a power factor of 0.9, delivering 28% more power. It provides more power to servers than other UPSs with comparable VA ratings and lower power factors of the same capacity. In terms of energy and cooling savings, the 9PX is Energy Star rated.
The UPS status and measurements may be clearly seen on a single screen thanks to the graphical LCD display. Additional setup options are available as well. 9PX has the capability to track energy usage down to the individual outlets in a managed outlet group. Eaton's Intelligent PowerTM Software or the LCD display can be used to keep track of kWh values. In order to make the battery last longer, load segment control makes sure that non-essential equipment is turned off first.
Serial and USB ports are included on the 9PX, and an additional slot is available for an optional communication card. Intelligent Power Software from Eaton is compatible with a wide range of major virtualization and cloud orchestration platforms.
Features & Benefits:
General specifications |
|
|---|---|
| Product Name | Eaton 9PX UPS |
| Catalog Number | 9PX8KIPM31 |
| UPC | 743172040121 |
| Product Length/Depth | 70 cm |
| Product Height | 44 cm |
| Product Width | 13 cm |
| Product Weight | 23 kg |
| Warranty | 2 year |
| Compliances | CE Marked TUV |
| Certifications | IEC/EN 62040-2 IEC/EN 62040-1 CE EAC |
Product specifications |
|
| Secondary frequency - max | 60 Hz |
| Output waveform | Sine wave |
| Max number of battery packs | 12 (supercharger required for more than 6 EBM) |
| Wattage | 7.2 kW |
| Output power factor | 0.9 |
| Form factor | Rack/tower |
| Voltage distortion output (linear load) - max | 2 |
| Includes network card | No |
| Input connection | Hardwired/fixed connection |
| Input voltage - min | 305 V |
| Output voltage - max | 250 V |
| Secondary frequency - min | 50 Hz |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Battery replacement | No battery |
| Efficiency | 95 |
| Number of outputs hardwired | 1 |
| Special features | Double conversion topology Constantly monitors power conditions and regulates voltage and frequency Provides more real power (watts) to protect more equipment with a 0.9 power factor Energy efficient, reduce energy and cooling costs Internal bypass allows service continuity in case of UPS fault Next-generation graphical LCD display Meter energy consumption (at the UPS level) |
| Construction type | Free standing model |
| Output voltage - min | 200 V |
| Color | Black/silver |
| Extended battery capability | Yes |
| Output voltage range | 200/208/220/230/240/250 V +/- 1% |
| Topology | Online/Double-conversion |
| BTU Rating | Online: 1472 |
| Efficiency (eco-mode) | 98 |
| Runtime at half load | 0 min |
| Input nominal voltage | 400V default (380/400/415V) |
| Input power factor | >.99 |
| Input frequency range | 40-70 Hz |
| Internal bypass | Yes |
| Input voltage - max | 408 V |
| Voltage type | AC |
| Phase (output) | 1 |
| Battery management | ABM & Temperature compensated charging method (user selectable) Automatic battery test Deep discharge protection Automatic recognition of external battery units |
| Auto shutdown function | Yes |
| VA rating | 8 kVA |
| Potential free switch contact | Yes |
| Receptacle | Hardwired |
| Phase (input) | 3 |
| Package contents | Power Module USB cable Serial cable (2) Supports for tower mounting Safety instructions Quickstart guide |
| Noise level | <48 dB at 1 meter |
| Feed type | 2 |
| User interface | Multilingual graphical LCD display |
| Battery quantity | 0 |
| Rack size | 3U |
| Voltage | 400V |
| Hot swap power | No |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Ethernet interface | No |
| Communication | USB port (HID compliant) Serial port (RS232) Mini terminal block for remote On/Off Mini-terminal block for remote power off Dry contacts (4 outputs, relay, DB9) |
| Relative humidity | 0-95% non-condensing |
| Rack mounting kit | No |
| Output frequency | 50/60 Hz |
| Runtime at full load | 0 min |
| Type of interface | Other |
| Primary frequency - min | 40 Hz |
| Type | Power Module |
| Output nominal voltage | 230V default (200/208/220/230/240/250V) |
| Expansion slots | One slot for optional communication card |
| Input voltage range | 305-480 V |
| Nominal frequency | 50/60 Hz |
| Primary frequency - max | 70 Hz |
| Altitude | 3000 m |
