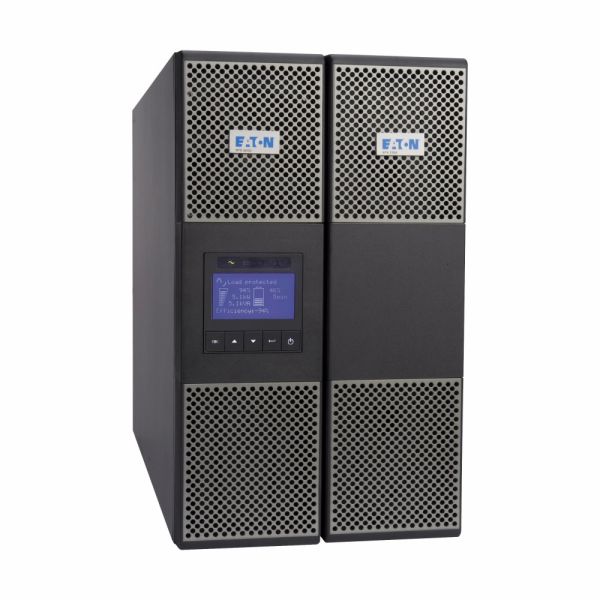

The Eaton 9PX3000IRTBPBS 9PX 3000VA/3000W 230V Online UPS RT3U with HotSwap IEC outlets delivers robust double-conversion protection for servers, storage, and critical IT infrastructure. Designed for UK businesses, this compact and efficient UPS ensures optimal performance and resilience in demanding environments.
Available from UPSBuyer, the 9PX3000IRTBPBS combines high online efficiency up to 94% with flexible deployment, featuring a 3U rack/tower versatile form factor and hot-swappable batteries for easy maintenance without power disruption. The internal battery provides up to 9.5 minutes of runtime at 50% load and around 3 minutes at full load, ensuring critical systems remain protected during power interruptions. With advanced LCD interface and network connectivity options, it allows real-time monitoring and energy metering for smarter energy management. Trust UPSBuyer for dependable and scalable UPS solutions tailored to UK businesses' needs.
General specifications |
|
|---|---|
| Product Name | Eaton 9PX UPS |
| Catalog Number | 9PX3000IRTBPBS |
| EAN | 3553340620270 |
| Product Length/Depth | 770 mm |
| Product Height | 290 mm |
| Product Width | 580 mm |
| Product Weight | 27.85 kg |
| Warranty | 3 year on electronics, 2 year on battery |
| Warranty | 3 year on electronics, 2 year on battery |
| Compliances | CE Marked TUV cULus Listed CSA 22.2 FCC part 15 Class B CISPR22 Class B |
| Certifications | IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus Listed EAC CE ENERGY STAR certified |
Product specifications |
|
| Secondary frequency - max | 60 Hz |
| Output waveform | Sine wave |
| Max number of battery packs | 4 |
| Wattage | 3000 W |
| Output power factor | 1 |
| Form factor | Rack/tower |
| Voltage distortion output (linear load) - max | 3 |
| Includes network card | No |
| Input connection | C20 |
| Input voltage - min | 100 V |
| Output voltage - max | 240 V |
| Secondary frequency - min | 50 Hz |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Battery replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Battery type | Sealed, lead-acid |
| Efficiency | 94 |
| Special features | Double conversion topology Constantly monitors power conditions and regulates voltage and frequency First UPS in its class to provide Unity power factor (VA=W) Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs Internal bypass allows service continuity in case of UPS fault Next-generation graphical LCD display Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat) Meter energy consumption (down to the managed outlet groups) Hot swappable batteries Advanced Battery Management (ABM) technology to increase battery lifetime Long backup time with up to 4 optional EBM |
| Construction type | 482.6 mm (19 inch) device |
| Output voltage - min | 200 V |
| Color | Black/silver |
| Extended battery capability | Yes |
| Output voltage range | 200/208/220/230/240 V +/- 1% |
| Topology | Online/Double-conversion |
| BTU Rating | Online: 614 |
| Efficiency (eco-mode) | 98 |
| Runtime at half load | 9.5 min |
| Input nominal voltage | 230V default (200/208/220/230/240V) |
| Input power factor | >.99 |
| Input frequency range | 40-70 Hz |
| Internal bypass | Yes |
| Input voltage - max | 276 V |
| Voltage type | AC |
| Phase (output) | 1 |
| Battery management | ABM & Temperature compensated charging method (user selectable) Automatic battery test Deep discharge protection Automatic recognition of external battery units |
| Auto shutdown function | Yes |
| Number of Outputs C13 | 6 |
| Number of Outputs C19 | 1 |
| VA rating | 3000 VA |
| Potential free switch contact | Yes |
| Receptacle | (6) C13, (1) C19 |
| Phase (input) | 1 |
| Package contents | UPS Input cable Maintenance Bypass (2) IEC-IEC output cables USB cable Serial cable (2) brackets for 19’ mounting (2) Rack-mounting kit (2) Supports for tower mounting Cable locking system Safety instructions Quickstart guide BS input cord |
| Noise level | <40 dB at 1 meter |
| Feed type | 1 |
| User interface | Multilingual graphical LCD display |
| Battery quantity | 6 |
| Rack size | 3U |
| Voltage | 230V |
| Hot swap power | Yes |
| Input cord length | 1.8m |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Ethernet interface | No |
| Communication | USB port (HID compliant) Serial port (RS232) Mini terminal block for remote On/Off Mini-terminal block for remote power off Mini-terminal block for output relay Dry contacts (3 outputs, 1 input, optocoupler, DB9) |
| Relative humidity | 0-96% non-condensing |
| Rack mounting kit | Yes |
| Output frequency | 50/60 Hz |
| Runtime at full load | 3 min |
| Type of interface | Other |
| Primary frequency - min | 40 Hz |
| Battery rating | 12 V / 9 Ah |
| Type | UPS |
| Output nominal voltage | 230V default (200/208/220/230/240V) |
| Expansion slots | One slot for optional communication card |
| Input voltage range | 176-276 V (100-276 V with derating) |
| Nominal frequency | 50/60 Hz |
| Primary frequency - max | 70 Hz |
| Altitude | 3000 m |
