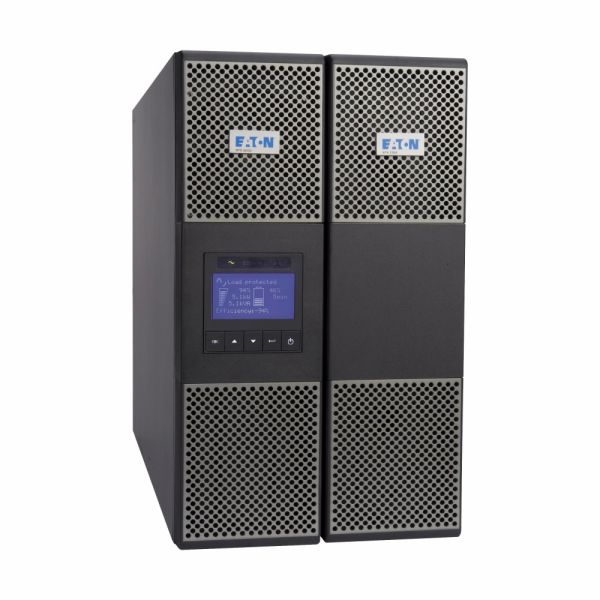

Eaton 9PX2200IRTBPH 9PX 2200VA/2200W 230V Online UPS RT3U HotSwap HW

Call 0800 254 5655 for Lead Time

Call 0800 254 5655 for Lead Time

SKU:
9PX2200IRTBPH
MPN:
9PX2200IRTBPH
£2,069.96 £1,724.97
  • Runtime at 70% load: UPS only 6m / 1 EBM 35m / 2 EBMs 68m / 3 EBMs 104m / 4 EBMs 142m
  • Hot-swappable internal batteries
  • Online double-conversion technology to constantly monitor power conditions & regulate voltage & frequency
  • Internal bypass allows service continuity in case of internal fault
  • Unity power factor (VA=W) delivers 11% more power than other UPSs
  • Versatile 3U rack/tower format (includes rack-mounting kit) - Suitable for 600mm racks/cabinets
  • Innovative graphical LCD display brings all operating information at first sight
  • Load segment control enables prioritised shutdowns of non-essential equipment during outages
  • Eaton ABM battery management technology
  • Up to 4 external hot-swappable battery modules can be added for longer power availability
  • (1) USB port + (1) serial RS232 port + (1) mini-terminal block for remote ON/OFF + (1) mini-terminal block for remote power off + (1) mini-terminal block for output relay
  • (1) slot for Network-M2, Network-MS, ModBus-MS or Relay-MS management cards
  • Input: Terminal block
  • Output: Terminal block
  • 3-year warranty on electronics (2 years on batteries)
Free Express Delivery Over £99*  (1 - 2 Days)

The Eaton 9PX2200IRTBPH 9PX 2200VA/2200W 230V Online UPS RT3U with HotSwap HW offers reliable power backup and surge protection for essential equipment such as servers, networking devices, and storage systems. Designed for UK businesses, its compact 3U rackmount form factor ensures efficient use of space in IT environments.

Available from UPSBuyer, this UPS features hardwired input and output connections, providing flexibility for various installations. The user-replaceable sealed lead-acid battery delivers up to 10 minutes of runtime at 50% load, ensuring critical systems remain operational during power interruptions. With HID-compliant USB and serial connectivity, it integrates seamlessly with most operating systems, allowing for automatic shutdown and power management. Trust UPSBuyer for dependable power solutions tailored to UK business needs.

Features & Benefits

  • UK-specific design: Equipped with hardwired input and output connections for seamless integration.
  • Reliable backup power: Provides up to 10 minutes of runtime at 50% load, safeguarding critical equipment.
  • Compact 3U rackmount form factor: Saves valuable space in IT environments.
  • Surge protection: Protects connected devices from power surges and spikes.
  • USB and serial connectivity: HID-compliant ports enable automatic shutdown and power management.
  • User-replaceable battery: Simplifies maintenance and extends UPS lifespan.
  • Advanced Battery Management (ABM+): Enhances battery performance and longevity.
  • Supplied by UPSBuyer: Your trusted UK partner for quality power protection solutions.

General specifications

Product Name Eaton 9PX UPS
Catalog Number 9PX2200IRTBPH
Model Code Eaton 9PX 2200i RT3U HotSwap HW
UPC 743172081483
Product Length/Depth 48.5 cm
Product Height 13 cm
Product Width 44 cm
Product Weight 24.52 kg
Warranty 3 year on electronics, 2 year on battery
Compliances CE Marked
TUV
cULus Listed
CSA 22.2
FCC part 15 Class B
CISPR22 Class B
Certifications cULus Listed
EAC
CE
ENERGY STAR certified
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
Model Code Eaton 9PX 2200i RT3U HotSwap HW

Product specifications

Secondary frequency - max 60 Hz
Output waveform Sine wave
Max number of battery packs 4
Wattage 2200 W
Output power factor 1
Form factor Rack/tower
Voltage distortion output (linear load) - max 3
Includes network card No
Input connection Hardwired/fixed connection
Input voltage - min 100 V
Output voltage - max 240 V
Secondary frequency - min 50 Hz
Software compatibility Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Battery replacement Hot-swappable internal batteries and extended battery modules (EBMs)
Battery type Sealed, lead-acid
Efficiency 93.5
Number of outputs hardwired 1
Special features Double conversion topology
Constantly monitors power conditions and regulates voltage and frequency
First UPS in its class to provide Unity power factor (VA=W)
Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs
Internal bypass allows service continuity in case of UPS fault
Next-generation graphical LCD display
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Meter energy consumption (down to the managed outlet groups)
Hot swappable batteries
Advanced Battery Management (ABM) technology to increase battery lifetime
Long backup time with up to 4 optional EBM
Construction type 482.6 mm (19 inch) device
Output voltage - min 200 V
Color Black/silver
Extended battery capability Yes
Output voltage range 200/208/220/230/240 V +/- 1%
Topology Online/Double-conversion
BTU Rating Online: 488
Efficiency (eco-mode) 98
Runtime at half load 10 min
Input nominal voltage 230V default (200/208/220/230/240V)
Input power factor >.99
Input frequency range 40-70 Hz
Internal bypass Yes
Input voltage - max 276 V
Voltage type AC
Phase (output) 1
Battery management ABM & Temperature compensated charging method (user selectable)
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
Auto shutdown function Yes
VA rating 2200 VA
Potential free switch contact Yes
Receptacle Hardwired
Phase (input) 1
Package contents UPS
Input cable
Maintenance Bypass
(2) IEC-IEC output cables
USB cable
Serial cable
(2) brackets for 19’ mounting
(2) Rack-mounting kit
(2) Supports for tower mounting
Cable locking system
Safety instructions
Quickstart guide
Noise level <40 dB at 1 meter
Feed type 1
User interface Multilingual graphical LCD display
Battery quantity 6
Rack size 3U
Voltage 230V
Hot swap power Yes
Temperature range 0° to 40°C (32° to 104°F)
Ethernet interface No
Communication USB port (HID compliant)
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Mini-terminal block for output relay
Dry contacts (3 outputs, 1 input, optocoupler, DB9)
Relative humidity 0-96% non-condensing
Rack mounting kit Yes
Output frequency 50/60 Hz
Runtime at full load 3 min
Type of interface Other
Primary frequency - min 40 Hz
Battery rating 12 V / 7 Ah
Type UPS
Output nominal voltage 230V default (200/208/220/230/240V)
Expansion slots One slot for optional communication card
Input voltage range 176-276 V (100-276 V with derating)
Nominal frequency 50/60 Hz
Primary frequency - max 70 Hz
Altitude 3000 m
