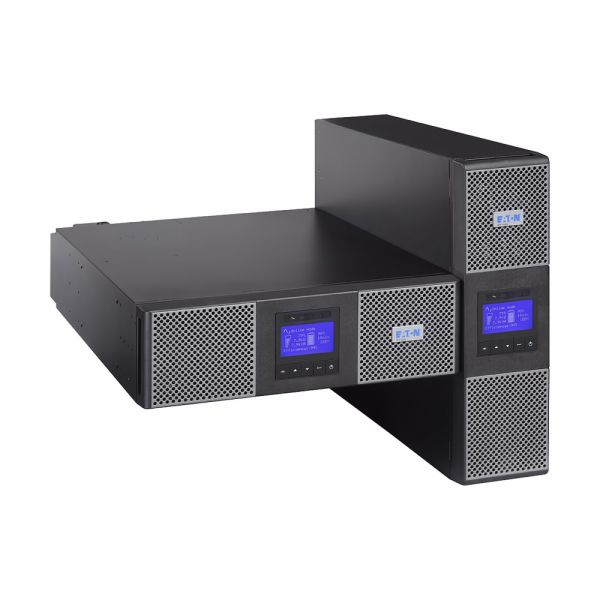

Eaton 9PX 6kVA 230V Online UPS, Rack/Tower 3U, HotSwap MBP

Free Express Delivery Over £99*  (1 - 2 Days)
Availability: In stock
SKU:
9PX6KIBP
MPN:
9PX6KIBP
£3,637.19 £3,030.99

The Eaton 9PX UPS offers energy-efficient power protection for small and medium-sized data centres, IT rooms, and infrastructure. For IT and building managers concerned about rising energy expenses, the 9PX is the ideal UPS. It provides double-conversion protection while consuming 40% less energy than a standard UPS.

Free Express Delivery Over £99*  (1 - 2 Days)
Seen this product cheaper elsewhere? Let us know
Enter the details of the other product you found

The Eaton 9PX UPS offers energy-efficient power protection for small and medium-sized data centres, IT rooms, and infrastructure. For IT and building managers concerned about rising energy expenses, the 9PX is the ideal UPS. It provides double-conversion protection while consuming 40% less energy than a standard UPS.

Compared to any other UPS in its class, the 9PX has a power factor of 0.9, delivering 28% more power. It provides more power to servers than other UPSs with comparable VA ratings and lower power factors of the same capacity. In terms of energy and cooling savings, the 9PX is Energy Star rated.

The UPS status and measurements may be clearly seen on a single screen thanks to the graphical LCD display. Additional setup options are available as well. 9PX has the capability to track energy usage down to the individual outlets in a managed outlet group. Eaton's Intelligent PowerTM Software or the LCD display can be used to keep track of kWh values. In order to make the battery last longer, load segment control makes sure that non-essential equipment is turned off first.

Serial and USB ports are included on the 9PX, and an additional slot is available for an optional communication card. Intelligent Power Software from Eaton is compatible with a wide range of major virtualization and cloud orchestration platforms.

Features & Benefits:

  • Output power capacity: 5400 Watts / 6kVA
  • 8-minute typical backup time at 70%
  • 3U Rack Height
  • HotSwap Maintenance Bypass
  • Produces pure sinewave output
  • With a 0.9 power factor, it protects more devices
  • Status and measurement LCD display
  • Versatile rack or tower installation
  • 1 optional communication card slot (network management card, relay card or network and industrial card)
  • Fully compatible with Eaton Intelligent Power Manager
  • 1 USB port and 1 serial port
  • Advanced Battery Management (ABM) technology extends battery life
  • Hot-swappable batteries
  • Up to 4 external hot-swappable battery modules can be added to extend runtime
  • Remote ON/OFF, Remote power OFF and Relay output
  • An internal bypass allows service continuity in case of internal fault
  • Two-year warranty
  • Output Connections - Terminal block, 3 IEC C13 (10 A), 2 IEC C19 (16 A)
  • Input Connections - Terminal block (up to 10 mm²)

Please Note; Rack Kit (9RK) sold separately

General Specifications
Product NameEaton 9PX UPS
Catalog Number9PX6KIBP
Model CodeEaton 9PX 6000i HotSwap
UPC743172040176
Product Length/Depth68.5 cm
Product Height44 cm
Product Width13 cm
Product Weight48 kg
Warranty2 year
CompliancesCE Marked,TUV,cULus Listed,CSA 22.2
CertificationsUL 1778,IEC/EN 62040-1,IEC/EN 62040-2,CE,cULus Listed,EAC
Model CodeEaton 9PX 6000i HotSwap
Battery
Runtime graphView runtime graph
Battery managementABM & Temperature compensated charging method (user selectable),Automatic battery test,Deep discharge protection,Automatic recognition of external battery units
Battery replacementHot-swappable internal batteries and extended battery modules (EBMs)
Battery quantity15
Battery rating12 V / 5 Ah
Battery typeSealed, lead-acid
Extended battery capabilityYes
Electrical Output
Receptacle(3) C13, (2) C19, Hardwired
Output power factor0.9
Output waveformSine wave
Voltage230V
VA rating6000 VA
Wattage5400 W
Output nominal voltage230V default (200/208/220/230/240V)
Voltage distortion output (linear load) - max2
Output frequency50/60 Hz
Feed type1
TopologyOnline/Double-conversion
Electrical Input
Input connectionHardwired/fixed connection
Input nominal voltage230V default (200/208/220/230/240V)
Input voltage range176-276 V (100-276 V with derating)
Nominal frequency50/60 Hz
Input frequency range40-70 Hz
Input power factor>.99
Communications
CommunicationUSB port (HID compliant),Serial port (RS232),Mini terminal block for remote On/Off,Mini-terminal block for remote power off,Dry contacts (4 outputs, relay, DB9),DB15 for parallel operation
Expansion slotsOne slot for optional communication card
Ethernet interfaceNo
Includes network cardNo
Software compatibilityEaton Intelligent Power Manager, Eaton Intelligent Power Protector
User interfaceMultilingual graphical LCD display
Type of interfaceOther
Potential free switch contactYes
Environmental
Altitude3000 m
BTU RatingOnline: 1105
Noise level<45 dB at 1 meter
Relative humidity0-95% non-condensing
Temperature range0° to 40°C (32° to 104°F)
Additional Specifications
Form factorRack/tower
Rack size3U
Construction typeFree standing model
ColorBlack/silver
Rack mounting kitNo
Package contentsUPS,(2) IEC-IEC output cables,Maintenance Bypass,USB cable,Serial cable,(2) Supports for tower mounting,Cable locking system,Safety instructions,Quickstart guide
Efficiency94
Phase (input)1
Phase (output)1
Internal bypassYes
Hot swap powerYes
Auto shutdown functionYes
