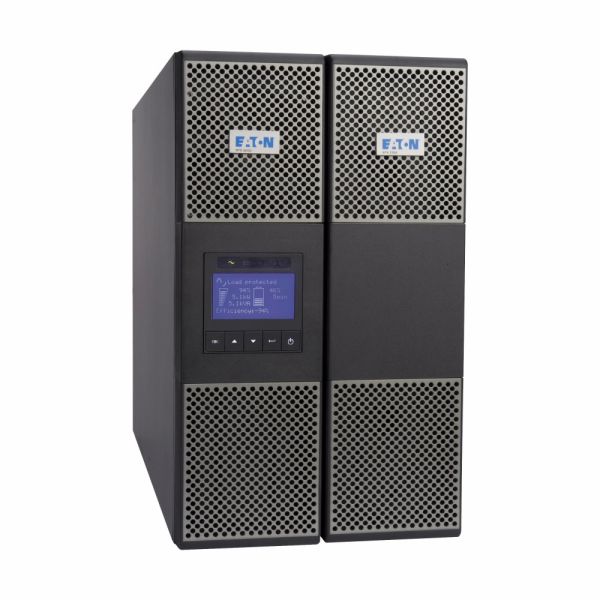

Eaton 9PX11KIRTNBP31 9PX 11kVA/10kW 400V 3:1 Online UPS, RT 6U, HotSwap MBP Netpack

Call for availability 0800 2545655

Call for availability 0800 2545655

SKU:
9PX11KIRTNBP31
MPN:
9PX11KIRTNBP31
£7,158.02 £5,965.02
  • Runtime at 70% load: UPS only 6m / 1 EBM 17m / 2 EBMs 28m / 3 EBMs 42m / 4 EBMs 54m / 5 EBMs 68m / 6 EBMs 82 / 7 EBMs 96m / 8 EBMs 109m / 9 EBMs 123m / 10 EBMs 136m / 11 EBMs 149m
  • Online double-conversion technology to constantly monitor power conditions & regulate voltage & frequency
  • Internal bypass allows service continuity in case of internal fault
  • 0.9 power factor delivers 28% more power than other UPSs in its class
  • Versatile 6U rack/tower format (includes rack-mounting kit)
  • Innovative graphical LCD display brings all operating information at first sight
  • Load segment control enables prioritised shutdowns of non-essential equipment during outages
  • Parallel operation using HotSync technology
  • Eaton ABM battery management technology
  • Hot-swappable internal batteries
  • External hot-swappable battery modules can be added for longer power availability
  • Maintenance Bypass
  • (1) USB port, (1) RS232 serial port (USB & RS232 ports cannot be used simultaneously), (4) dry contacts (DB9), (1) mini terminal block for remote On/Off & (1) for remote power Off, (1) DB15 for parallel operation
  • (1) slot for Network-M2 (included), Network-MS, ModBus-MS or Relay-MS management cards
  • Input: Terminal block (three-phase)
  • Output: Terminal block + (4) IEC C19 (16 A)
  • 2-year warranty on electronics & batteries
Free Express Delivery Over £99*  (1 - 2 Days)

The Eaton 9PX UPS offers energy-efficient power protection for small and medium-sized data centres, IT rooms, and infrastructure. For IT and building managers concerned about rising energy expenses, the 9PX is the ideal UPS. It provides double-conversion protection while consuming 40% less energy than a standard UPS.

Compared to any other UPS in its class, the 9PX has a power factor of 0.9, delivering 28% more power. It provides more power to servers than other UPSs with comparable VA ratings and lower power factors of the same capacity. In terms of energy and cooling savings, the 9PX is Energy Star rated.

The UPS status and measurements may be clearly seen on a single screen thanks to the graphical LCD display. Additional setup options are available as well. 9PX has the capability to track energy usage down to the individual outlets in a managed outlet group. Eaton's Intelligent PowerTM Software or the LCD display can be used to keep track of kWh values. In order to make the battery last longer, load segment control makes sure that non-essential equipment is turned off first.

Serial and USB ports are included on the 9PX, and an additional slot is available for an optional communication card. Intelligent Power Software from Eaton is compatible with a wide range of major virtualization and cloud orchestration platforms.

Features & Benefits:

  • Output power capacity: 10000 Watts / 11kVA
  • Runtime at 70% load: UPS only 6m / 1 EBM 17m / 2 EBMs 28m / 3 EBMs 42m / 4 EBMs 54m / 5 EBMs 68m / 6 EBMs 82 / 7 EBMs 96m / 8 EBMs 109m / 9 EBMs 123m / 10 EBMs 136m / 11 EBMs 149m
  • Online double-conversion technology to constantly monitor power conditions & regulate voltage & frequency
  • Internal bypass allows service continuity in case of internal fault
  • 0.9 power factor delivers 28% more power than other UPSs in its class
  • Versatile 6U rack/tower format (includes rack-mounting kit)
  • Innovative graphical LCD display brings all operating information at first sight
  • Load segment control enables prioritised shutdowns of non-essential equipment during outages
  • Parallel operation using HotSync technology
  • Eaton ABM battery management technology
  • Hot-swappable internal batteries
  • External hot-swappable battery modules can be added for longer power availability
  • Maintenance Bypass
  • (1) USB port, (1) RS232 serial port (USB & RS232 ports cannot be used simultaneously), (4) dry contacts (DB9), (1) mini terminal block for remote On/Off & (1) for remote power Off, (1) DB15 for parallel operation
  • (1) slot for Network-M2 (included), Network-MS, ModBus-MS or Relay-MS management cards
  • Input: Terminal block (three-phase)
  • Output: Terminal block + (4) IEC C19 (16 A)
  • 2-year warranty on electronics & batteries

General specifications

Product Name Eaton 9PX UPS
Catalog Number 9PX11KIRTNBP31
Model Code Eaton 9PX 11000i 3:1 RT6U HotSwap Net.
UPC 743172045270
Product Length/Depth 70 cm
Product Height 26 cm
Product Width 44 cm
Product Weight 88 kg
Warranty 2 year
Compliances CE Marked
TUV
Certifications IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
Model Code Eaton 9PX 11000i 3:1 RT6U HotSwap Net.

Product specifications

Secondary frequency - max 60 Hz
Output waveform Sine wave
Max number of battery packs 12 (supercharger required for more than 6 EBM)
Wattage 10 kW
Output power factor 0.9
Form factor Rack/tower
Voltage distortion output (linear load) - max 2
Includes network card Yes
Input connection Hardwired/fixed connection
Input voltage - min 480 V
Output voltage - max 250 V
Secondary frequency - min 50 Hz
Software compatibility Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Battery replacement Hot-swappable battery modules
Battery type Sealed, lead-acid
Efficiency 95
Number of outputs hardwired 1
Special features Double conversion topology
Constantly monitors power conditions and regulates voltage and frequency
Provides more real power (watts) to protect more equipment with a 0.9 power factor
Energy efficient, reduce energy and cooling costs
Internal bypass allows service continuity in case of UPS fault
Next-generation graphical LCD display
Network card and rackmounting kit delivered as standard
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Meter energy consumption (at the UPS level)
Parallel operation using HotSync technology
Hot swappable batteries
Construction type 482.6 mm (19 inch) device
Output voltage - min 200 V
Color Black/silver
Extended battery capability Yes
Output voltage range 200/208/220/230/240/250 V +/- 1%
Topology Online/Double-conversion
BTU Rating Online: 2047
Efficiency (eco-mode) 98
Runtime at half load 10 min
Input nominal voltage 400V default (380/400/415V)
Input power factor >.99
Input frequency range 40-70 Hz
Internal bypass Yes
Input voltage - max 305 V
Voltage type AC
Phase (output) 1
Battery management ABM & Temperature compensated charging method (user selectable)
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
Integrated functionality Network Mangement
Auto shutdown function Yes
Number of Outputs C19 4
VA rating 11 kVA
Potential free switch contact Yes
Receptacle (4) C19, Hardwired
Phase (input) 3
Package contents Power Module
Extended battery module (EBM)
Maintenance Bypass
Network Management Card
(2) brackets for 19’ mounting
(2) Rack-mounting kit
USB cable
Serial cable
Battery cable with comms for automatic battery cabinet recognition
(2) Supports for tower mounting
Link plate
Safety instructions
Quickstart guide
Noise level <50 dB at 1 meter
Feed type 2
User interface Multilingual graphical LCD display
Battery quantity 20
Rack size 6U
Voltage 400V
Hot swap power Yes
Temperature range 0° to 40°C (32° to 104°F)
Ethernet interface Yes
Protocol SNMP
Communication USB port (HID compliant)
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Dry contacts (4 outputs, relay, DB9)
Network card
Relative humidity 0-95% non-condensing
Rack mounting kit Yes
Output frequency 50/60 Hz
Runtime at full load 3 min
Type of interface Other
Primary frequency - min 40 Hz
Battery rating 12 V / 9 Ah
Type UPS
Output nominal voltage 230V default (200/208/220/230/240/250V)
Expansion slots One slot, network card included
Input voltage range 305-480 V
Nominal frequency 50/60 Hz
Primary frequency - max 70 Hz
Altitude 3000 m
