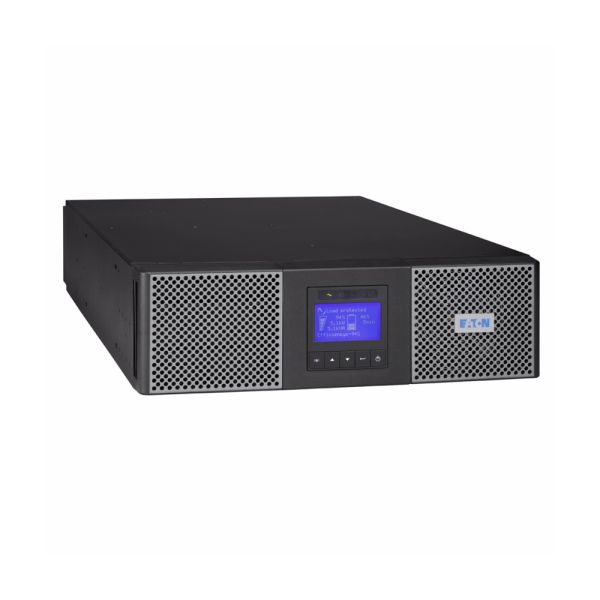

The Eaton 9PX UPS offers energy-efficient power protection for small and medium-sized data centres, IT rooms, and infrastructure. For IT and building managers concerned about rising energy expenses, the 9PX is the ideal UPS. It provides double-conversion protection while consuming 40% less energy than a standard UPS.
Compared to any other UPS in its class, the 9PX has a power factor of 0.9, delivering 28% more power. It provides more power to servers than other UPSs with comparable VA ratings and lower power factors of the same capacity. In terms of energy and cooling savings, the 9PX is Energy Star rated.
The UPS status and measurements may be clearly seen on a single screen thanks to the graphical LCD display. Additional setup options are available as well. 9PX has the capability to track energy usage down to the individual outlets in a managed outlet group. Eaton's Intelligent PowerTM Software or the LCD display can be used to keep track of kWh values. In order to make the battery last longer, load segment control makes sure that non-essential equipment is turned off first.
Serial and USB ports are included on the 9PX, and an additional slot is available for an optional communication card. Intelligent Power Software from Eaton is compatible with a wide range of major virtualization and cloud orchestration platforms.
Features & Benefits:
Please Note; Rack Kit (9RK) sold separately
General specifications | |
|---|---|
| Product Name | Eaton 9PX UPS |
| Catalog Number | 9PX8KIPM |
| UPC | 743172039361 |
| Product Length/Depth | 70 cm |
| Product Height | 44 cm |
| Product Width | 13 cm |
| Product Weight | 19 kg |
| Warranty | 2 year |
| Compliances | CE Marked, TUV, cULus Listed, CSA 22.2 |
| Certifications | IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, cULus Listed, EAC |
Battery | |
| Runtime graph | View runtime graph |
| Battery management | ABM & Temperature compensated charging method (user selectable), Automatic battery test, Deep discharge protection, Automatic recognition of external battery units |
| Battery replacement | No battery |
| Battery quantity | 0 |
| Extended battery capability | Yes |
Electrical output | |
| Receptacle | Hardwired |
| Output power factor | 0.9 |
| Output waveform | Sine wave |
| Voltage | 230V |
| VA rating | 8 kVA |
| Wattage | 7.2 kW |
| Output nominal voltage | 230V default (200/208/220/230/240/250V) |
| Voltage distortion output (linear load) - max | 2 |
| Output frequency | 50/60 Hz |
| Feed type | 1 |
| Topology | Online/Double-conversion |
Electrical input | |
| Input connection | Hardwired/fixed connection |
| Input nominal voltage | 230V default (200/208/220/230/240/250V) |
| Input voltage range | 176-276 V (100-276 V with derating) |
| Nominal frequency | 50/60 Hz |
| Input frequency range | 40-70 Hz |
| Input power factor | >.99 |
Communications | |
| Communication | USB port (HID compliant), Serial port (RS232), Mini terminal block for remote On/Off, Mini-terminal block for remote power off, Dry contacts (4 outputs, relay, DB9), DB15 for parallel operation |
| Expansion slots | One slot for optional communication card |
| Ethernet interface | No |
| Includes network card | No |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| User interface | Multilingual graphical LCD display |
| Type of interface | Other |
| Potential free switch contact | Yes |
Environmental | |
| Altitude | 3000 m |
| BTU Rating | Online: 1472 |
| Noise level | <48 dB at 1 meter |
| Relative humidity | 0-95% non-condensing |
| Temperature range | 0° to 40°C (32° to 104°F) |
Additional specifications | |
| Form factor | Rack/tower |
| Rack size | 3U |
| Construction type | Free standing model |
| Colour | Black/silver |
| Rack mounting kit | No |
| Package contents | Power Module, USB cable, Serial cable, (2) Supports for tower mounting, Safety instructions, Quickstart guide |
| Efficiency | 95 |
| Phase (input) | 1 |
| Phase (output) | 1 |
| Internal bypass | Yes |
| Hot swap power | No |
| Auto shutdown function | Yes |
