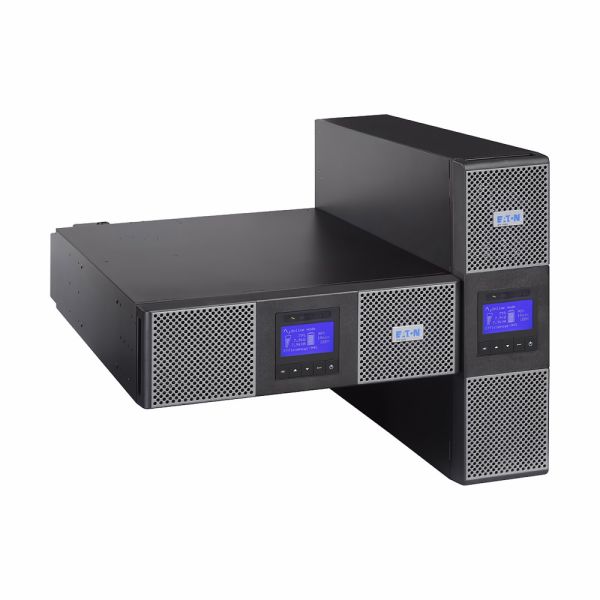

Eaton 9PX6KIRTN 9PX 6kVA/5.4kW 230V Online UPS, RT 3U, Network Card

The Eaton 9PX UPS offers energy-efficient power protection for small and medium-sized data centres, IT rooms, and infrastructure. For IT and building managers concerned about rising energy expenses, the 9PX is the ideal UPS. It provides double-conversion protection while consuming 40% less energy than a standard UPS.

Compared to any other UPS in its class, the 9PX has a power factor of 0.9, delivering 28% more power. It provides more power to servers than other UPSs with comparable VA ratings and lower power factors of the same capacity. In terms of energy and cooling savings, the 9PX is Energy Star rated.

The UPS status and measurements may be clearly seen on a single screen thanks to the graphical LCD display. Additional setup options are available as well. 9PX has the capability to track energy usage down to the individual outlets in a managed outlet group. Eaton's Intelligent PowerTM Software or the LCD display can be used to keep track of kWh values. In order to make the battery last longer, load segment control makes sure that non-essential equipment is turned off first.

Serial and USB ports are included on the 9PX, and an additional slot is available for an optional communication card. Intelligent Power Software from Eaton is compatible with a wide range of major virtualization and cloud orchestration platforms.

Features & Benefits:

• Output power capacity: 5400 Watts / 6kVA
• 8-minute typical backup time at 70%
• 3U Rack Height
• Produces pure sinewave output
• With a 0.9 power factor, it protects more devices
• Status and measurement LCD display
• Versatile rack or tower installation
• Standard network card and rack kit
• Fully compatible with Eaton Intelligent Power Manager
• 1 USB port and 1 serial port
• Advanced Battery Management (ABM) technology extends battery life
• Hot-swappable batteries
• Up to 4 external hot-swappable battery modules can be added to extend runtime
• Remote ON/OFF, Remote power OFF and Relay output
• An internal bypass allows service continuity in case of internal fault
• Two-year warranty
• Output Connections - Terminal block, 2 controlled groups of 4 IEC C13 (10 A), 2 IEC C19 (16 A)
• Input Connections - Terminal block (up to 10 mm²)
