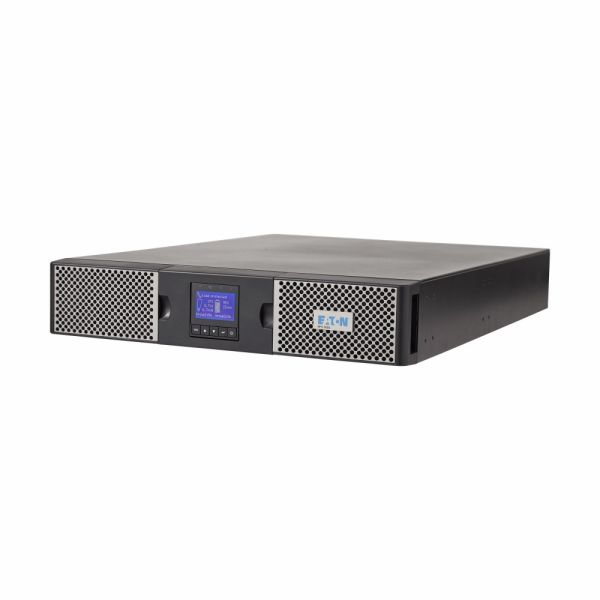

Eaton 9PX3000RT 9PX 3000VA/2700W 120V Online UPS, RT 2U

The Eaton 9PX UPS offers energy-efficient power protection for small and medium-sized data centres, IT rooms, and infrastructure. For IT and building managers concerned about rising energy expenses, the 9PX is the ideal UPS. It provides double-conversion protection while consuming 40% less energy than a standard UPS.

In terms of power factor, the 9PX provides a high quality 0.9 VA/W power factor. It provides 11% more power than any other UPS and can power more servers with equal VA ratings and lower power factors than any other UPS currently available on the market. In terms of energy and cooling savings, the 9PX is Energy Star rated.

The UPS status and measurements may be clearly seen on a single screen thanks to the graphical LCD display. Additional setup options are available as well. 9PX has the capability to track energy usage down to the individual outlets in a managed outlet group. Eaton's Intelligent PowerTM Software or the LCD display can be used to keep track of kWh values. In order to make the battery last longer, load segment control makes sure that non-essential equipment is turned off first.

Serial and USB ports are included on the 9PX, and an additional slot is available for an optional communication card. Intelligent Power Software from Eaton is compatible with a wide range of major virtualization and cloud orchestration platforms.

Features & Benefits:

• Output power capacity: 2700 Watts / 3000VA
• 8.4-minute typical backup time at 1890W
• 2U Rack Height
• Produces pure sinewave output
• With a 0.9 power factor, it protects more devices
• Status and measurement LCD display
• Versatile rack or tower installation
• 1 optional communication card slot (network management card, relay card or network and industrial card)
• Fully compatible with Eaton Intelligent Power Manager
• 1 USB port and 1 serial port
• Advanced Battery Management (ABM) technology extends battery life
• Hot-swappable batteries
• Up to 4 external hot-swappable battery modules can be added to extend runtime
• Remote ON/OFF, Remote power OFF and Relay output
• An internal bypass allows service continuity in case of internal fault
• Two-year warranty
• Output Connections - (6) 5-20R, (1) L5-30R
• Input Connections - L5-30P
