Eaton 9PX2200IRT3UBS 9PX 2200VA/2200W 230V Online UPS, RT 3U

Call for availability 0800 2545655

Call for availability 0800 2545655

SKU:
9PX2200IRT3UBS
MPN:
9PX2200IRT3UBS
£1,622.51 £1,352.09

The Eaton 9PX UPS offers energy-efficient power protection for small and medium-sized data centres, IT rooms, and infrastructure. For IT and building managers concerned about rising energy expenses, the 9PX is the ideal UPS. It provides double-conversion protection while consuming 40% less energy than a standard UPS.

Recommended replacement for 9PX2200IRT3U

Free Express Delivery Over £99*  (1 - 2 Days)

The Eaton 9PX UPS offers energy-efficient power protection for small and medium-sized data centres, IT rooms, and infrastructure. For IT and building managers concerned about rising energy expenses, the 9PX is the ideal UPS. It provides double-conversion protection while consuming 40% less energy than a standard UPS.

In terms of power factor, the 9PX is the first in its class to provide a unity VA/W power factor. It provides 11% more power than any other UPS and can power more servers with equal VA ratings and lower power factors than any other UPS currently available on the market. In terms of energy and cooling savings, the 9PX is Energy Star rated.

The UPS status and measurements may be clearly seen on a single screen thanks to the graphical LCD display. Additional setup options are available as well. 9PX has the capability to track energy usage down to the individual outlets in a managed outlet group. Eaton's Intelligent PowerTM Software or the LCD display can be used to keep track of kWh values. In order to make the battery last longer, load segment control makes sure that non-essential equipment is turned off first.

Serial and USB ports are included on the 9PX, and an additional slot is available for an optional communication card. Intelligent Power Software from Eaton is compatible with a wide range of major virtualization and cloud orchestration platforms.

Recommended replacement for 9PX2200IRT3U

Features & Benefits:

  • Output power capacity: 2200 Watts / 2200VA
  • 9-minute typical backup time at 1200W
  • 3U Rack Height
  • Produces pure sinewave output
  • With a unity W=VA power factor, it protects more devices
  • Status and measurement LCD display

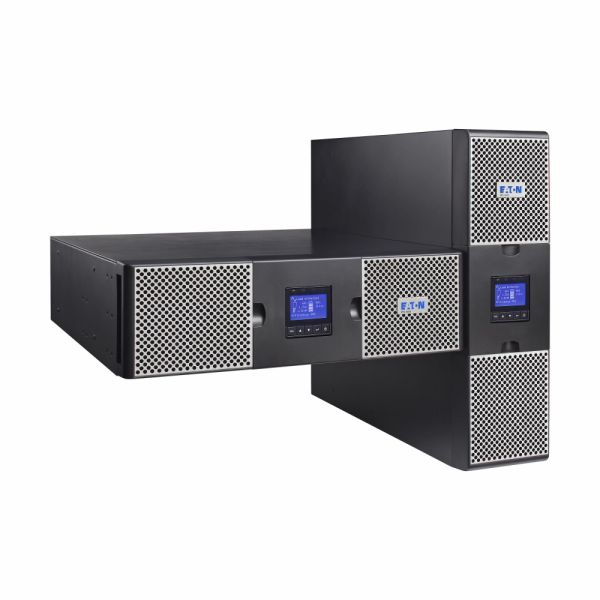

  • Versatile rack or tower installation
  • 1 optional communication card slot (network management card, relay card or network and industrial card)
  • Fully compatible with Eaton Intelligent Power Manager
  • 1 USB port and 1 serial port
  • Advanced Battery Management (ABM) technology extends battery life
  • Hot-swappable batteries
  • Up to 4 external hot-swappable battery modules can be added to extend runtime
  • Remote ON/OFF, Remote power OFF and Relay output
  • An internal bypass allows service continuity in case of internal fault
  • Three-year warranty (2 years on battery)
  • Output Connections - 8 IEC C13 (10A) sockets, 2 IEC C19 (16A) sockets
  • Input Connections - 1 IEC C20 (16A)

General Specifications
Product NameEaton 9PX UPS
Catalog Number9PX2200IRT3UBS
EAN3553340620218
Product Length/Depth770 mm
Product Height230 mm
Product Width580 mm
Product Weight25.46 kg
Warranty3 year on electronics, 2 year on battery
CompliancesCE Marked,TUV,cULus Listed,CSA 22.2,FCC part 15 Class B,CISPR22 Class B
CertificationsIEC/EN 62040-1,UL 1778,IEC/EN 62040-2,cULus Listed,EAC,CE,ENERGY STAR certified
Battery
Runtime graphView runtime graph
Battery managementABM & Temperature compensated charging method (user selectable),Automatic battery test,Deep discharge protection,Automatic recognition of external battery units
Battery replacementHot-swappable internal batteries and extended battery modules (EBMs)
Battery quantity6
Battery rating12 V / 7 Ah
Battery typeSealed, lead-acid
Extended battery capabilityYes
Electrical Output
Receptacle(8) C13, (2) C19
Output power factor1
Output waveformSine wave
Voltage230V
VA rating2200 VA
Wattage2200 W
Output nominal voltage230V default (200/208/220/230/240V)
Voltage distortion output (linear load) - max3
Output frequency50/60 Hz
Feed type1
TopologyOnline/Double-conversion
Electrical Input
Input connectionC20
Input cord length1.8m
Input nominal voltage230V default (200/208/220/230/240V)
Input voltage range176-276 V (100-276 V with derating)
Nominal frequency50/60 Hz
Input frequency range40-70 Hz
Input power factor>.99
Communications
CommunicationUSB port (HID compliant),Serial port (RS232),Mini terminal block for remote On/Off,Mini-terminal block for remote power off,Mini-terminal block for output relay,Dry contacts (3 outputs, 1 input, optocoupler, DB9)
Expansion slotsOne slot for optional communication card
Ethernet interfaceNo
Includes network cardNo
Software compatibilityEaton Intelligent Power Manager, Eaton Intelligent Power Protector
User interfaceMultilingual graphical LCD display
Type of interfaceOther
Potential free switch contactYes
Environmental
Altitude3000 m
BTU RatingOnline: 488
Noise level<40 dB at 1 meter
Relative humidity0-96% non-condensing
Temperature range0° to 40°C (32° to 104°F)
Additional Specifications
Form factorRack/tower
Rack size3U
Construction type482.6 mm (19 inch) device
ColorBlack/silver
Rack mounting kitYes
Package contentsUPS,Input cable,(2) IEC-IEC output cables,USB cable,Serial cable,(2) brackets for 19in mounting,(2) Rack-mounting kit,(2) Supports for tower mounting,Cable locking system,Safety instructions,Quickstart guide,BS input cord
Efficiency93.5
Phase (input)1
Phase (output)1
Internal bypassYes
Hot swap powerNo
Auto shutdown functionYes
