9PX Marine is ideal for marine and offshore settings because of its coated boards and compatibility with high-temperature situations. 9PX Marine is a UPS type recognised by DNV-GL.
9PX Marine is ideal for marine and offshore settings because of its coated boards and compatibility with high-temperature situations. 9PX Marine is a UPS type recognised by DNV-GL. It provides double-conversion protection while consuming 40% less energy than a standard UPS.
In terms of power factor, the 9PX is the first in its class to provide a unity VA/W power factor. It provides 11% more power than any other UPS and can power more servers with equal VA ratings and lower power factors than any other UPS currently available on the market. In terms of energy and cooling savings, the 9PX is Energy Star rated.
The UPS status and measurements may be clearly seen on a single screen thanks to the graphical LCD display. Additional setup options are available as well. 9PX has the capability to track energy usage down to the individual outlets in a managed outlet group. Eaton's Intelligent PowerTM Software or the LCD display can be used to keep track of kWh values. In order to make the battery last longer, load segment control makes sure that non-essential equipment is turned off first.
Serial and USB ports are included on the 9PX, and an additional slot is available for an optional communication card. Intelligent Power Software from Eaton is compatible with a wide range of major virtualization and cloud orchestration platforms.
Features & Benefits:
| General Specifications | |
|---|---|

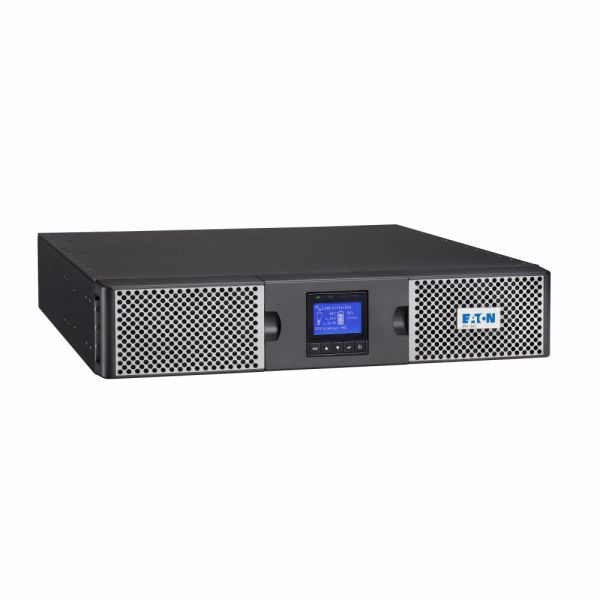

| Product Name | Eaton 9PX marine UPS |
| Catalog Number | 9PX1500IRTM |
| Model Code | Eaton 9PX 1500i RT2U Marine |
| UPC | 743172081230 |
| Product Length/Depth | 45 cm |
| Product Height | 8.65 cm |
| Product Width | 44 cm |
| Product Weight | 18.9 kg |
| Warranty | 3 year on electronics, 2 year on battery |
| Compliances | CISPR22 Class B,FCC part 15 Class B,CE Marked,TUV,cULus Listed,CSA 22.2 |
| Certifications | cULus Listed,DNV GL Certified,EAC,UL 1778,IEC/EN 62040-1,CE,ENERGY STAR certified,IEC/EN 62040-2 |
| Model Code | Eaton 9PX 1500i RT2U Marine |
| Product Specifications | |
| Secondary frequency - max | 60 Hz |
| Output waveform | Sine wave |
| Max number of battery packs | 4 |
| Wattage | 1500 W |
| Output power factor | 1 |
| Form factor | Rack/tower |
| Voltage distortion output (linear load) - max | 3 |
| Includes network card | No |
| Input connection | C14 |
| Input voltage - min | 100 V |
| Output voltage - max | 240 V |
| Secondary frequency - min | 50 Hz |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Battery replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Battery type | Sealed, lead-acid |
| Efficiency | 92.5 |
| Construction type | 482.6 mm (19 inch) device |
| Output voltage - min | 200 V |
| Color | Black/silver |
| Extended battery capability | Yes |
| Output voltage range | 200/208/220/230/240 V +/- 1% |
| Topology | Online |
| BTU Rating | Online: 386 |
| Efficiency (eco-mode) | 97.5 |
| Back-up time | 14 min |
| Input nominal voltage | 230V default (200/208/220/230/240V) |
| Input power factor | >.99 |
| Input frequency range | 40-70 Hz |
| Internal bypass | Yes |
| Input voltage - max | 276 V |
| Voltage type | AC |
| Phase (output) | 1 |
| Battery management | ABM & Temperature compensated charging method (user selectable),Automatic battery test,Deep discharge protection,Automatic recognition of external battery units |
| Auto shutdown function | Yes |
| Number of Outputs C13 | 8 |
| VA rating | 1500 VA |
| Potential free switch contact | Yes |
| Receptacle | (8) C13 |
| Phase (input) | 1 |
| Package contents | UPS,(2) IEC-IEC output cables,USB cable,Serial cable,(2) brackets for 19in mounting,(2) Rack-mounting kit,(2) Supports for tower mounting,Cable locking system,Safety instructions,Quickstart guide |
| Noise level | <35 dB at 1 meter |
| Feed type | 1 |
| Runtime graph | View runtime graph |
| User interface | Multilingual graphical LCD display |
| Battery quantity | 4 |
| Rack size | 2U |
| Voltage | 230V |
| Hot swap power | No |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Ethernet interface | No |
| Communication | USB port (HID compliant),Serial port (RS232),Mini terminal block for remote On/Off,Mini-terminal block for remote power off,Mini-terminal block for output relay,Dry contacts (3 outputs, 1 input, optocoupler, DB9) |
| Relative humidity | 0-96% non-condensing |
| Rack mounting kit | Yes |
| Output frequency | 50/60 Hz |
| Runtime at full load | 5 min |
| Type of interface | Other |
| Primary frequency - min | 40 Hz |
| Battery rating | 12 V / 9 Ah |
| Type | UPS |
| Output nominal voltage | 230V default (200/208/220/230/240V) |
| Expansion slots | One slot for optional communication card |
| Input voltage range | 176-276 V (100-276 V with derating) |
| Nominal frequency | 50/60 Hz |
| Primary frequency - max | 70 Hz |
| Altitude | 3000 m |
