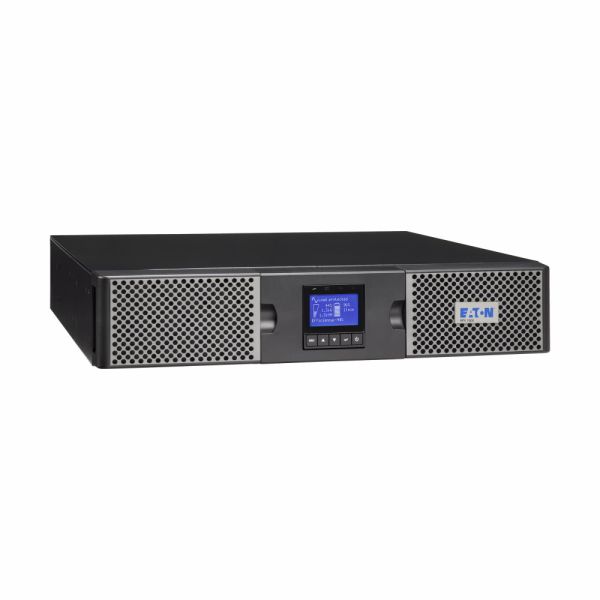

The Eaton 9PX UPS offers energy-efficient power protection for small and medium-sized data centres, IT rooms, and infrastructure. For IT and building managers concerned about rising energy expenses, the 9PX is the ideal UPS. It provides double-conversion protection while consuming 40% less energy than a standard UPS.
Recommended replacement for 9PX1000IRT2U
The Eaton 9PX UPS offers energy-efficient power protection for small and medium-sized data centres, IT rooms, and infrastructure. For IT and building managers concerned about rising energy expenses, the 9PX is the ideal UPS. It provides double-conversion protection while consuming 40% less energy than a standard UPS.
In terms of power factor, the 9PX is the first in its class to provide a unity VA/W power factor. It provides 11% more power than any other UPS and can power more servers with equal VA ratings and lower power factors than any other UPS currently available on the market. In terms of energy and cooling savings, the 9PX is Energy Star rated.
The UPS status and measurements may be clearly seen on a single screen thanks to the graphical LCD display. Additional setup options are available as well. 9PX has the capability to track energy usage down to the individual outlets in a managed outlet group. Eaton's Intelligent PowerTM Software or the LCD display can be used to keep track of kWh values. In order to make the battery last longer, load segment control makes sure that non-essential equipment is turned off first.
Serial and USB ports are included on the 9PX, and an additional slot is available for an optional communication card. Intelligent Power Software from Eaton is compatible with a wide range of major virtualization and cloud orchestration platforms.
Recommended replacement for 9PX1000IRT2U
Features & Benefits:
| General Specifications | |
|---|---|
| Product Name | Eaton 9PX UPS |
| Catalog Number | 9PX1000IRT2UBS |
| Model Code | Eaton 9PX 1000i RT2U w/ BS Cord 10A |
| EAN | 3553340620294 |
| Product Length/Depth | 570 mm |
| Product Height | 500 mm |
| Product Width | 320 mm |
| Product Weight | 37.5 kg |
| Warranty | 3 year on electronics, 2 year on battery |
| Compliances | CE Marked, TUV, cULus Listed, CSA 22.2, FCC part 15 Class B, CISPR22 Class B |
| Certifications | IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, cULus Listed, EAC, ENERGY STAR certified |
| Model Code | Eaton 9PX 1000i RT2U w/ BS Cord 10A |
| Battery | |
| Runtime graph | View runtime graph |
| Battery management | ABM & Temperature compensated charging method (user selectable), Automatic battery test, Deep discharge protection, Automatic recognition of external battery units |
| Battery replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Battery quantity | 4 |
| Battery rating | 12 V / 7 Ah |
| Battery type | Sealed, lead-acid |
| Extended battery capability | Yes |
| Electrical Output | |
| Receptacle | (8) C13 |
| Output power factor | 1 |
| Output waveform | Sine wave |
| Voltage | 230V |
| VA rating | 1000 VA |
| Wattage | 1000 W |
| Output nominal voltage | 230V default (200/208/220/230/240V) |
| Voltage distortion output (linear load) - max | 3 |
| Output frequency | 50/60 Hz |
| Feed type | 1 |
| Topology | Online/Double-conversion |
| Electrical Input | |
| Input connection | C14 |
| Input nominal voltage | 230V default (200/208/220/230/240V) |
| Input voltage range | 176-276 V (100-276 V with derating) |
| Nominal frequency | 50/60 Hz |
| Input frequency range | 40-70 Hz |
| Input power factor | >.99 |
| Communications | |
| Communication | USB port (HID compliant), Serial port (RS232), Mini terminal block for remote On/Off, Mini-terminal block for remote power off, Mini-terminal block for output relay, Dry contacts (3 outputs, 1 input, optocoupler, DB9) |
| Expansion slots | One slot for optional communication card |
| Ethernet interface | No |
| Includes network card | No |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| User interface | Multilingual graphical LCD display |
| Type of interface | Other |
| Potential free switch contact | Yes |
| Environmental | |
| Altitude | 3000 m |
| BTU Rating | Online: 290 |
| Noise level | <35 dB at 1 meter |
| Relative humidity | 0-96% non-condensing |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Additional Specifications | |
| Form factor | Rack/tower |
| Rack size | 2U |
| Construction type | 482.6 mm (19 inch) device |
| Color | Black/silver |
| Rack mounting kit | Yes |
| Package contents | UPS, (2) IEC-IEC output cables, USB cable, Serial cable, (2) brackets for 19in mounting, (2) Rack-mounting kit, (2) Supports for tower mounting, Cable locking system, Safety instructions, Quickstart guide, BS input cord |
| Efficiency | 91.5 |
| Phase (input) | 1 |
| Phase (output) | 1 |
| Internal bypass | Yes |
| Hot swap power | No |
| Auto shutdown function | Yes |
Eaton 9PX 1000-3000W UPS - Datasheet
Eaton UPS and battery services
Eaton UPS Services Quick Guide 2021
EU declaration of conformity Eaton 9PX UPS
Eaton 9PX 1-3 kVA UPS - Quick Start Guide
9PX 700-3000 VA 2U UPS user guide
Eaton 9PX 1-3 kVA UPS and 9PX EBM 48V and 72V - Installation and user manual
