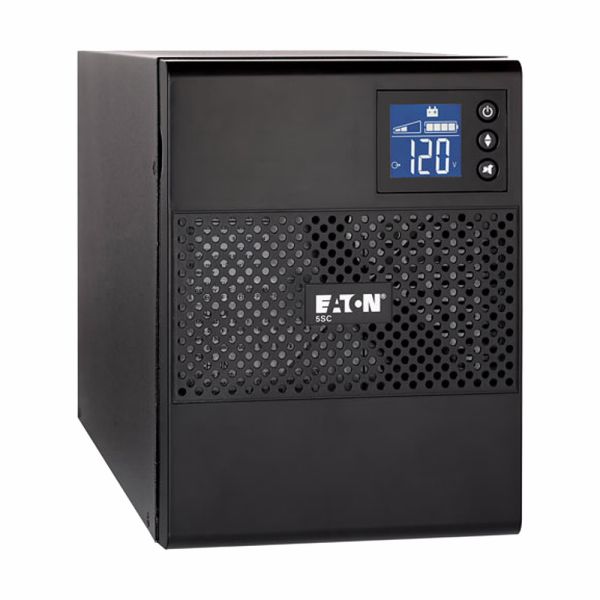

Eaton 5SC750IBS 5SC 750VA/525W 230V Line Interactive UPS

3 in stock for 1-2 Day Delivery

3 in stock for 1-2 Day Delivery

SKU:
5SC750IBS
MPN:
5SC750IBS
£251.80 £209.83

The Eaton 5SC UPS provides line-interactive, inexpensive, and reliable protection for small business servers in any installation situation.

Recommended replacement for 5SC750I

Free Express Delivery Over £99*  (1 - 2 Days)

The Eaton 5SC UPS provides line-interactive, inexpensive, and reliable protection for small business servers in any installation situation. In battery mode, the 5SC offers a high-quality output signal for sensitive equipment such as active PFC (power factor corrected) servers. The Buck and Boost functions correct a wide range of input voltage variations without batteries.

The LCD interface shows the UPS's input and output voltage, load and battery level, and anticipated runtime. Configuration options include output voltage, audible alarm, and sensitivity. The 5SC has USB and serial ports. The USB port is HID-compliant for Windows, Mac OS, and Linux.

For more versatility, this tower has a generous number of outlets and is small enough to fit in tiny spaces (kiosks, cash machines, ticket machines). In addition, Eaton's Intelligent Power Technologies Suite is compatible with virtualization software.

Recommended replacement for 5SC750I

Features & Benefits:

  • Output power capacity: 525 Watts / 750VA
  • 9-minute battery runtime at 70% load
  • Automatic Voltage Regulation (AVR)
  • Produces pure sinewave output
  • Status and measurement LCD display
  • Affordable UPS for servers, networking, and storage
  • The compact tower design saves space
  • Fully compatible with Eaton Intelligent Power Manager
  • 1 USB port and 1 serial port
  • Advanced Battery Management (ABM) technology extends battery life
  • Hot-swappable batteries
  • Two-year warranty
  • Output Connections - 6 IEC C13 (10A)
  • Input Connections - 1 IEC C14 (10A)

General Specifications
Product NameEaton 5SC UPS
Catalog Number5SC750IBS
Model CodeEaton 5SC 750i w/ BS Cord 10A
EAN3553340620409
Product Length/Depth480 mm
Product Height310 mm
Product Width240 mm
Product Weight11.5 kg
Warranty2 year
CompliancesCE MarkedTUV
CertificationscTUVus,IEC/EN 62040-1,UL 1778,IEC/EN 62040-2,CE,EAC
Model CodeEaton 5SC 750i w/ BS Cord 10A
Product Specifications
Secondary frequency - max60 Hz
Output waveformSine wave
Wattage525 W
Output power factor0.7
Form factorTower
EnclosureBlack
Includes network cardNo
Input connectionC14
Input voltage - min184 V
Output voltage - max240 V
Secondary frequency - min50 Hz
Software compatibilityEaton Intelligent Power Protector
Battery replacementUser replaceable
Battery typeLead-acid maintenance-free (replaceable)
Efficiency96
Construction typeFree standing model
Output voltage - min220 V
ColorBlack
Extended battery capabilityNo
Output voltage range230 V (+6%/-10%)
TopologyLine-interactive
BTU RatingOnline: 106
Back-up time12.5 min
Input nominal voltage230V default (220/230/240V)
Input frequency range45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system)
Input voltage - max276 V
Voltage typeAC
Phase (output)1
Battery managementABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
Auto shutdown functionYes
Number of Outputs C136
VA rating750 VA
Potential free switch contactNo
Receptacle(6) C13
Phase (input)1
Package contentsUSB cable, Serial cable, (2) IEC-IEC cables, Quickstart guide, Safety instructions, BS input cord
Noise level<40 dB at 1 meter
Feed type1
Runtime graphView runtime graph
User interfaceLCD Display
Battery quantity2
Voltage230V
Temperature range0-90% non-condensing
Ethernet interfaceNo
CommunicationUSB port (HID compliant), Serial port (RS232)
Relative humidity0-90% non-condensing
Rack mounting kitNo
Output frequency50/60 Hz
Runtime at full load5 min
Type of interfaceOther
Primary frequency - min45 Hz
Battery rating12 V / 7 Ah
TypeUPS
Output nominal voltage230V default (220/230/240V)
Expansion slotsNo
Input voltage range184-276 V
Nominal frequency50-60 Hz
Primary frequency - max65 Hz
Altitude2000 m
