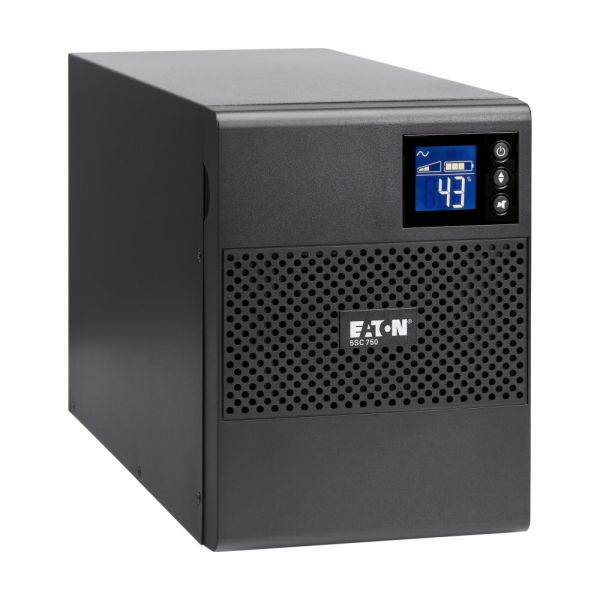

The Eaton 5SC UPS provides line-interactive, inexpensive, and reliable protection for small business servers in any installation situation.
The Eaton 5SC UPS provides line-interactive, inexpensive, and reliable protection for small business servers in any installation situation. In battery mode, the 5SC offers a high-quality output signal for sensitive equipment such as active PFC (power factor corrected) servers. The Buck and Boost functions correct a wide range of input voltage variations without batteries.
The LCD interface shows the UPS's input and output voltage, load and battery level, and anticipated runtime. Configuration options include output voltage, audible alarm, and sensitivity. The 5SC has USB and serial ports. The USB port is HID-compliant for Windows, Mac OS, and Linux.
For more versatility, this tower has a generous number of outlets and is small enough to fit in tiny spaces (kiosks, cash machines, ticket machines). In addition, Eaton's Intelligent Power Technologies Suite is compatible with virtualization software.
Features & Benefits:
| General Specifications | |
|---|---|
| Product Name | Eaton 5SC UPS |
| Catalog Number | 5SC750 |
| UPC | 743172045096 |
| Product Length/Depth | 13.4 in |
| Product Height | 8.2 in |
| Product Width | 5.9 in |
| Product Weight | 23.1 lb |
| Warranty | 3 year factory warranty with online product registration |
| Compliances | CE Marked |
| Certifications | NOM,IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A,cULus Listed |
| Battery | |
| Runtime graph | View runtime graph |
| Battery management | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
| Extended battery capability | Not available |
| Electrical Output | |
| Receptacle | (6) 5-15R |
| Output nominal voltage | 100/110/120V |
| VA rating | 750 VA |
| Wattage | 525 W |
| Topology | Line-interactive |
| Electrical Input | |
| Input connection | 5-15P |
| Input nominal voltage | 120V |
| Input cord length | 6 ft |
| Input voltage range | 96-144 Vac |
| Input frequency range | 45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system) |
| Communications | |
| Communication | RS-232 (RJ45) port; USB port as standard (HID). 6-foot RS-232 and USB cables included |
| Software compatibility | Eaton Intelligent Power Manager |
| Environmental | |
| Noise level | <40 dB at 1 meter |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Relative humidity | 0-95% non-condensing |
| Additional Specifications | |
| Color | Black |
| Efficiency | 0.94 |
| Surge protection | Yes |
| Warranty And Support | |
| Standard factory warranty | 2-YEAR FACTORY WARRANTY, -2 years, -Parts, electronics, and batteries coverage, -Standard ground shipping, -Technical support |
Eaton 5SC UPS - 500/3000VA - Datasheet
Eaton Backup Power Distributed Service Quick Guide 2020 - EN
EU declaration of conformity Eaton 5SC UPS
Eaton 5SC UPS - 500i/750i/1000i/1500i - Installation and user manual (multiple languages)
