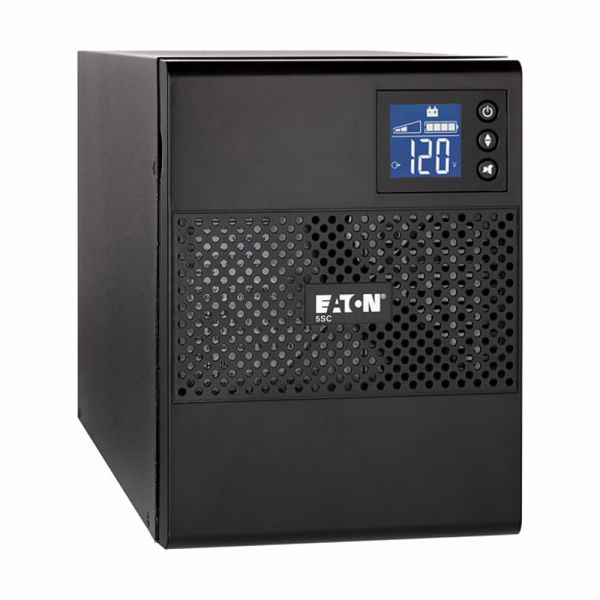

The Eaton 5SC UPS provides line-interactive, inexpensive, and reliable protection for small business servers in any installation situation.
Recommended replacement for 5SC1500I
The Eaton 5SC UPS provides line-interactive, inexpensive, and reliable protection for small business servers in any installation situation. In battery mode, the 5SC offers a high-quality output signal for sensitive equipment such as active PFC (power factor corrected) servers. The Buck and Boost functions correct a wide range of input voltage variations without batteries.
The LCD interface shows the UPS's input and output voltage, load and battery level, and anticipated runtime. Configuration options include output voltage, audible alarm, and sensitivity. The 5SC has USB and serial ports. The USB port is HID-compliant for Windows, Mac OS, and Linux.
For more versatility, this tower has a generous number of outlets and is small enough to fit in tiny spaces (kiosks, cash machines, ticket machines). In addition, Eaton's Intelligent Power Technologies Suite is compatible with virtualization software.
Recommended replacement for 5SC1500I
Features & Benefits:
| General Specifications | |
|---|---|
| Product Name | Eaton 5SC UPS |
| Catalog Number | 5SC1500IBS |
| Model Code | Eaton 5SC 1500i w/ BS Cord 10A |
| EAN | 3553340620386 |
| Product Length/Depth | 550 mm |
| Product Height | 300 mm |
| Product Width | 240 mm |
| Product Weight | 16.5 kg |
| Warranty | 2 year |
| Compliances | CE Marked TUV |
| Certifications | IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, EAC, cTUVus |
| Model Code | Eaton 5SC 1500i w/ BS Cord 10A |
| Product Specifications | |
| Secondary frequency - max | 60 Hz |
| Output waveform | Sine wave |
| Wattage | 1050 W |
| Output power factor | 0.7 |
| Form factor | Tower |
| Enclosure | Black |
| Includes network card | No |
| Input connection | C14 |
| Input voltage - min | 184 V |
| Output voltage - max | 240 V |
| Secondary frequency - min | 50 Hz |
| Software compatibility | Eaton Intelligent Power Protector |
| Battery replacement | User replaceable |
| Battery type | Lead-acid maintenance-free (replaceable) |
| Efficiency | 97 |
| Construction type | Free standing model |
| Output voltage - min | 220 V |
| Color | Black |
| Extended battery capability | No |
| Output voltage range | 230 V (+6%/-10%) |
| Topology | Line-interactive |
| BTU Rating | Online: 211 |
| Back-up time | 13 min |
| Input nominal voltage | 230V default (220/230/240V) |
| Input frequency range | 45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system) |
| Input voltage - max | 276 V |
| Voltage type | AC |
| Phase (output) | 1 |
| Battery management | ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection |
| Auto shutdown function | Yes |
| Number of Outputs C13 | 8 |
| VA rating | 1500 VA |
| Potential free switch contact | No |
| Receptacle | (8) C13 |
| Phase (input) | 1 |
| Package contents | USB cable, Serial cable, (2) IEC-IEC cables, Quickstart guide, Safety instructions, BS input cord |
| Noise level | <40 dB at 1 meter |
| Feed type | 1 |
| Runtime graph | View runtime graph |
| User interface | LCD Display |
| Battery quantity | 3 |
| Voltage | 230V |
| Temperature range | 0-90% non-condensing |
| Ethernet interface | No |
| Communication | USB port (HID compliant), Serial port (RS232) |
| Relative humidity | 0-90% non-condensing |
| Rack mounting kit | No |
| Output frequency | 50/60 Hz |
| Runtime at full load | 5 min |
| Type of interface | Other |
| Primary frequency - min | 45 Hz |
| Battery rating | 12 V / 9 Ah |
| Type | UPS |
| Output nominal voltage | 230V default (220/230/240V) |
| Expansion slots | No |
| Input voltage range | 184-276 V |
| Nominal frequency | 50-60 Hz |
| Primary frequency - max | 65 Hz |
| Altitude | 2000 m |
Eaton 5SC UPS - 500/3000VA - Datasheet
Eaton Backup Power Distributed Service Quick Guide 2020 - EN
EU declaration of conformity Eaton 5SC UPS
Eaton 5SC UPS - 500i/750i/1000i/1500i - Installation and user manual (multiple languages)
