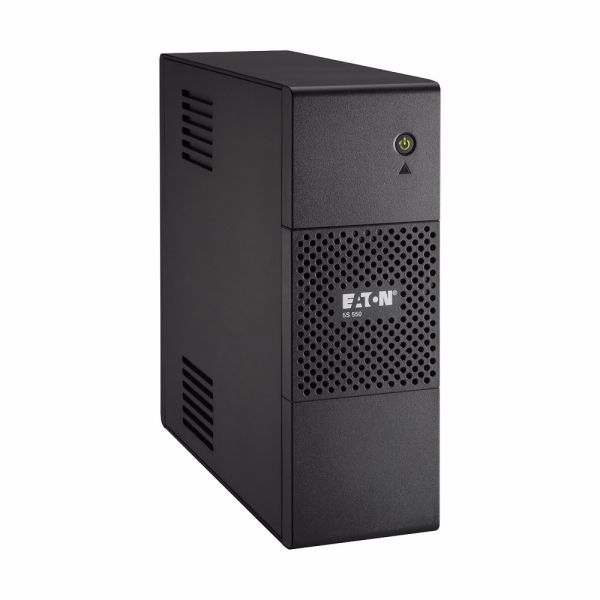

Eaton 5S700IBS 5S 700VA/420W 230V Line Interactive UPS

7 in stock for 1-2 Day Delivery

7 in stock for 1-2 Day Delivery

SKU:
5S700IBS
MPN:
5S700IBS
£167.36 £139.47

Eaton's 5S UPS delivers cost-effective line-interactive backup power and voltage regulation for small and medium-sized enterprises with workstations, desktop PCs, telephone equipment, and point-of-sale (POS) applications. This uninterruptible power supply (UPS) delivers optimal power protection in even the most challenging electrical conditions.

Recommended replacement for 5S700I

Free Express Delivery Over £99*  (1 - 2 Days)

Eaton's 5S UPS delivers cost-effective line-interactive backup power and voltage regulation for small and medium-sized enterprises with workstations, desktop PCs, telephone equipment, and point-of-sale (POS) applications. This uninterruptible power supply (UPS) delivers optimal power protection in even the most challenging electrical conditions. Voltage fluctuations are automatically rectified without the need for batteries via an Automatic Voltage Regulation (AVR) device (booster/fader). Also, it has a battery backup to keep things running when the power goes out. This protects against surges that can damage devices.

The 5S UPS's compact size enables it to be used as a freestanding tower or beneath a computer monitor. For added convenience, the 5S's plug-and-play capability enables you to begin backing up your equipment immediately after taking it out of the box. With a simple plug into a USB port, you can make your computer work with Windows, Macs, and Linux.

The 5S's extra-flat form allows it to be positioned vertically above or beneath a desk, or horizontally beneath a monitor. Its tiny, slimline form factor also enables easy integration into locations with limited space.

Recommended replacement for 5S700I

Features & Benefits:

  • Output power capacity: 420 Watts / 700VA
  • 6-minute battery runtime at 70% load
  • Automatic Voltage Regulation (AVR)
  • Saves space with a small design that can be used as a tower or under a computer screen
  • HID-compliant USB port, with a cable included, for easy integration with major operating systems (Windows, Mac OS, and Linux).
  • Data line protection makes sure that the internet line (including xDSL) is safe from surges.
  • Easy to replace battery helps to extend UPS service life
  • Periodic battery self-test ensures early detection of a battery that needs to be replaced
  • Two-year warranty
  • Output Connections - (3) C13, (3) C13 surge only
  • Input Connections - C14
  • Tower

General Specifications
Product NameEaton 5S UPS
Catalog Number5S700IBS
Model CodeEaton 5S 700i w/ BS Cord 10A
EAN3553340620188
Product Length/Depth87 mm
Product Height250 mm
Product Width260 mm
Product Weight7.1 kg
Warranty2 year
CompliancesCE Marked
CertificationsIEC/EN 62040-1
IEC/EN 62040-2CE , EAC , Model Code , Eaton 5S 700i w/ BS Cord 10A
Product Specifications
Secondary frequency - max60 Hz
Wattage420 W
Output power factor0.6
Form factorTower
Includes network cardNo
Input connectionC14
Input voltage - min175 V
Output voltage - max276 V
Secondary frequency - min50 Hz
Software compatibilityEaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
Battery replacementUser replaceable
Battery typeSealed, lead-acid
Efficiency97
Construction typeFree standing model
Output voltage - min184 V
ColorBlack
Extended battery capabilityNo
Output voltage range184-276 V
TopologyLine-interactive
Surge protectionYes
Back-up time8.5 min
Input nominal voltage230V default (220/230/240V)
Input frequency range46-70 Hz
Input voltage - max275 V
Voltage typeAC
Phase (output)1
Battery managementReplaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
Auto shutdown functionYes
Number of Outputs C136
Operating temperature - min0 °C
VA rating700 VA
Potential free switch contactNo
Receptacle(3) C13, (3) C13 surge only
Phase (input)1
Package contents(2) IEC-IEC cables, USB cable, User manual, Safety instructions, BS input cord
Noise level<25 dB at 1 meter
Feed type1
Runtime graphView runtime graph
User interfaceLEDs
Battery quantity1
Operating temperature - max35 °C
Voltage230V
Temperature range0° to 35°C (32° to 95°F)
Ethernet interfaceNo
CommunicationUSB port (HID compliant)
Relative humidity0-85% non-condensing
Output apparent power700 VA
Rack mounting kitNo
Output frequency50/60 Hz
Runtime at full load2 min
Type of interfaceUSB
Primary frequency - min46 Hz
Battery rating12 V / 7 Ah
TypeUPS
Output nominal voltage230V
Expansion slotsNo
Input voltage range175-275 V
Nominal frequency50/60 Hz
Primary frequency - max70 Hz
Altitude2000 m
