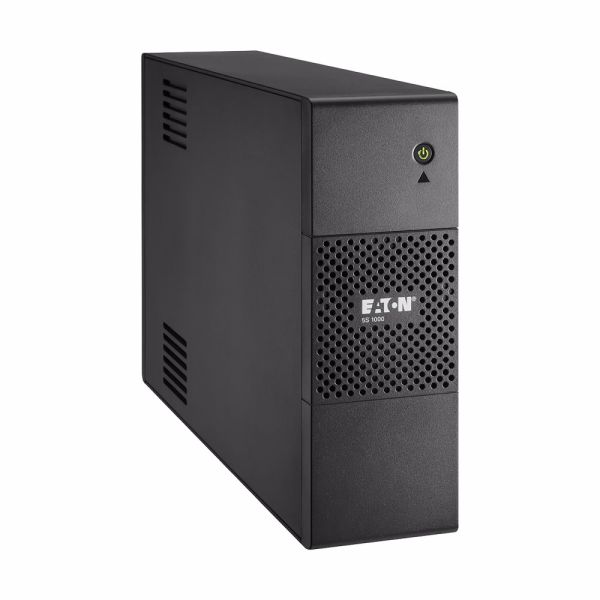

Eaton 5S 1500VA 230V Line Interactive UPS

Free Express Delivery Over £99*  (1 - 2 Days)
Availability: In stock
SKU:
5S1500IBS
MPN:
5S1500IBS
£337.21 £281.01

Eaton's 5S UPS delivers cost-effective line-interactive backup power and voltage regulation for small and medium-sized enterprises with workstations, desktop PCs, telephone equipment, and point-of-sale (POS) applications. This uninterruptible power supply (UPS) delivers optimal power protection in even the most challenging electrical conditions.

Recommended replacement for 5S1500I

Free Express Delivery Over £99*  (1 - 2 Days)
Seen this product cheaper elsewhere? Let us know
Enter the details of the other product you found

Eaton 5S1500i 900VA Line-Interactive UPS power supply system. The Eaton 5S UPS provides cost-effective line-interactive backup power and voltage regulation for small and medium businesses with workstations, desktop PCs, telephone equipment and POS applications. With its compact form factor, the 5S UPS can be utilized as a standalone tower or under a computer monitor. Performance
The Eaton 5S UPS provides effective power protection, even in disturbed electrical environments. Voltage fluctuations are automatically corrected using an AVR device (booster/fader), without needing the batteries.
The 5S not only provides a supply with battery backup to keep equipment operating during power cuts, but also provides effective protection against damaging surges.

Eaton's 5S UPS delivers cost-effective line-interactive backup power and voltage regulation for small and medium-sized enterprises with workstations, desktop PCs, telephone equipment, and point-of-sale (POS) applications. This uninterruptible power supply (UPS) delivers optimal power protection in even the most challenging electrical conditions. Voltage fluctuations are automatically rectified without the need for batteries via an Automatic Voltage Regulation (AVR) device (booster/fader). Also, it has a battery backup to keep things running when the power goes out. This protects against surges that can damage devices.

The 5S UPS's compact size enables it to be used as a freestanding tower or beneath a computer monitor. For added convenience, the 5S's plug-and-play capability enables you to begin backing up your equipment immediately after taking it out of the box. With a simple plug into a USB port, you can make your computer work with Windows, Macs, and Linux.

The 5S's extra-flat form allows it to be positioned vertically above or beneath a desk, or horizontally beneath a monitor. Its tiny, slimline form factor also enables easy integration into locations with limited space.

Recommended replacement for 5S1500I

Features & Benefits:

  • Output power capacity: 900 Watts / 1500VA
  • 6-minute battery runtime at 70% load
  • Automatic Voltage Regulation (AVR)
  • Saves space with a small design that can be used as a tower or under a computer screen
  • HID-compliant USB port, with a cable included, for easy integration with major operating systems (Windows, Mac OS, and Linux).
  • Data line protection makes sure that the internet line (including xDSL) is safe from surges.
  • Easy to replace battery helps to extend UPS service life
  • Periodic battery self-test ensures early detection of a battery that needs to be replaced
  • Two-year warranty
  • Output Connections - (4) C13, (4) C13 surge only
  • Input Connections - C14
  • Tower

General Specifications
Product NameEaton 5S UPS
Catalog Number5S1500IBS
Model CodeEaton 5S 1500i w/ BS Cord 10A
EAN3553340620201
Product Length/Depth87 mm
Product Height250 mm
Product Width382 mm
Product Weight12.5 kg
Warranty2 year
CompliancesCE Marked
CertificationsIEC/EN 62040-1
IEC/EN 62040-2CE , EAC , Model Code , Eaton 5S 1500i w/ BS Cord 10A
Product Specifications
Secondary frequency - max60 Hz
Wattage900 W
Output power factor0.6
Form factorTower
Includes network cardNo
Input connectionC14
Input voltage - min175 V
Output voltage - max276 V
Secondary frequency - min50 Hz
Software compatibilityEaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
Battery replacementUser replaceable
Battery typeSealed, lead-acid
Efficiency97
Construction typeFree standing model
Output voltage - min184 V
ColorBlack
Extended battery capabilityNo
Output voltage range184-276 V
TopologyLine-interactive
Surge protectionYes
Back-up time11 min
Input nominal voltage230V default (220/230/240V)
Input frequency range46-70 Hz
Input voltage - max275 V
Voltage typeAC
Phase (output)1
Battery managementReplaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
Auto shutdown functionYes
Number of Outputs C138
Operating temperature - min0 °C
VA rating1500 VA
Potential free switch contactNo
Receptacle(4) C13, (4) C13 surge only
Phase (input)1
Package contents(2) IEC-IEC cables, USB cable, User manual, Safety instructions, BS input cord
Noise level<25 dB at 1 meter
Feed type1
Runtime graphView runtime graph
User interfaceLEDs
Battery quantity2
Operating temperature - max35 °C
Voltage230V
Temperature range0° to 35°C (32° to 95°F)
Ethernet interfaceNo
CommunicationUSB port (HID compliant)
Relative humidity0-85% non-condensing
Output apparent power1500 VA
Rack mounting kitNo
Output frequency50/60 Hz
Runtime at full load2 min
Type of interfaceUSB
Primary frequency - min46 Hz
Battery rating12 V / 9 Ah
TypeUPS
Output nominal voltage230V
Expansion slotsNo
Input voltage range175-275 V
Nominal frequency50/60 Hz
Primary frequency - max70 Hz
Altitude2000 m
