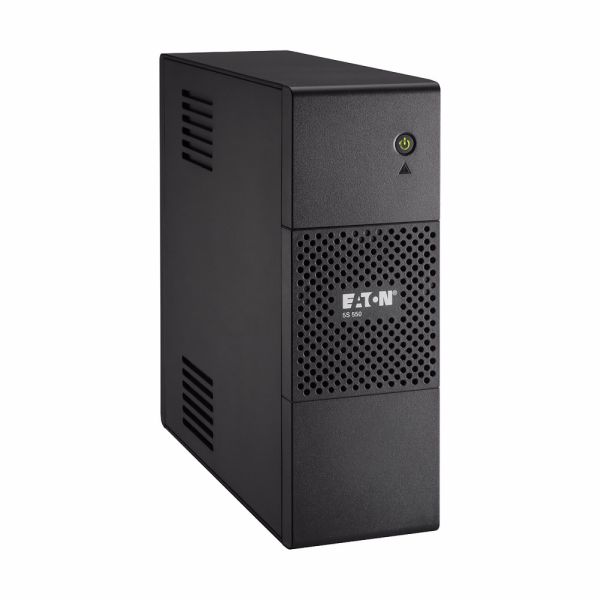

Eaton's 5S UPS delivers cost-effective line-interactive backup power and voltage regulation for small and medium-sized enterprises with workstations, desktop PCs, telephone equipment, and point-of-sale (POS) applications. This uninterruptible power supply (UPS) delivers optimal power protection in even the most challenging electrical conditions.
Recommended replacement for 5S1000I
Eaton's 5S UPS delivers cost-effective line-interactive backup power and voltage regulation for small and medium-sized enterprises with workstations, desktop PCs, telephone equipment, and point-of-sale (POS) applications. This uninterruptible power supply (UPS) delivers optimal power protection in even the most challenging electrical conditions. Voltage fluctuations are automatically rectified without the need for batteries via an Automatic Voltage Regulation (AVR) device (booster/fader). Also, it has a battery backup to keep things running when the power goes out. This protects against surges that can damage devices.
The 5S UPS's compact size enables it to be used as a freestanding tower or beneath a computer monitor. For added convenience, the 5S's plug-and-play capability enables you to begin backing up your equipment immediately after taking it out of the box. With a simple plug into a USB port, you can make your computer work with Windows, Macs, and Linux.
The 5S's extra-flat form allows it to be positioned vertically above or beneath a desk, or horizontally beneath a monitor. Its tiny, slimline form factor also enables easy integration into locations with limited space.
Recommended replacement for 5S1000I
Features & Benefits:
| General Specifications | |
|---|---|
| Product Name | Eaton 5S UPS |
| Catalog Number | 5S1000IBS |
| Model Code | Eaton 5S 1000i w/ BS Cord 10A |
| EAN | 3553340620195 |
| Product Length/Depth | 87 mm |
| Product Height | 250 mm |
| Product Width | 382 mm |
| Product Weight | 12.5 kg |
| Compliances | CE Marked |
| Certifications | IEC/EN 62040-1 |
| IEC/EN 62040-2 | CE, EAC, Model Code, Eaton 5S 1000i w/ BS Cord 10A |
| Product Specifications | |
| Secondary frequency - max | 60 Hz |
| Wattage | 600 W |
| Output power factor | 0.6 |
| Form factor | Tower |
| Includes network card | No |
| Input connection | C14 |
| Input voltage - min | 175 V |
| Output voltage - max | 276 V |
| Secondary frequency - min | 50 Hz |
| Software compatibility | Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings) |
| Battery replacement | User replaceable |
| Battery type | Sealed, lead-acid |
| Efficiency | 97 |
| Construction type | Free standing model |
| Output voltage - min | 184 V |
| Color | Black |
| Extended battery capability | No |
| Output voltage range | 184-276 V |
| Topology | Line-interactive |
| Surge protection | Yes |
| Back-up time | 14 min |
| Input nominal voltage | 230V default (220/230/240V) |
| Input frequency range | 46-70 Hz |
| Input voltage - max | 275 V |
| Voltage type | AC |
| Phase (output) | 1 |
| Battery management | Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable |
| Auto shutdown function | Yes |
| Number of Outputs C13 | 8 |
| Operating temperature - min | 0 °C |
| VA rating | 1000 VA |
| Potential free switch contact | No |
| Receptacle | (4) C13, (4) C13 surge only |
| Phase (input) | 1 |
| Package contents | (2) IEC-IEC cables, USB cable, User manual, Safety instructions, BS input cord |
| Noise level | <25 dB at 1 meter |
| Feed type | 1 |
| Runtime graph | View runtime graph |
| User interface | LEDs |
| Battery quantity | 2 |
| Operating temperature - max | 35 °C |
| Voltage | 230V |
| Temperature range | 0° to 35°C (32° to 95°F) |
| Ethernet interface | No |
| Communication | USB port (HID compliant) |
| Relative humidity | 0-85% non-condensing |
| Output apparent power | 1000 VA |
| Rack mounting kit | No |
| Output frequency | 50/60 Hz |
| Runtime at full load | 2 min |
| Type of interface | USB |
| Primary frequency - min | 46 Hz |
| Battery rating | 12 V / 7 Ah |
| Type | UPS |
| Output nominal voltage | 230V |
| Expansion slots | No |
| Input voltage range | 175-275 V |
| Nominal frequency | 50/60 Hz |
| Primary frequency - max | 70 Hz |
| Altitude | 2000 m |
