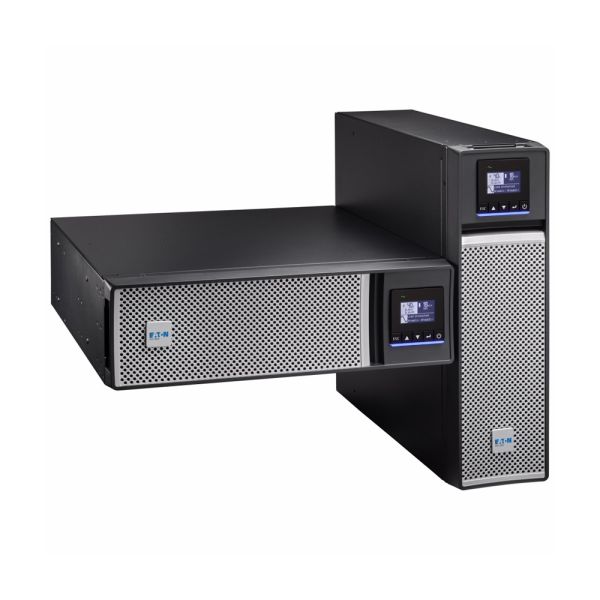

Eaton's 5PX Gen2 UPS delivers the highest quality line-interactive power protection for enterprise networks and Edge IT devices, maximising IT space and ensuring service continuity.
Recommended replacement for 5PX2200IRT3UG2
Eaton's 5PX Gen2 UPS delivers the highest quality line-interactive power protection for enterprise networks and Edge IT devices, maximising IT space and ensuring service continuity. The 5PX Gen 2 UPS has a unity power factor (W=VA) and 11% more power than previous UPSs, allowing it to protect more servers. Energy Star 2.0 certification delivers best-in-class efficiency performance, allowing for significant energy and cooling cost savings.
A unique graphical LCD display places all operational information at a glance. Additionally, it boosts the capability for commissioning and configuration. Using Eaton's Gigabit network management card, 5PX Gen2 can be set up and updated remotely, making it easier to deploy (fleet management) and cutting down on maintenance costs.
5PX Gen2 accurately measures energy consumption down to the level of managed outlet groups. The LCD or Eaton's Intelligent Power Software can be used to monitor kWh numbers. Eaton's Intelligent Power Software interfaces smoothly with popular virtualization and cloud orchestration environments. Load segment control lets you prioritise shutting down non-essential equipment in order to keep the battery life of important devices (two groups).
Recommended replacement for 5PX2200IRT3UG2
Features & Benefits:
| General Specifications | |
|---|---|
| Product Name | Eaton 5PX Gen2 UPS |
| Catalog Number | 5PX2200IRT3UG2BS |
| Model Code | Eaton 5PX 2200i RT3U G2 w/ BS Cord 16A |
| EAN | 3553340620874 |
| Product Length/Depth | 770 mm |
| Product Height | 290 mm |
| Product Width | 588 mm |
| Product Weight | 28.738 kg |
| Compliances | IEC/EN 62040-1IEC/EN 62040-2,IEC/EN 62040-3,RoHS Compliant,REACH,UL 1778,CSA 22.2 |
| Certifications | CE,cTUVus,EAC,Cm,UKCA,Ukr,ENERGY STAR certified |
| Model Code | Eaton 5PX 2200i RT3U G2 w/ BS Cord 16A |
| Product Specifications | |
| Secondary frequency - max | 60 Hz |
| Output waveform | Sine wave |
| Max number of battery packs | 4 |
| Wattage | 2200 W |
| Output power factor | 1 |
| Form factor | Rack/tower |
| Includes network card | No |
| Input connection | C20 |
| Input voltage - min | 150 V |
| Output voltage - max | 240 V |
| Secondary frequency - min | 50 Hz |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Battery replacement | User replaceable |
| Battery type | Lead-acid maintenance-free (replaceable) |
| Efficiency | 98 |
| Construction type | 482.6 mm (19 inch) device |
| Output voltage - min | 200 V |
| Color | Black/silver |
| Extended battery capability | Yes |
| Output voltage range | 230 V (+6%/-10%) |
| Topology | Line-interactive |
| Back-up time | 10 min |
| Input nominal voltage | 230V default (200/208/220/230/240V) |
| Input frequency range | 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode |
| Input voltage - max | 294 V |
| Voltage type | AC |
| Phase (output) | 1 |
| Battery management | ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units |
| Auto shutdown function | Yes |
| Number of Outputs C13 | 8 |
| Number of Outputs C19 | 2 |
| VA rating | 2200 VA |
| Potential free switch contact | Yes |
| Receptacle | (8) C13, (2) C19 |
| Phase (input) | 1 |
| Package contents | Input cable, Rack-mounting kit, (2) Supports for tower mounting, Cable locking system, USB cable, Serial cable, (2) IEC-IEC cables, Quickstart guide, Safety instructions, BS input cord |
| Noise level | <40 dB at 1 meter |
| Feed type | 1 |
| Runtime graph | View runtime graph |
| User interface | Multilingual graphical LCD display |
| Battery quantity | 6 |
| Rack size | 3U |
| Voltage | 230V |
| Input cord length | 1.8m |
| Temperature range | 0° to 40°C (32° to 104°F), batteries recommended max. 25°C (77°F) |
| Communication | USB port (HID compliant), Serial port (RS232), Mini-terminal block for remote On/Off and Remote Power Off, Mini-terminal block for output relay, Dry contacts (3 outputs, 1 input, optocoupler, DB9) |
| Relative humidity | 0-90% non-condensing |
| Rack mounting kit | Yes |
| Output frequency | 50/60 Hz |
| Type of interface | Other |
| Primary frequency - min | 47 Hz |
| Battery rating | 12 V / 7 Ah |
| Type | UPS |
| Output nominal voltage | 230V default (200/208/220/230/240V) |
| Expansion slots | One slot for optional communication card |
| Input voltage range | 160-294 V (adjustable to 150 V-294 V) |
| Nominal frequency | 50-60 Hz |
| Primary frequency - max | 70 Hz |
| Altitude | 3000 m |
EU Declaration of conformity Eaton 5PX G2 UPS
Advance User Guide Eaton 5PX Gen2 UPS - EN
