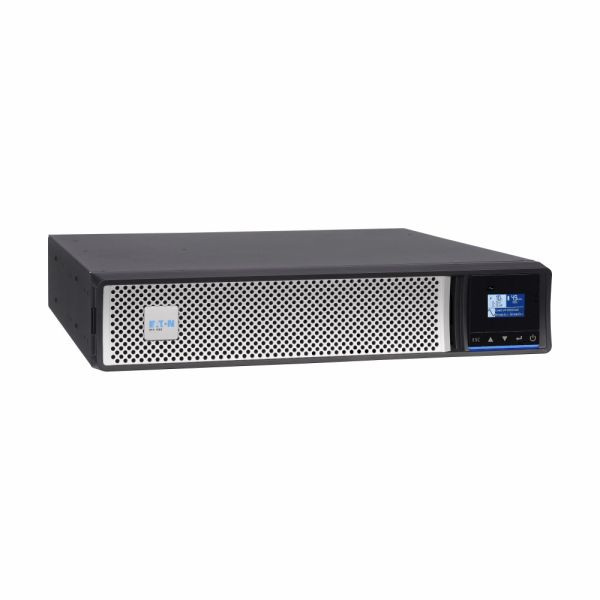

Eaton's 5PX Gen2 UPS delivers the highest quality line-interactive power protection for enterprise networks and Edge IT devices, maximising IT space and ensuring service continuity. The 5PX Gen 2 UPS has a unity power factor (W=VA) and 11% more power than previous UPSs, allowing it to protect more servers. Energy Star 2.0 certification delivers best-in-class efficiency performance, allowing for significant energy and cooling cost savings.
A unique graphical LCD display places all operational information at a glance. Additionally, it boosts the capability for commissioning and configuration. Using Eaton's Gigabit network management card, 5PX Gen2 can be set up and updated remotely, making it easier to deploy (fleet management) and cutting down on maintenance costs.
5PX Gen2 accurately measures energy consumption down to the level of managed outlet groups. The LCD or Eaton's Intelligent Power Software can be used to monitor kWh numbers. Eaton's Intelligent Power Software interfaces smoothly with popular virtualization and cloud orchestration environments. Load segment control lets you prioritise shutting down non-essential equipment in order to keep the battery life of important devices (two groups).
Features & Benefits:
| General Specifications | |
|---|---|
| Product Name | Eaton 5PX G2 UPS |
| Catalog Number | 5PX1500RTG2 |
| UPC | 743172105776 |
| Product Length/Depth | 17.6 in |
| Product Height | 3.4 in |
| Product Width | 17.2 in |
| Product Weight | 50.7 lb |
| Warranty | 3 year on electronics, 3 year on batteries with registration |
| Compliances | CE Marked, REACH |
| Certifications | CULus, RoHS, NOM, ENERGY STAR certified, IEC 62040-1 |
| Battery | |
| Runtime graph | View runtime graph |
| Battery replacement | User replaceable |
| Battery management | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
| Extended battery capability | Add up to 4 extended battery modules (EBM). Part number 5PXEBM48RTG2 |
| Electrical Output | |
| Battery type | Sealed, lead-acid |
| Receptacle | (8) 5-15R |
| Wattage | 1440 W |
| Topology | Line-interactive |
| VA rating | 1440 VA |
| Electrical Input | |
| Input connection | 5-15P |
| Input nominal voltage | 120V |
| Nominal frequency | 50/60 Hz |
| Input power factor | 1 |
| Input cord length | 10 ft |
| Communications | |
| User interface | LCD graphical display |
| Expansion slots | One slot |
| Software compatibility | Brightlayer Data Centers suite |
| Additional Specifications | |
| Package contents | 5PX1500RTG2 UPS, Tower pedestal feet, Four-post rail kit, Quick start guide, Safety guide, USB cable, RS-232 cable |
| Color | Black |
| Efficiency | 0.98 |
| Warranty And Support | |
| Standard factory warranty | 3-YEAR FACTORY WARRANTY w/ REGISTRATION-3 years, -Parts, electronics, and batteries coverage, -Standard ground shipping, -Technical support |
Estimated delivery cost for Eaton 5PX1500RTG2 5PX Gen2 1440VA/1440W 120V Line Interactive UPS, RT 2U is £0.
