2 in stock for 1-2 Day Delivery

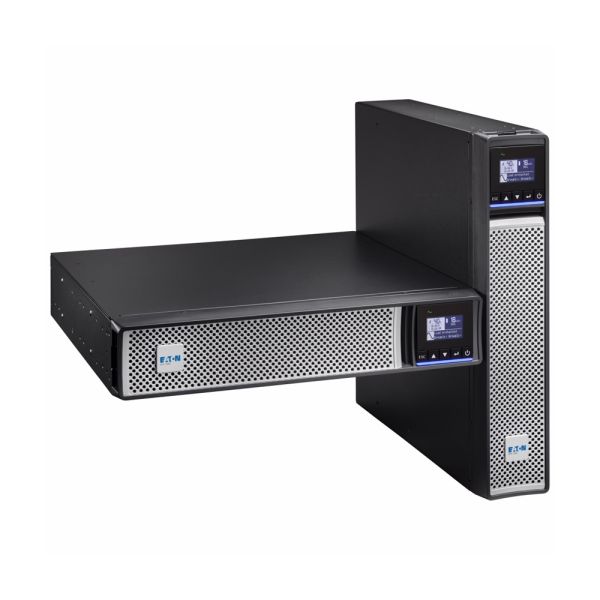

Eaton's 5PX Gen2 UPS delivers the highest quality line-interactive power protection for enterprise networks and Edge IT devices, maximising IT space and ensuring service continuity.
Recommended replacement for 5PX1000IRTNG2
Eaton's 5PX Gen2 UPS delivers the highest quality line-interactive power protection for enterprise networks and Edge IT devices, maximising IT space and ensuring service continuity. The 5PX Gen 2 UPS has a unity power factor (W=VA) and 11% more power than previous UPSs, allowing it to protect more servers. Energy Star 2.0 certification delivers best-in-class efficiency performance, allowing for significant energy and cooling cost savings.
A unique graphical LCD display places all operational information at a glance. Additionally, it boosts the capability for commissioning and configuration. Using Eaton's Gigabit network management card, 5PX Gen2 can be set up and updated remotely, making it easier to deploy (fleet management) and cutting down on maintenance costs.
5PX Gen2 accurately measures energy consumption down to the level of managed outlet groups. The LCD or Eaton's Intelligent Power Software can be used to monitor kWh numbers. Eaton's Intelligent Power Software interfaces smoothly with popular virtualization and cloud orchestration environments. Load segment control lets you prioritise shutting down non-essential equipment in order to keep the battery life of important devices (two groups).
Recommended replacement for 5PX1000IRTNG2
Features & Benefits:
| General Specifications | |
|---|---|
| Product Name | Eaton 5PX Gen2 UPS |
| Catalog Number | 5PX1000IRTNG2BS |
| Model Code | 5PX 1000i RT2U Netpack G2 w/ BS Cord 10A |
| EAN | 3553340620904 |
| Product Length/Depth | 585 mm |
| Product Height | 240 mm |
| Product Width | 498 mm |
| Product Weight | 19.88 kg |
| Warranty | 3 year on electronics, 2 year on battery |
| Compliances | IEC/EN 62040-1IEC/EN 62040-2,IEC/EN 62040-3,RoHS Compliant,REACH,UL 1778,CSA 22.2 |
| Certifications | CE,cTUVus,EAC,Cm,UKCA,Ukr,ENERGY STAR certified |
| Model Code | 5PX 1000i RT2U Netpack G2 w/ BS Cord 10A |
| Product Specifications | |
| Secondary frequency - max | 60 Hz |
| Output waveform | Sine wave |
| Max number of battery packs | 4 |
| Wattage | 1000 W |
| Output power factor | 1 |
| Form factor | Rack/tower |
| Includes network card | Yes |
| Input connection | C14 |
| Input voltage - min | 150 V |
| Output voltage - max | 240 V |
| Secondary frequency - min | 50 Hz |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Battery replacement | User replaceable |
| Battery type | Lead-acid maintenance-free (replaceable) |
| Efficiency | 98 |
| Construction type | 482.6 mm (19 inch) device |
| Output voltage - min | 200 V |
| Color | Black/silver |
| Extended battery capability | Yes |
| Output voltage range | 230 V (+6%/-10%) |
| Topology | Line-interactive |
| Back-up time | 17 min |
| Input nominal voltage | 230V default (200/208/220/230/240V) |
| Input frequency range | 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode |
| Input voltage - max | 294 V |
| Voltage type | AC |
| Phase (output) | 1 |
| Battery management | ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units |
| Integrated functionality | Network Mangement |
| Auto shutdown function | Yes |
| Number of Outputs C13 | 8 |
| VA rating | 1000 VA |
| Potential free switch contact | Yes |
| Receptacle | (8) C13 |
| Phase (input) | 1 |
| Package contents | Network Management Card, Rack-mounting kit, (2) Supports for tower mounting, Cable locking system, USB cable, Serial cable, (2) IEC-IEC cables, Quickstart guide, Safety instructions, BS input cord |
| Noise level | <40 dB at 1 meter |
| Feed type | 1 |
| Runtime graph | View runtime graph |
| User interface | Multilingual graphical LCD display |
| Battery quantity | 4 |
| Rack size | 2U |
| Voltage | 230V |
| Temperature range | 0° to 40°C (32° to 104°F), batteries recommended max. 25°C (77°F) |
| Protocol | SNMP |
| Communication | USB port (HID compliant), Serial port (RS232), Mini-terminal block for remote On/Off and Remote Power Off, Mini-terminal block for output relay, Dry contacts (3 outputs, 1 input, optocoupler, DB9) |
| Relative humidity | 0-90% non-condensing |
| Rack mounting kit | Yes |
| Output frequency | 50/60 Hz |
| Type of interface | Other |
| Primary frequency - min | 47 Hz |
| Battery rating | 12 V / 7 Ah |
| Type | UPS |
| Output nominal voltage | 230V default (200/208/220/230/240V) |
| Expansion slots | One slot, network card included |
| Input voltage range | 160-294 V (adjustable to 150 V-294 V) |
| Nominal frequency | 50-60 Hz |
| Primary frequency - max | 70 Hz |
| Altitude | 3000 m |
EU Declaration of conformity Eaton 5PX G2 UPS
Advance User Guide Eaton 5PX Gen2 UPS - EN
