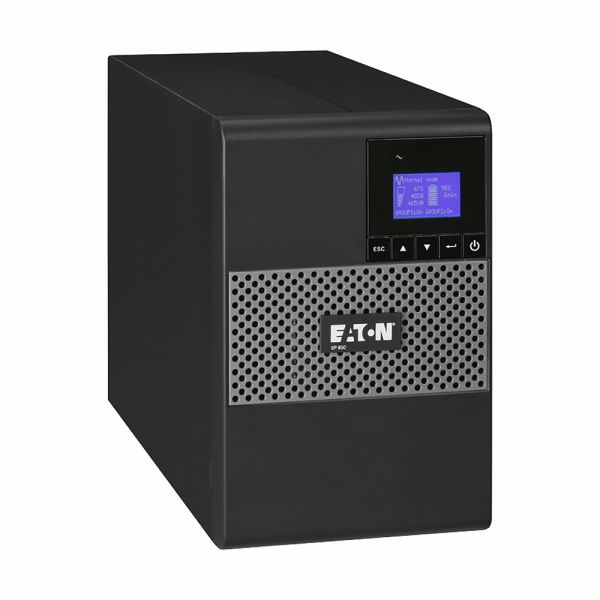

Eaton's innovative 5P line-interactive UPS features an enhanced LCD and energy metering. The 5P is the ideal UPS for protecting IT and networking components in a tower or rack configuration, such as servers, switches, routers, and storage devices.
Recommended replacement for 5P650I
Eaton's innovative 5P line-interactive UPS features an enhanced LCD and energy metering. The 5P is the ideal UPS for protecting IT and networking components in a tower or rack configuration, such as servers, switches, routers, and storage devices. On a single screen, the new graphical LCD display delivers concise information on the UPS's status and measurements (in seven languages). Additionally, enhanced configuration capabilities are offered via intuitive navigation keys.
The 5P can monitor energy consumption via the LCD and Eaton's power management software, displaying kWh data. During outages, load segment control permits prioritised shutdowns of non-essential equipment to maximise battery runtime for vital devices. In addition, load segment control can be used to remotely reboot network equipment that has been turned off, as well as to set up scheduled shutdowns and start-ups.
The 5P includes serial and USB connectivity, as well as an additional slot for an optional communication card (SNMP/Web or relay contact). Each UPS includes Eaton's Intelligent Power Technologies Suite, which is compatible with all major operating systems and virtualisation software like VMware and Hyper-V.
Recommended replacement for 5P650I
Features & Benefits:
| General Specifications | ||
|---|---|---|
| Product Name | Eaton 5P UPS | |
| Catalog Number | 5P650IBS | |
| Model Code | Eaton 5P 650i w/ BS Cord 10A | |
| EAN | 3553340620096 | |
| Product Length/Depth | 230 mm | |
| Product Height | 330 mm | |
| Product Width | 430 mm | |
| Product Weight | 11 kg | |
| Warranty | 3 year on electronics, 2 year on battery | |
| Compliances | CE Marked, TUV | |
| Certifications | IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, EAC, cTUVus | |
| Model Code | Eaton 5P 650i w/ BS Cord 10A | |
| Product Specifications | ||
| Secondary frequency - max | 60 Hz | |
| Output waveform | Sine wave | |
| Wattage | 420 W | |
| Output power factor | 0.65 | |
| Form factor | Tower | |
| Enclosure | Black/silver | |
| Includes network card | No | |
| Input connection | C14 | |
| Input voltage - min | 150 V | |
| Output voltage - max | 240 V | |
| Secondary frequency - min | 50 Hz | |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector | |
| Battery replacement | User replaceable | |
| Battery type | Lead-acid maintenance-free (replaceable) | |
| Efficiency | 96 | |
| Construction type | Free standing model | |
| Output voltage - min | 200 V | |
| Color | Black/silver | |
| Extended battery capability | No | |
| Output voltage range | 230 V (+6%/-10%) | |
| Topology | Line-interactive | |
| BTU Rating | Online: 85 | |
| Back-up time | 9 min | |
| Input nominal voltage | 230V default (200/208/220/230/240V) | |
| Input frequency range | 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode | |
| Input voltage - max | 294 V | |
| Voltage type | AC | |
| Phase (output) | 1 | |
| Battery management | ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection | |
| Auto shutdown function | Yes | |
| Number of Outputs C13 | 4 | |
| VA rating | 650 VA | |
| Potential free switch contact | Yes | |
| Receptacle | (4) C13 | |
| Phase (input) | 1 | |
| Package contents | USB cable, Serial cable, (2) IEC-IEC cables, Quickstart guide, Safety instructions, BS input cord | |
| Noise level | <40 dB at 1 meter | |
| Feed type | 1 | |
| Runtime graph | View runtime graph | |
| User interface | Multilingual graphical LCD display | |
| Battery quantity | 1 | |
| Voltage | 230V | |
| Temperature range | 0-90% non-condensing | |
| Ethernet interface | No | |
| Communication | USB port (HID compliant), Serial port (RS232), Mini-terminal block for remote On/Off and Remote Power Off, Dry contacts (2 outputs, optocoupler, RJ) | |
| Relative humidity | 0-90% non-condensing | |
| Rack mounting kit | No | |
| Output frequency | 50/60 Hz | |
| Runtime at full load | 2 min | |
| Type of interface | Other | |
| Primary frequency - min | 47 Hz | |
| Battery rating | 12 V / 9 Ah | |
| Type | UPS | |
| Output nominal voltage | 230V default (200/208/220/230/240V) | |
| Expansion slots | One slot for optional communication card | |
| Input voltage range | 160-294 V (adjustable to 150 V-294 V) | |
| Nominal frequency | 50-60 Hz | |
| Primary frequency - max | 70 Hz | |
| Altitude | 2000 m | |
