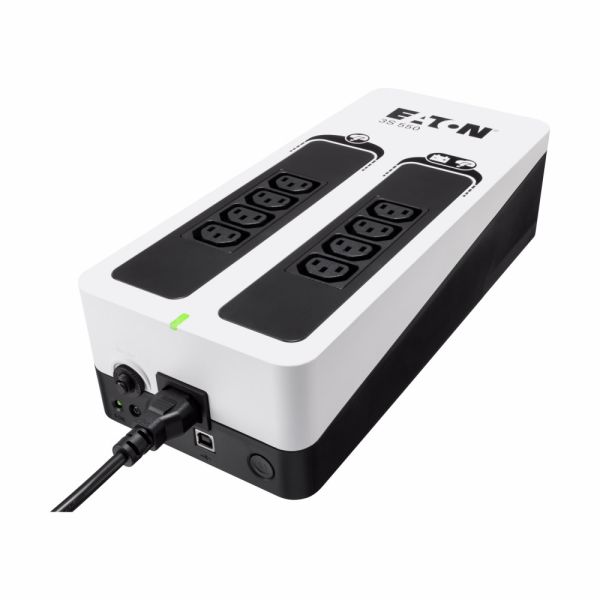

Eaton's 3S Gen2 series of uninterruptible power supplies (UPS) is an affordable and reliable solution for home and small business use. This offline UPS protects internet gateways, desktop computers, and other mission-critical devices from surges and power outages.
Eaton's 3S Gen2 series of uninterruptible power supplies (UPS) is an affordable and reliable solution for home and small business use. This offline UPS protects internet gateways, desktop computers, and other mission-critical devices from surges and power outages.
The 3S delivers battery backup power in the case of a power failure and enhanced surge protection to guard against damage caused by lightning strikes or an unexpected grid surge. Surge protection circuits conform to the international standard IEC 61643-11. Also, the Eaton 3S Gen2 surge protector has an RJ11/xDSL connection to protect Internet gateways from data line disturbances.
The 3S Gen2's sleek design enables you to pair it with your high-tech devices for a stylish look. Additionally, this space-saving UPS can be wall-mounted or desk-mounted.
Features & Benefits:
* Backup time is approximate and may vary with equipment, configuration, battery age, temperature, etc.
| General Specifications | |
|---|---|
| Product Name | Eaton 3S Gen2 UPS |
| Catalog Number | 3S550I |
| UPC | 743172101815 |
| Product Length/Depth | 83.5 mm |
| Product Height | 140 mm |
| Product Width | 325 mm |
| Product Weight | 2.9 kg |
| Compliances | CE Marked |
| Certifications | IEC/EN 62040-2 , CE , EAC , IEC/EN 62040-1 |
| Product Specifications | |
| Secondary frequency - max | 60 Hz |
| Wattage | 330W |
| Output power factor | 0.6 |
| Form factor | Tower |
| Includes network card | No |
| Input connection | C14 |
| Input voltage - min | 161 V |
| Output voltage - max | 284 V |
| Secondary frequency - min | 50 Hz |
| Software compatibility | Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings) |
| Battery replacement | User replaceable |
| Battery type | Sealed, lead-acid |
| Efficiency | 98 |
| Construction type | Free standing model |
| Output voltage - min | 161 V |
| Color | Black/White |
| Extended battery capability | No |
| Output voltage range | 184-264 V (adjustable to 161-284 V) |
| Topology | Offline |
| Surge protection | Yes |
| Back-up time | 6.5 min |
| Input nominal voltage | 230V default (220/230/240V) |
| Input frequency range | 46-70 Hz |
| Input voltage - max | 284 V |
| Voltage type | AC |
| Phase (output) | 1 |
| Battery management | Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable |
| Auto shutdown function | Yes |
| Number of Outputs C13 | 8 |
| Operating temperature - min | 0 °C |
| VA rating | 550 VA |
| Potential free switch contact | No |
| Receptacle | (4) C13, (4) C13 surge only |
| Phase (input) | 1 |
| Package contents | (2) IEC-IEC cables , USB cable , Quickstart guide , Safety instructions |
| Noise level | <25 dB at 1 meter |
| Feed type | 1 |
| Runtime graph | View runtime graph |
| User interface | LEDs |
| Battery quantity | 1 |
| Operating temperature - max | 40 °C |
| Voltage | 230V |
| Ethernet interface | No |
| Communication | USB port (HID compliant) |
| Relative humidity | 0-85% non-condensing |
| Output apparent power | 550 VA |
| Rack mounting kit | No |
| Output frequency | 50/60 Hz |
| Runtime at full load | 1.5 min |
| Type of interface | USB |
| Primary frequency - min | 46 Hz |
| Battery rating | 12 V / 5 Ah |
| Type | UPS |
| Output nominal voltage | 230V default (220/230/240V) |
| Expansion slots | No |
| Input voltage range | 184-264 V (adjustable to 161-284 V) |
| Nominal frequency | 50/60 Hz |
| Primary frequency - max | 70 Hz |
| Altitude | 2000 m |
