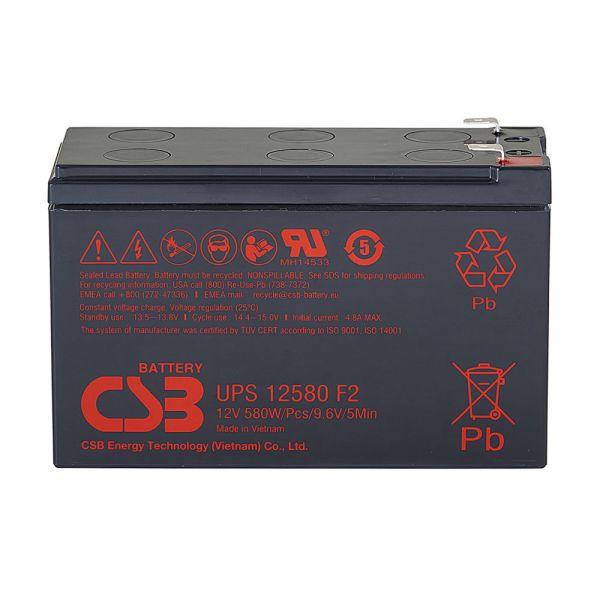

CSB UPS12580-7F2 (12V 10Ah) UPS VRLA AGM Battery

1-3 Day Delivery

1-3 Day Delivery

SKU:
UPS12580-7F2
MPN:
UPS 12580 F2
£36.59 £30.49
  • Capacity Ah: 10
  • Nominal Voltage: 12
  • Dimensions (LxWxH): 150.9x64.8x98.6mm
  • Typical Weight: 2.83kg
  • Long life, low self-discharge rate & high reliability
  • Safe, low resistance for easy recharge & greater energy output
  • Standby use
  • High rate discharge construction
  • Deep discharge recoverability
  • Batteries are strictly tested by a patented computer charge/discharge system
  • ISO9001, 14001, OHSMS 18001 certified
  • UL recognized components under UL 1989 (file number MH14533)
  • Complies with IATA/ICAO Special Provision A67 for air transport
  • Classified per MG Amendment 27 as a non-hazardous material for water transport
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport
Standard Delivery  (1 - 7 Days)

The UPS Series was created specifically for high-efficiency discharge applications. It employs cutting-edge wafer-thin plate technology to deliver optimal high-rate performance and a design life of up to 5 years in standby service. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.

Features & Benefits:

  • Battery Type: VRLA Sealed Lead Acid Battery
  • Voltage: 12V
  • Capacity: 580W
  • Weight: 2.83Kg
  • Length: 151mm
  • Width: 65mm
  • Height: 94mm
  • Terminal: F2 Terminal (0.25")
  • Low self-discharge rate and long life
  • Safe, low resistance with high energy output
  • Flame retardant ABS container with UL 94V-0 rating
  • Standby use
  • High rate discharge construction
  • Deep discharge recoverability
  • Strictly tested by patented computer charge/discharge system
  • ISO9001, 14001, OHSMS 18001 certified
  • UL recognized components under UL 1989 (file number MH14533)
  • Complies with IATA/ICAO Special Provision A67 for air transport
  • Classified per MG Amendment 27 as a non-hazardous material for water transport
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport

Applications

Standby Use:

  • UPS power supplies
  • Workstation UPS
  • Emergency lighting equipment
  • Precision instrument backup power
  • Fire alarms and security systems
  • Communications and electric equipment
  • Office computers, processors and other office automation equipment
  • Robots, control equipment and other factory automation equipment
  • Emergency power supplies in power generation plants and substations
  • Telecommunications
  • Various telemeter equipment

Specification

Cells Per Unit6
Voltage Per Unit12 V
Capacity96.7W @ 5min-rate to 1.6V per cell @25°C (77°F)
WeightApprox. 2.83 kg (6.24 lbs)
Maximum Discharge current130 A (5sec)
Internal ResistanceApprox. 11.8 mΩ
Operating Temperature RangeDischarge: -15~50 (5°F~122°F)
Charge: -15~40 (5°F~104°F)
Storage: -15~40 (5°F~104°F)
Nominal Operating Temperature Range25°C ±3°C (77°F ± 5°F)
Float charging voltage13.5 to 13.8 VDC/unit Average at 25°C (77°F)
Recommended Maximum Charging current limit4.80 A
Equalization Charging Voltage14.4 to 15.0 VDC/unit Average at 25°C (77°F)
Self DischargeLess than 10% after 90 days, can be stored up to 6 months at 25 (77℉)
TerminalF2-Faston Tab 250
Container MaterialABS (UL 94-HB) & Flame Retardant (94-V0) available upon request
