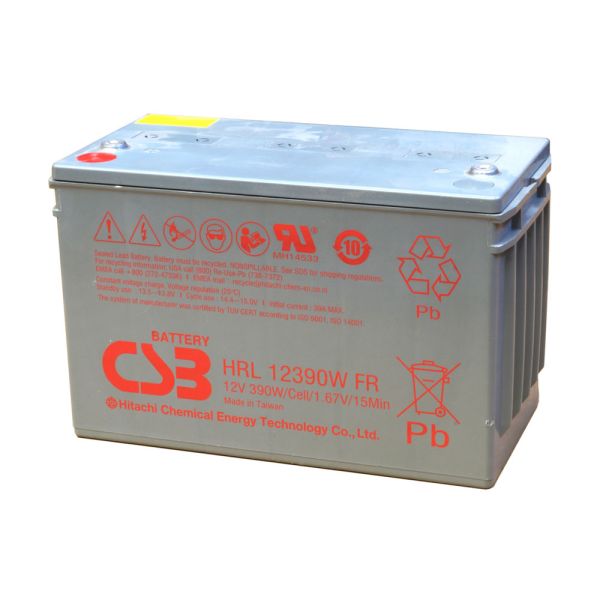

CSB HRL12390W (12V 112Ah) High-Rate & Long-Life VRLA AGM Battery

1-3 Day Delivery

1-3 Day Delivery

SKU:
HRL12390W
MPN:
HRL 12390W
£248.77 £207.31
The HRL Series is a high rate discharge and long-life battery with a standby life of up to 8-10 years. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.
Standard Delivery  (1 - 7 Days)

The HRL Series is a high rate discharge and long-life battery with a standby life of up to 8-10 years. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.

Features & Benefits:

  • Battery Type: VRLA Sealed Lead Acid Battery
  • Voltage: 12V
  • Capacity: 390W
  • Weight: 33Kg
  • Length: 343mm
  • Width: 170mm
  • Height: 217mm
  • Terminal: M6 internal thread
  • Low self-discharge rate and long life
  • Safe, low resistance with high energy output
  • Flame retardant ABS container with UL 94V-0 rating
  • Standby use
  • High rate discharge construction
  • Deep discharge recoverability
  • Strictly tested by patented computer charge/discharge system
  • ISO9001, 14001, OHSMS 18001 certified
  • UL recognized components under UL 1989 (file number MH14533)
  • Complies with IATA/ICAO Special Provision A67 for air transport
  • Classified per MG Amendment 27 as a non-hazardous material for water transport
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport

Applications

Standby Use:

  • UPS power supplies
  • Workstation UPS
  • Emergency lighting equipment
  • Precision instrument backup power
  • Fire alarms and security systems
  • Communications and electric equipment
  • Office computers, processors and other office automation equipment
  • Robots, control equipment and other factory automation equipment
  • Emergency power supplies in power generation plants and substations
  • Telecommunications
  • Various telemeter equipment

Solar Cell Power Generation:

  • Street lighting
  • Portable power supply
  • Water pumping stations
  • Rural power systems

Specification

Cells Per Unit6
Voltage Per Unit12 V
Capacity390W @15 minute-rate to 1.67V per cell @25 (77°F)
WeightApprox. 33.0kg (72.73 lbs)
Maximum Discharge Current800A(5sec)
Internal ResistanceApprox. 3.0 mΩ
Operating Temperature RangeDischarge: -15~50(5°F~122°F)
Charge: -15~40(5°F~104°F)
Storage: -15~40(5°F~104°F)
Nominal Operating Temperature Range25±3 (77°F±5°F)
Float Charging Voltage13.5 to 13.8 VDC/unit Average at 25 (77°F)
Recommended Maximum Charging Current Limit39A
Equalization and Cycle Service14.4 to 15.0 VDC/Unit Average at 25(77°F)
Self DischargeIt should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25
TerminalI2-Thread lead alloy recessed terminal to accept M6 bolt
Container MaterialPolypropylene(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request.

Specification Sheet
